Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Right Front Window Control Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

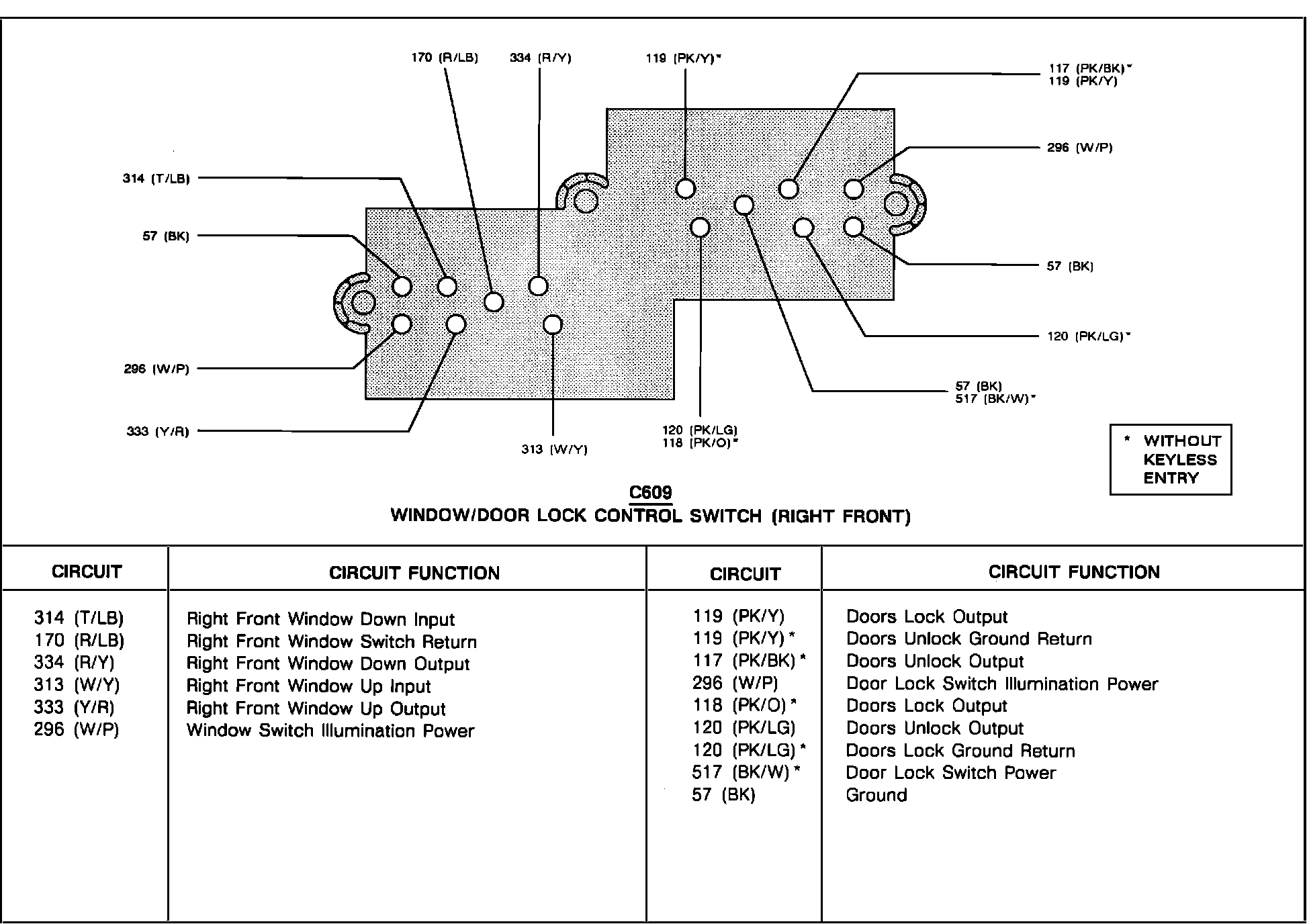

Right Front Window Control Switch
Connector Faces/Pinout Charts:
