Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

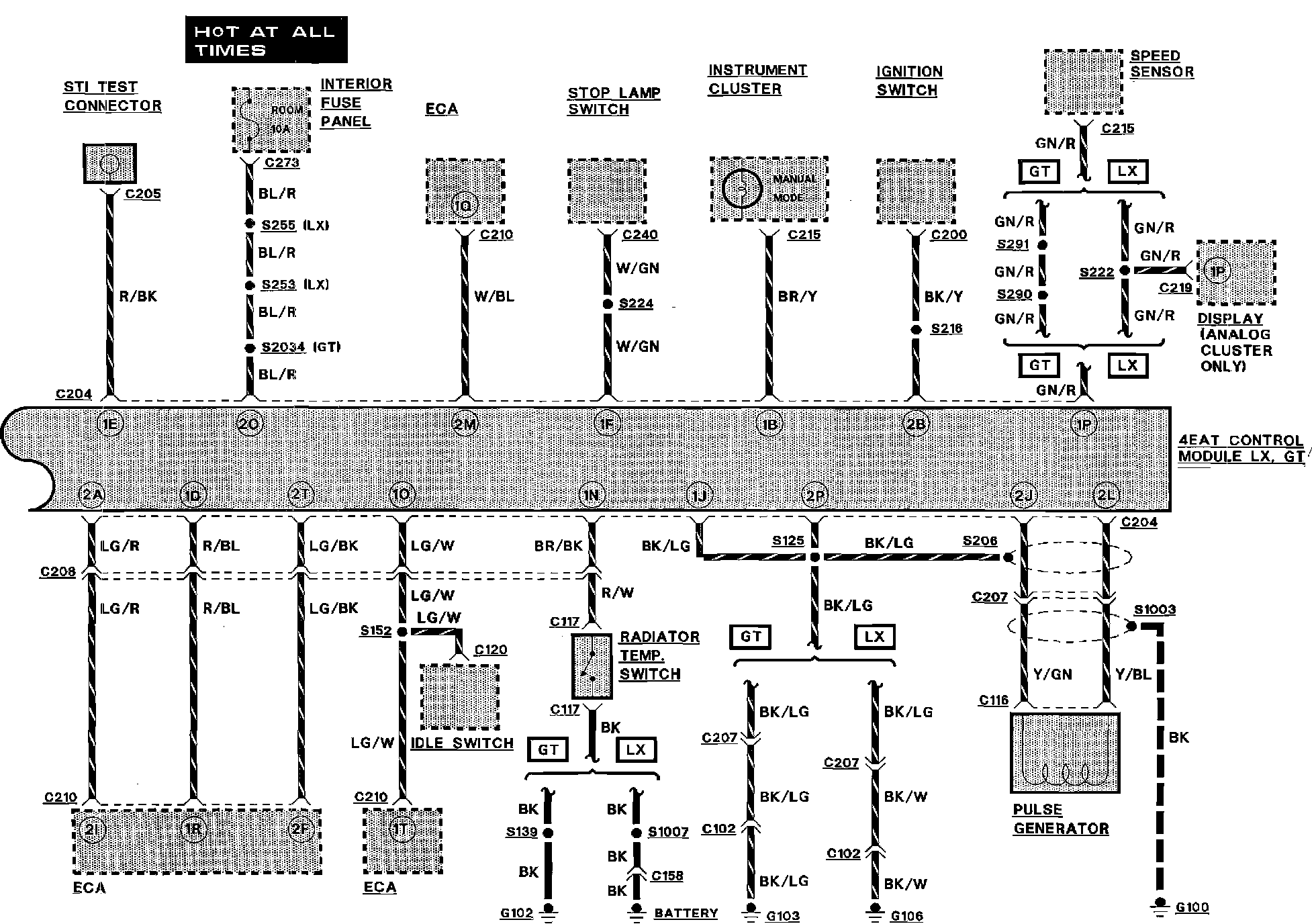

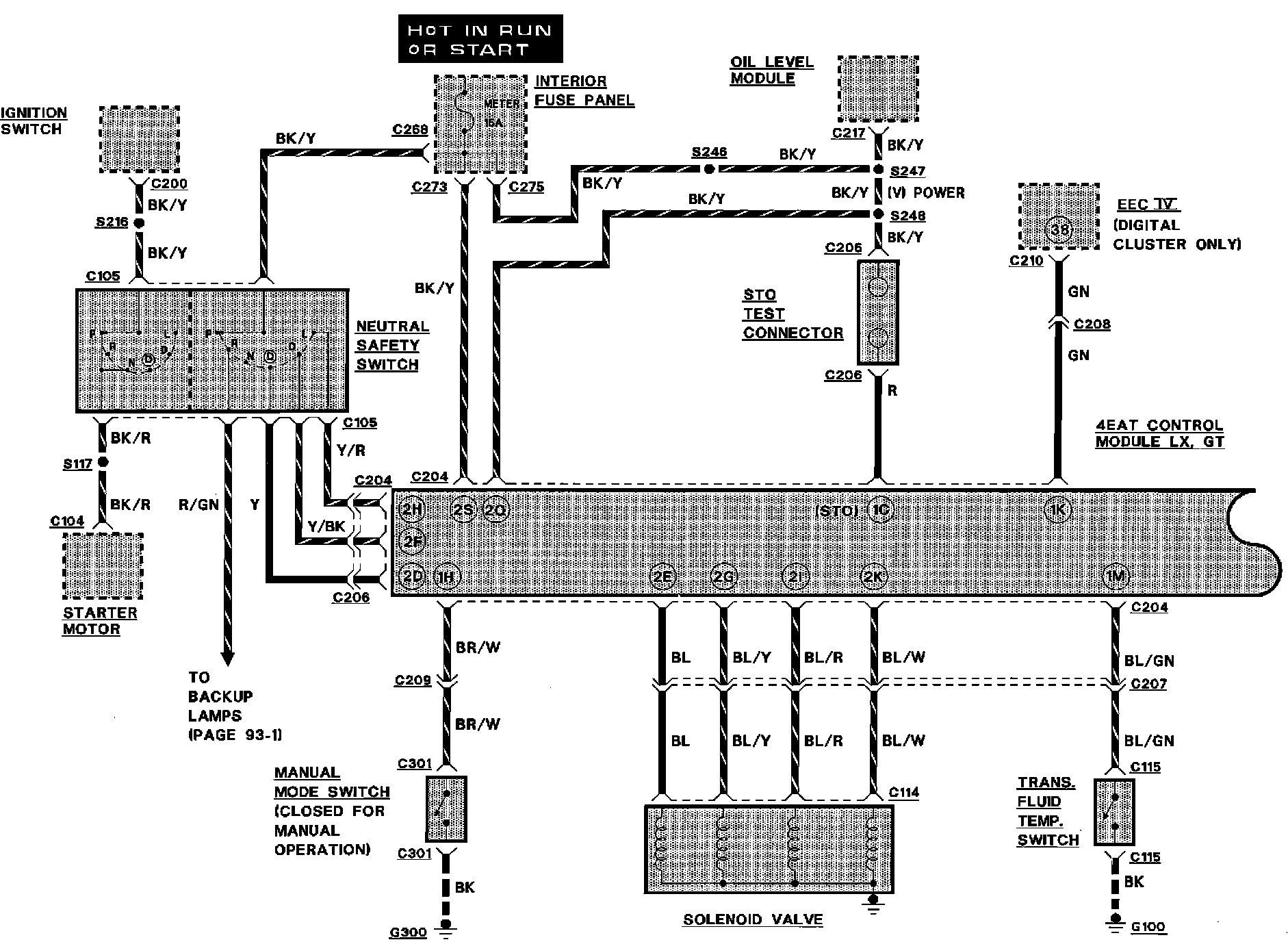

Transmission Control Systems

Engine Controls:



Transmission Controls:
