Engine Compartment Fuse Box

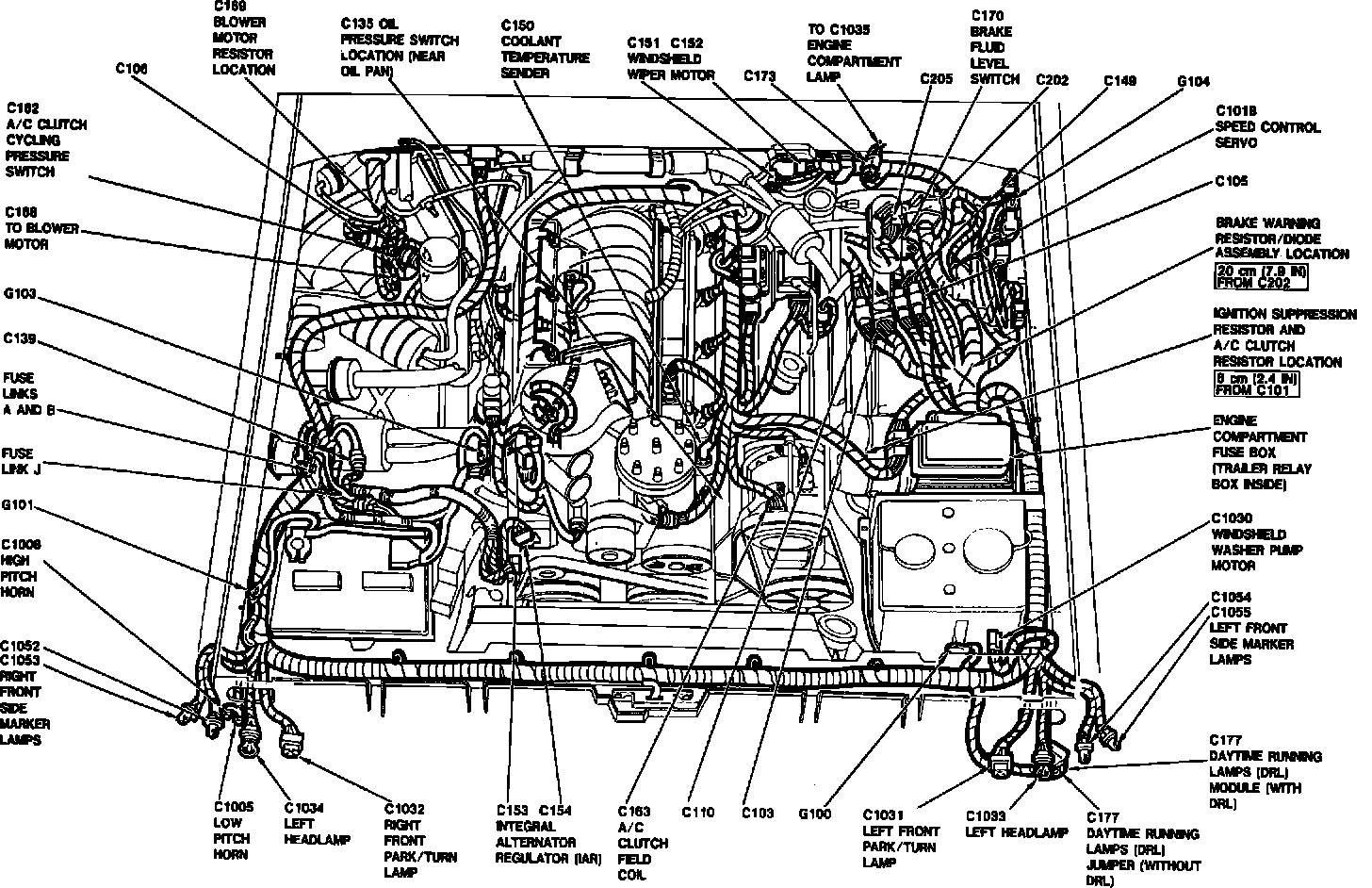

Engine Compartment Components.:




LH Side Of Engine Compartment, On Top Of Front Wheelwell

Applicable to: 1992 4.9L/6-300

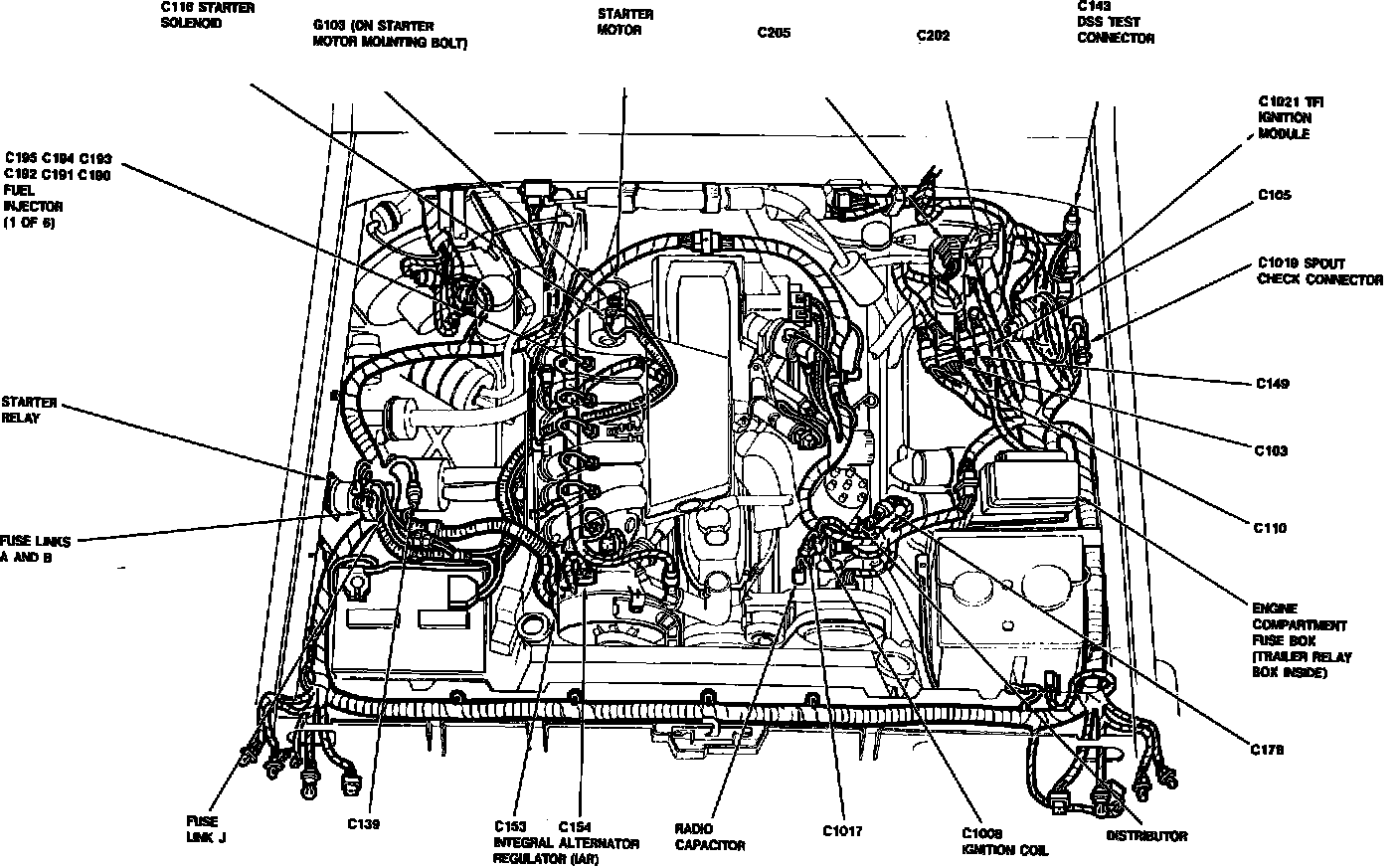

Engine Compartment Components.:




LH Side Of Engine Compartment, On Top Of Front Wheelwell

Applicable to: 1992 5.0L/V8-302 & 5.8L/V8-350

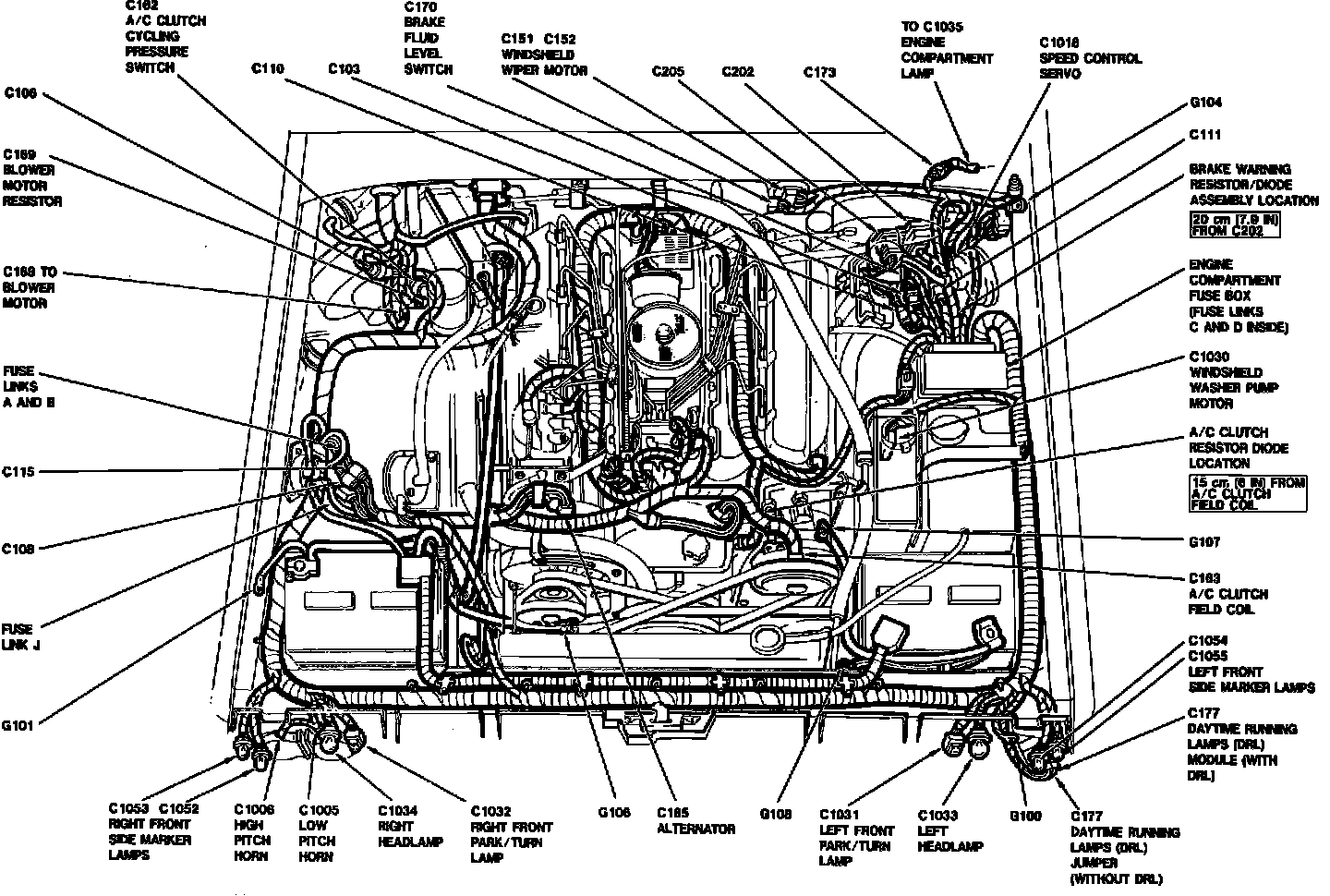

Engine Compartment Components.:




LH Side Of Engine Compartment, On Top Of Front Wheelwell

Applicable to: 1992 7.3L/V8-444

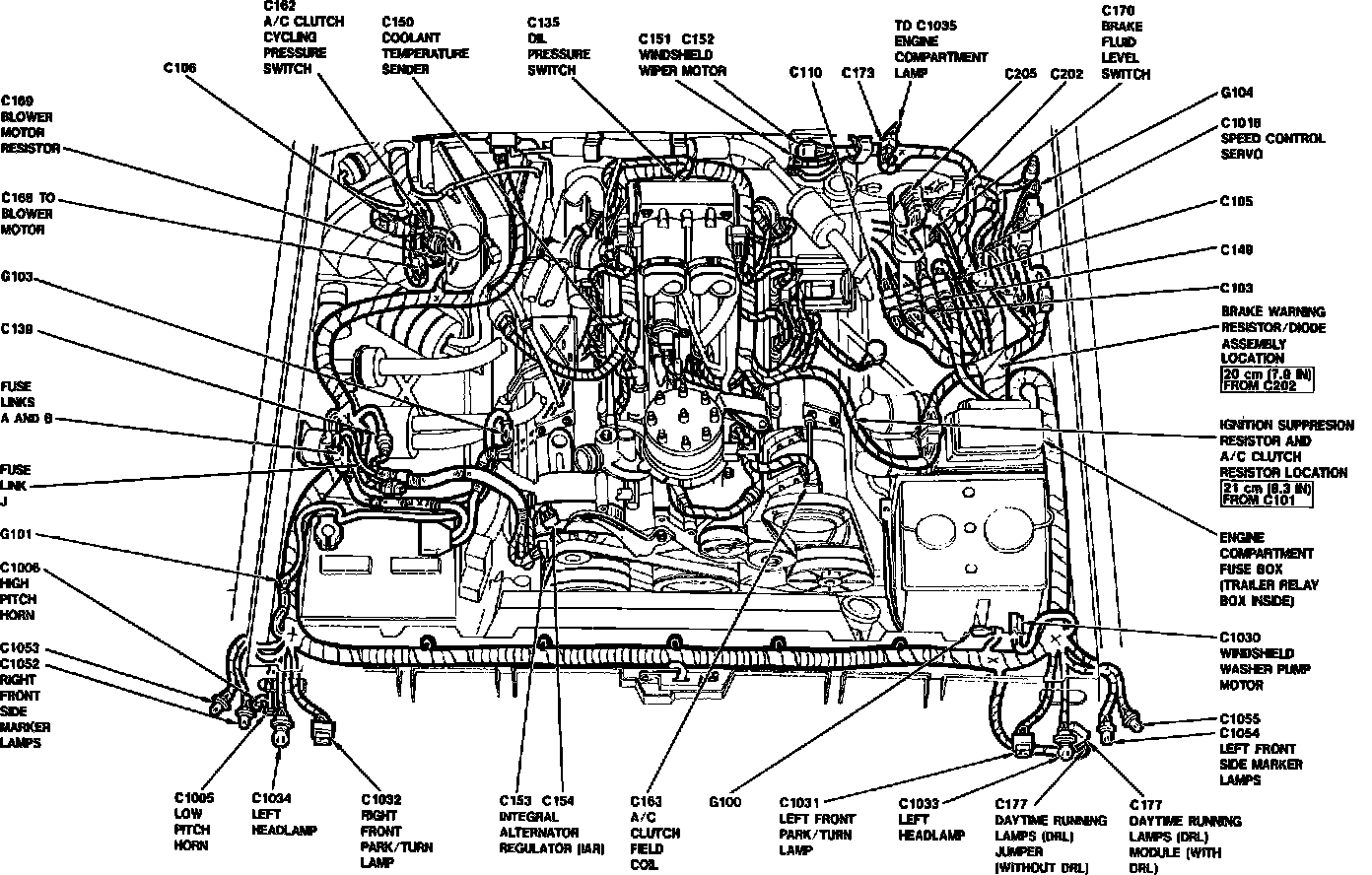

Engine Compartment Components.:




LH Side Of Engine Compartment, On Top Of Front Wheelwell

Applicable to: 1992 7.5L/V8-460
