4 Door
Component Location:

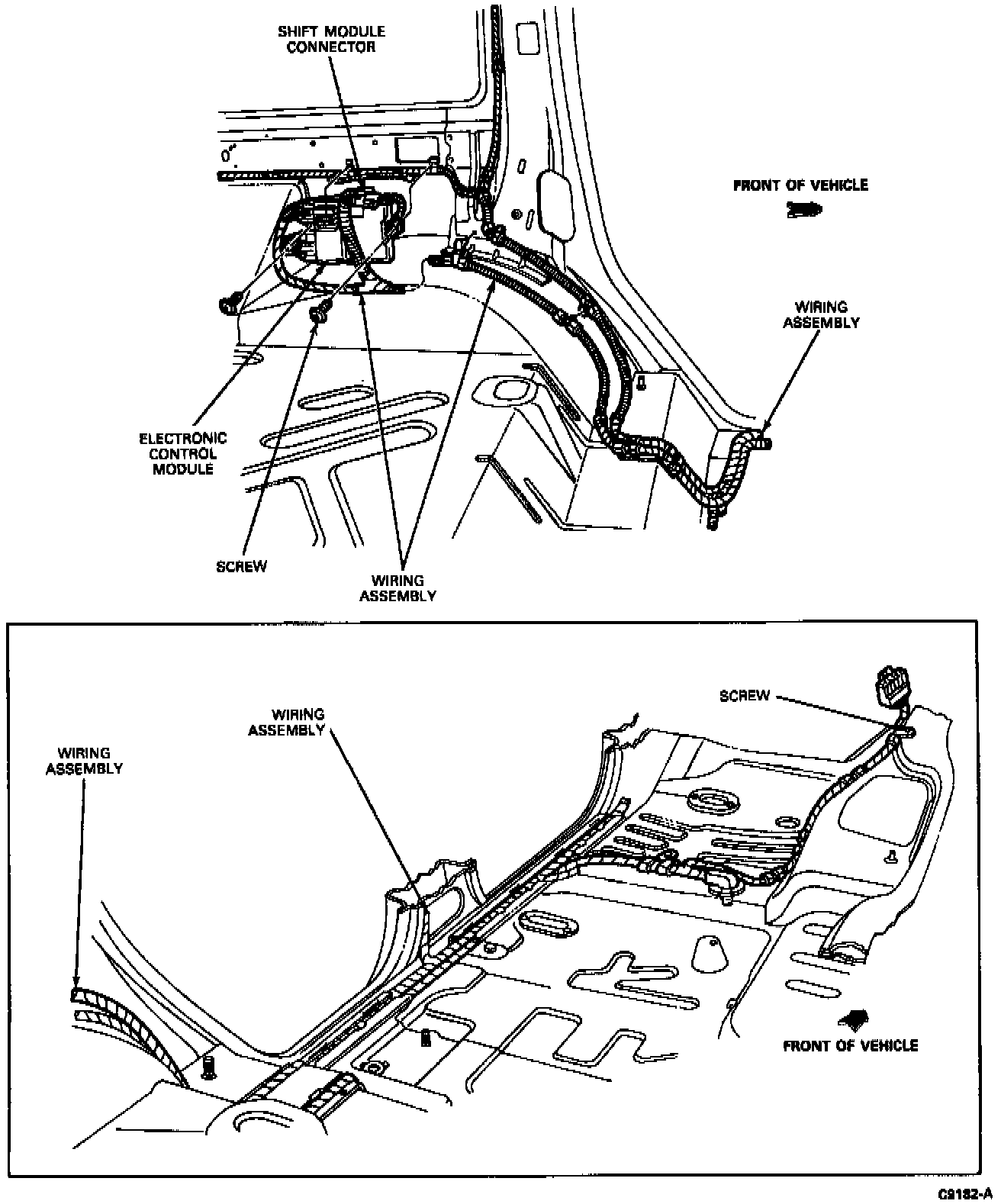

Electronic Control Module Locaiton (4-Door):
The Electronic Shift Control Module is located at the rear of vehicle, over the left wheel well.
