1992
>>
Explorer 4D Utility, RWD, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Wiring Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams
Fig 1: System Wiring Diagram (Aerostar)
Courtesy of FORD MOTOR CO.

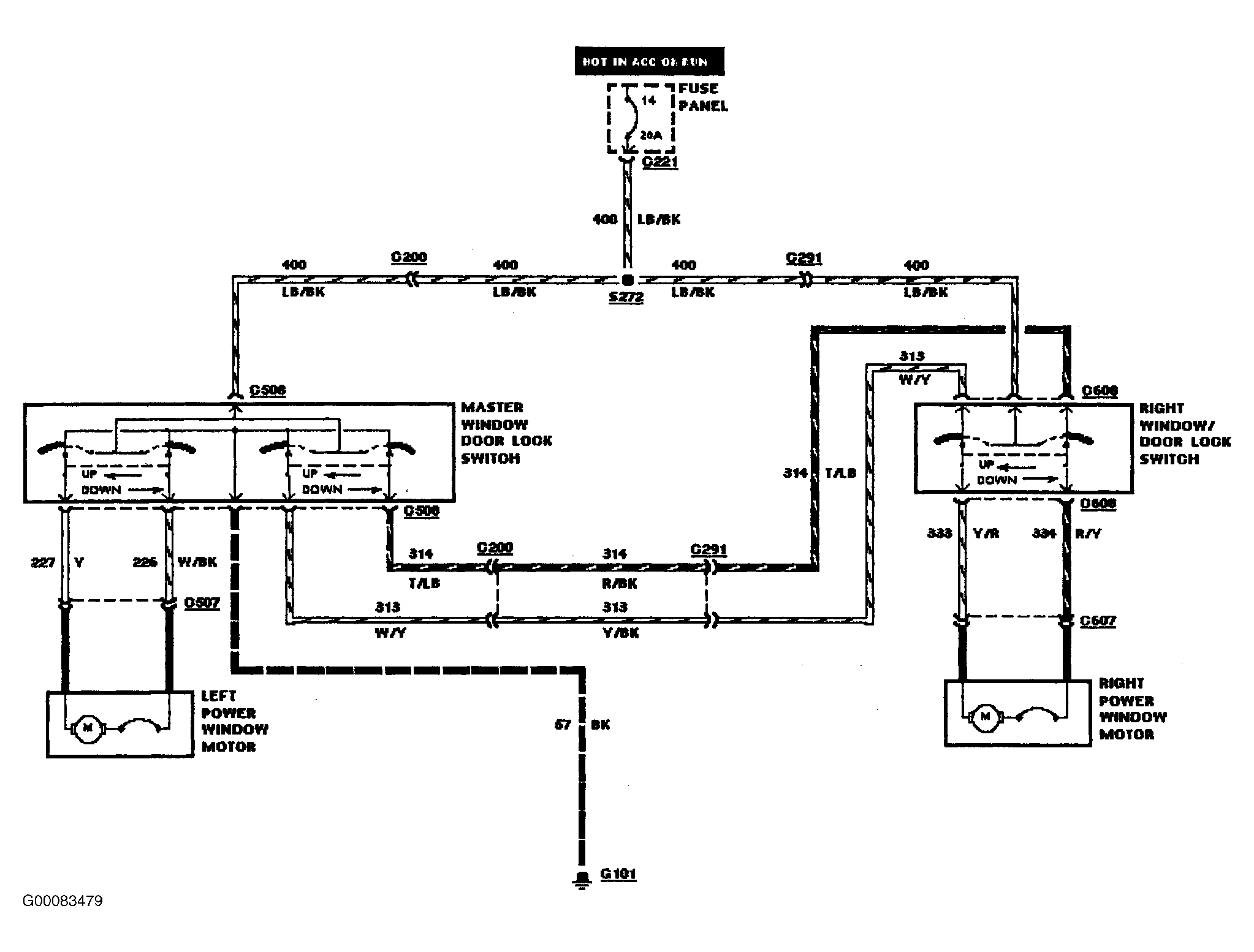

Fig 2: System Wiring Diagram (Explorer 2-Door)
Courtesy of FORD MOTOR CO.
Fig 3: System Wiring Diagram (Explorer 4-Door)
Courtesy of FORD MOTOR CO.
Fig 4: System Wiring Diagram (Ranger)
Courtesy of FORD MOTOR CO.
