Ignition Switch: Testing and Inspection


COMPONENT TESTING PROCEDURE

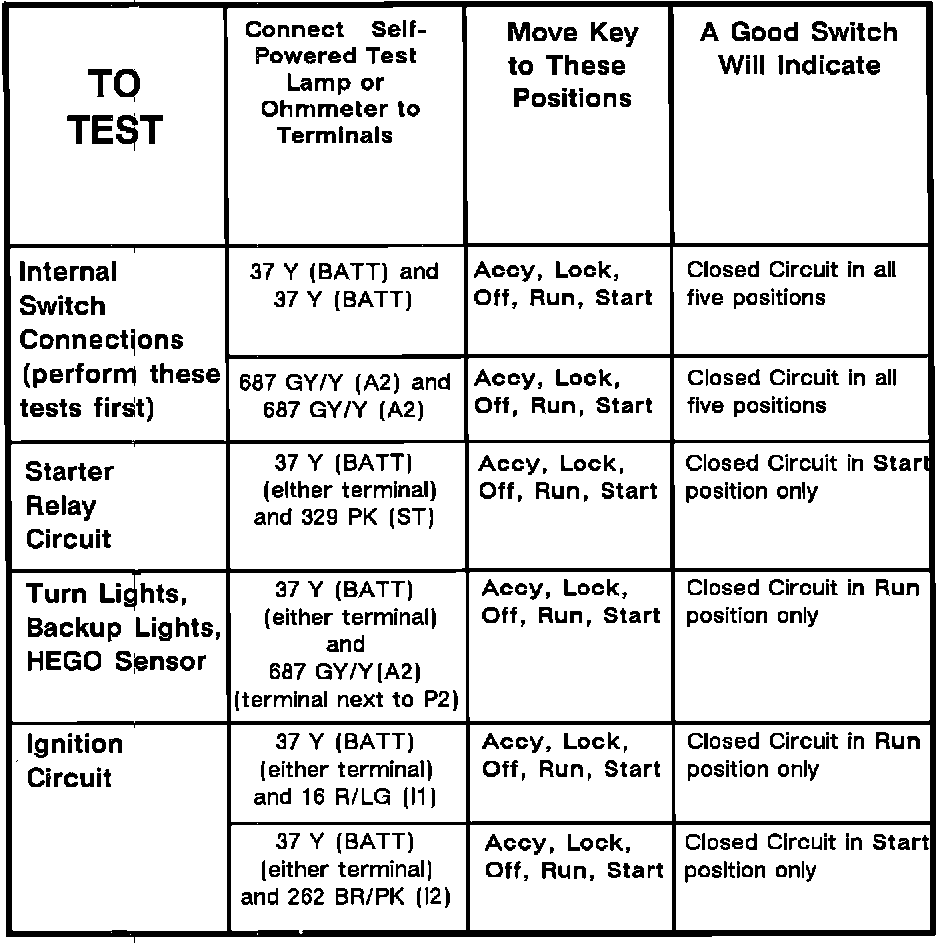

Component Testing Procedure:




Component Testing Procedure:







TERMINAL IDENTIFICATION


Terminal Locations On Switch:






SCHEMATIC


Schematic:
