Fuse Block: Application and ID


*** UPDATED BY TSB # 9224B46, DATED 12/10/92

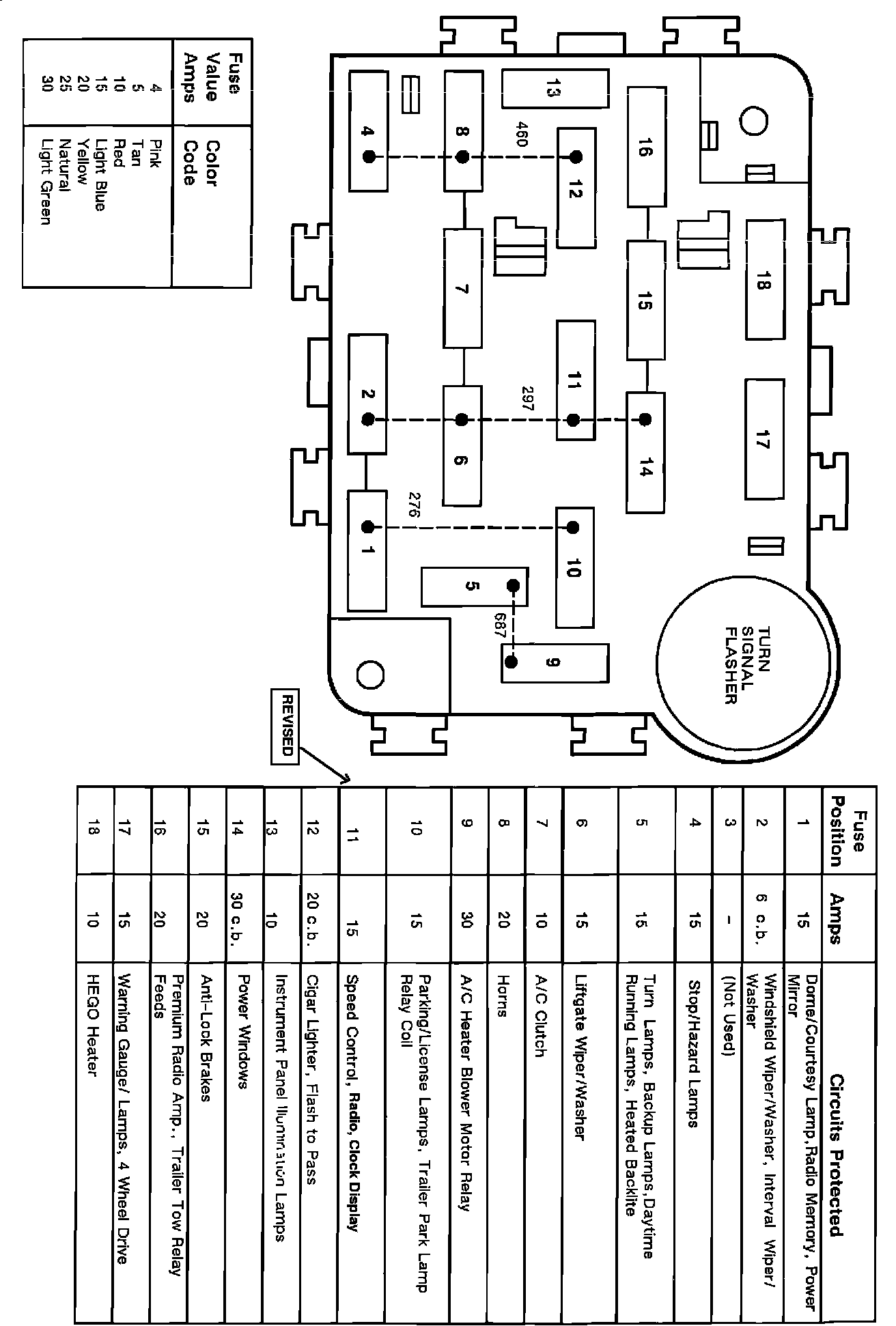

Instrument Panel Fuse Panel:
