Engine Controls - Tests W/Codes - 7.5L
>>
Diagnostic Trouble Code Reference Charts
>>
Diagnostic Trouble Code Reference Charts (2-Digit)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Trouble Code Reference Charts (2-Digit)

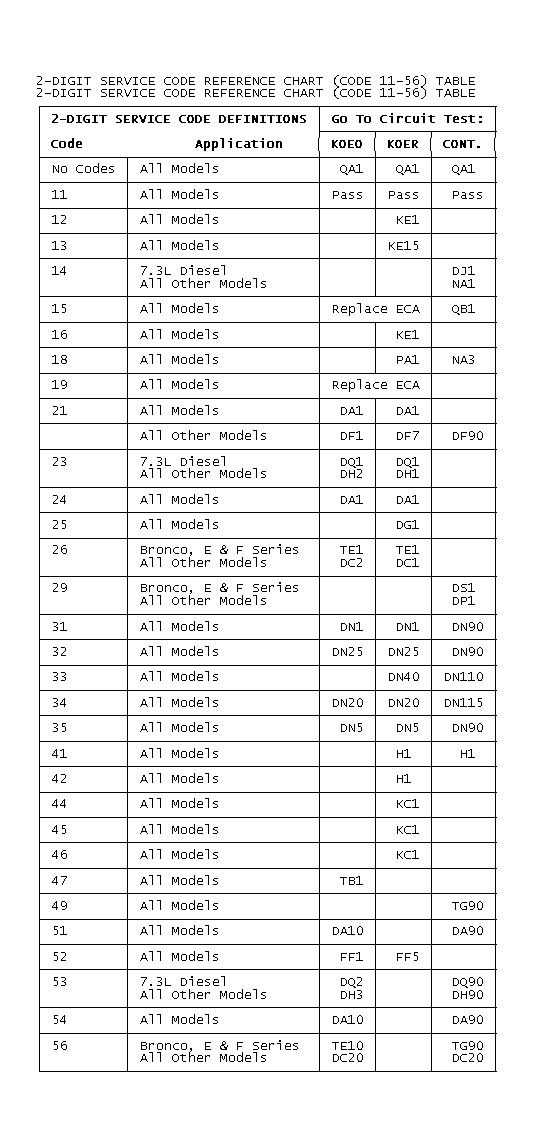

Fig 1: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODE 11-56)

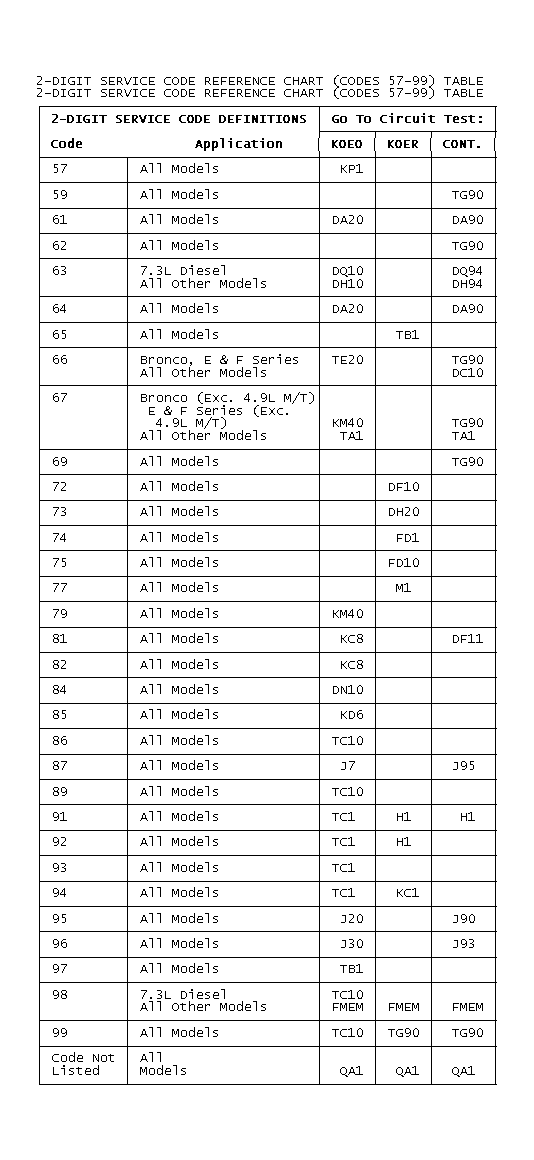

Fig 2: DIAGNOSTIC TROUBLE CODE REFERENCE CHART (CODES 57-99)
