Integrated Control Relay Module

Integral Relay Control Module (IRCM)

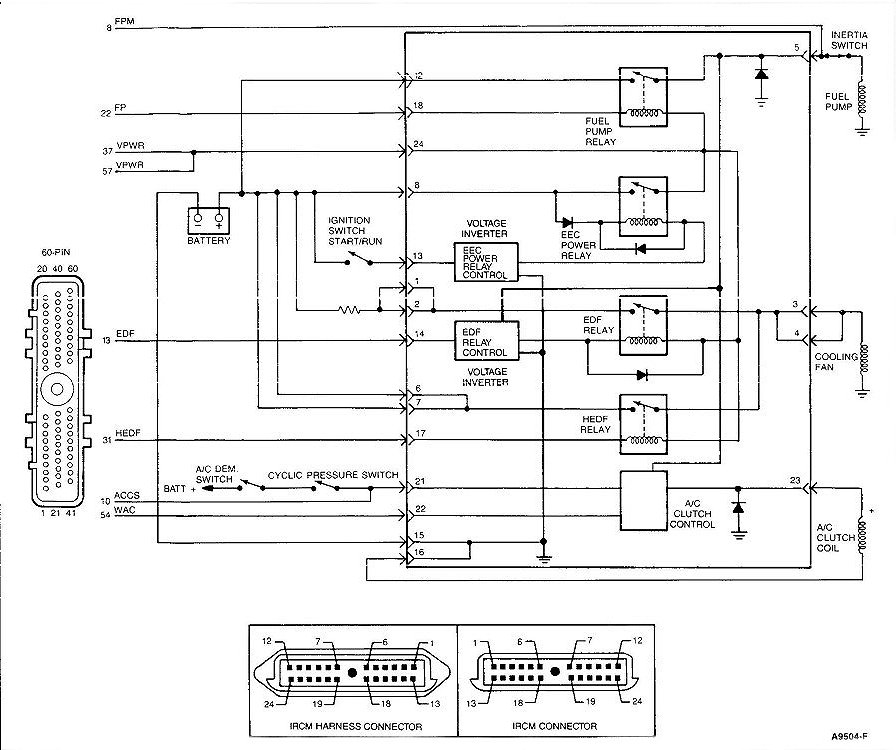

IRCM (3.0L):

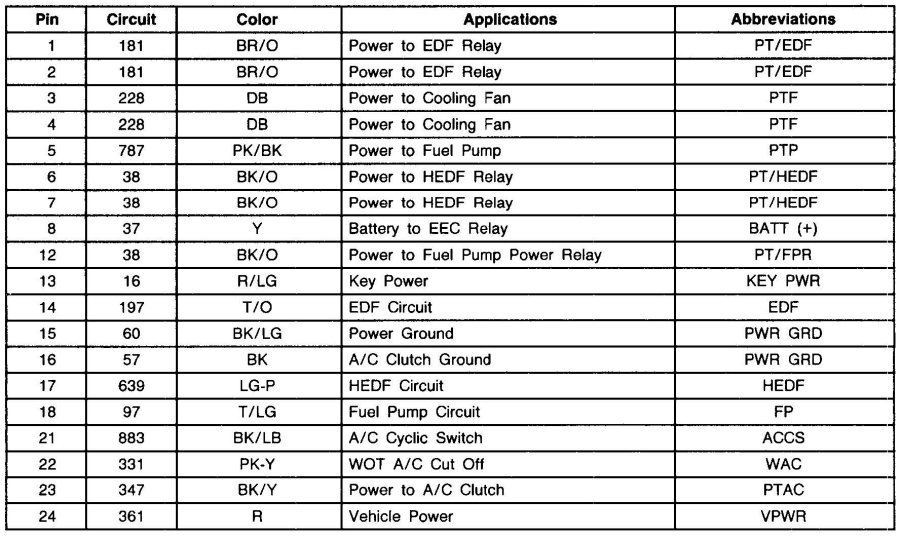

IRCM (3.0L) Pin Usage:

The Integral Relay Control Module (IRCM) interfaces with the EEC-IV processor to provide control of the cooling fan, A/C clutch, and the fuel pump.
