Multifunction Switch Continuity

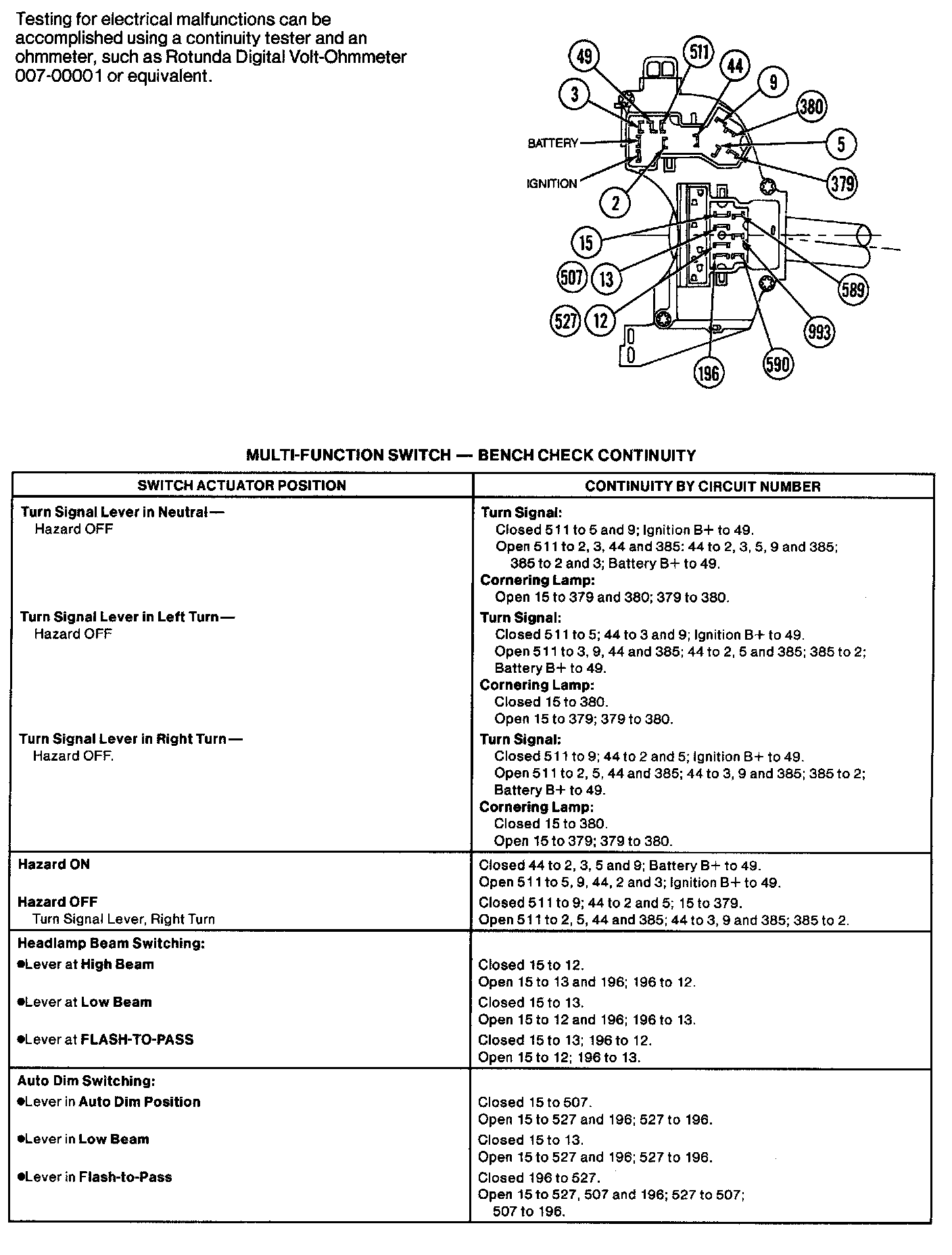

Switch Continuity

Testing for electrical malfunctions can be accomplished using a continuity tester and an ohmmeter, such as Rotunda Digital Volt-Ohmmeter 007-00001 or equivalent.
