EATC Control Module

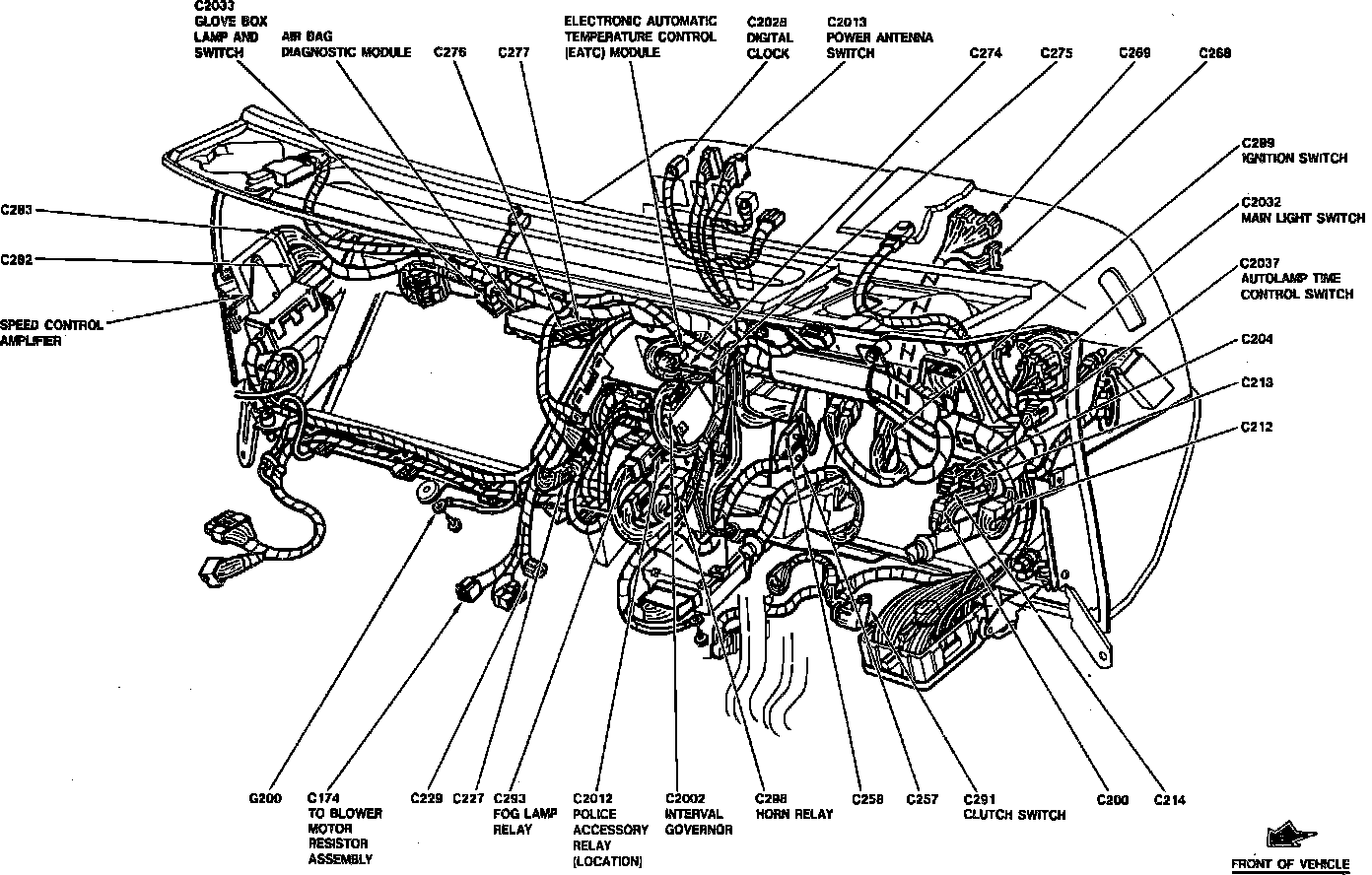

Instrument Panel Component Locations:
Center Of I/P
Body Component Locations.:
Center Of I/P
Applicable to: 1992 Sedan
