Integrated Relay Controller Module

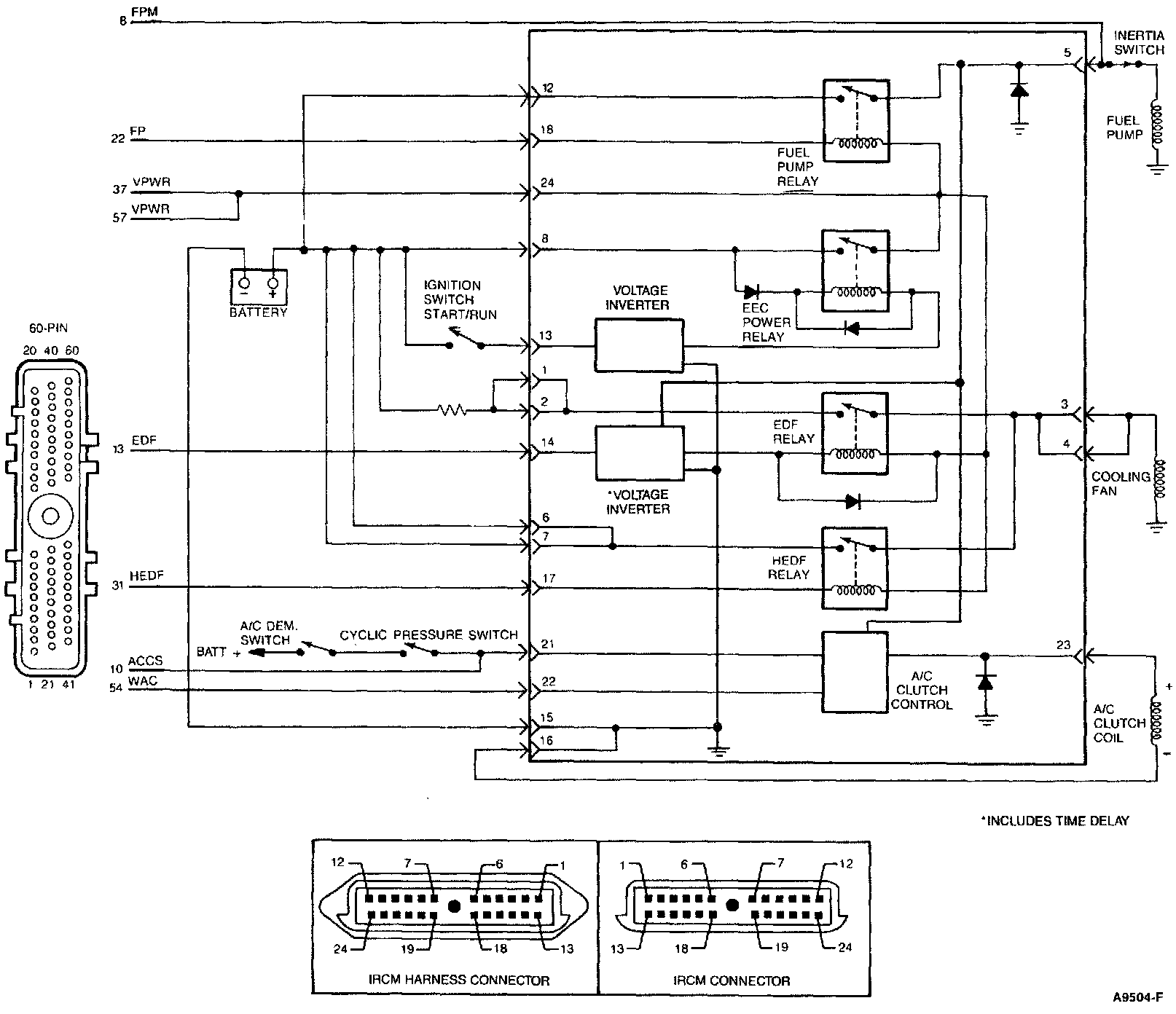

Cooling Fan Control System.:



Integrated Relay Control Module Pin Usage.:
