Ignition Timing Connector: Locations

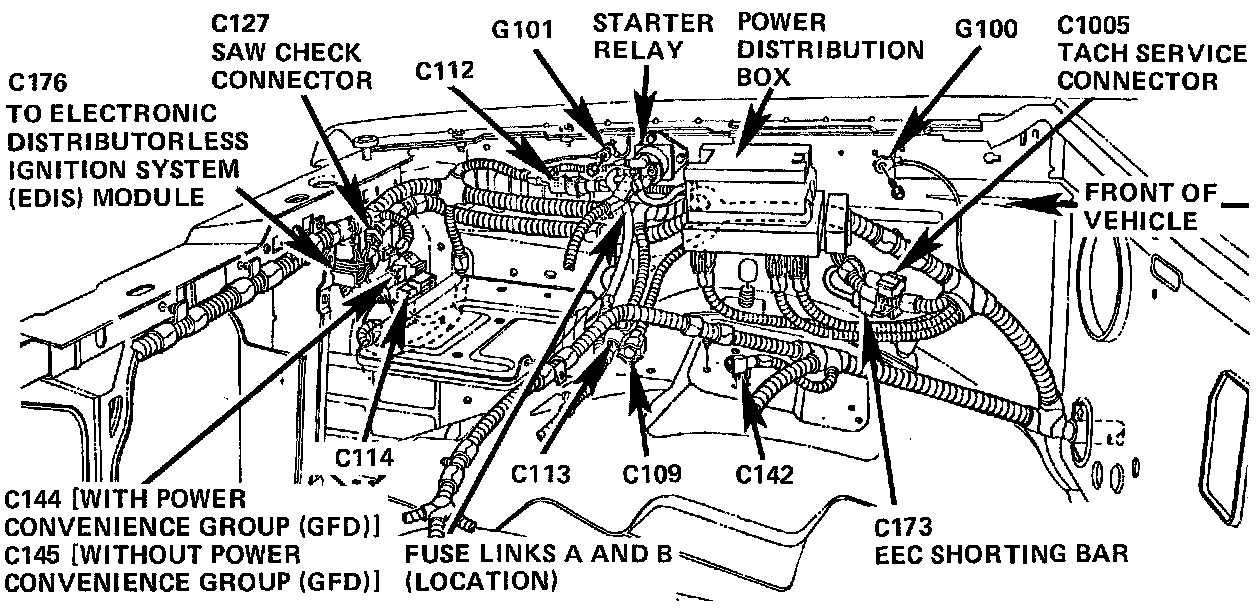

Component Location:




The SPOUT connector (SAW check connector C127) is located at the RH front of the engine compartment in front of the battery.
