M/T Technical Data

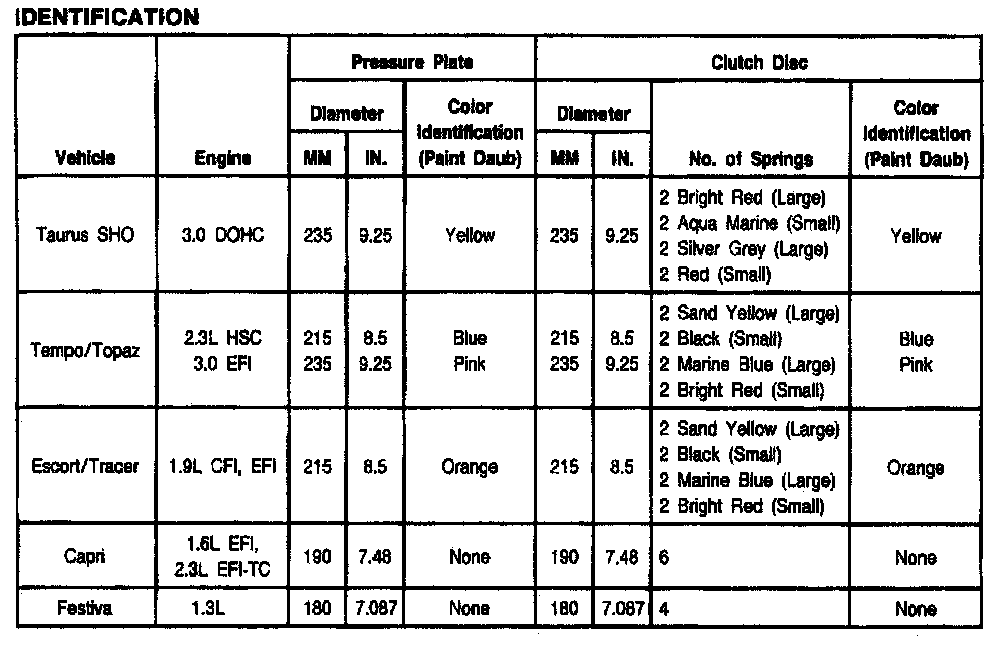

MTX (B) 5-spd M/T, Clutch/Pressure Plate (Escort/Tracer):





MTX (B) 5-spd M/T, Clutch Control (Probe):





MTX (B) 5-spd M/T, Gear Ratios (Probe):

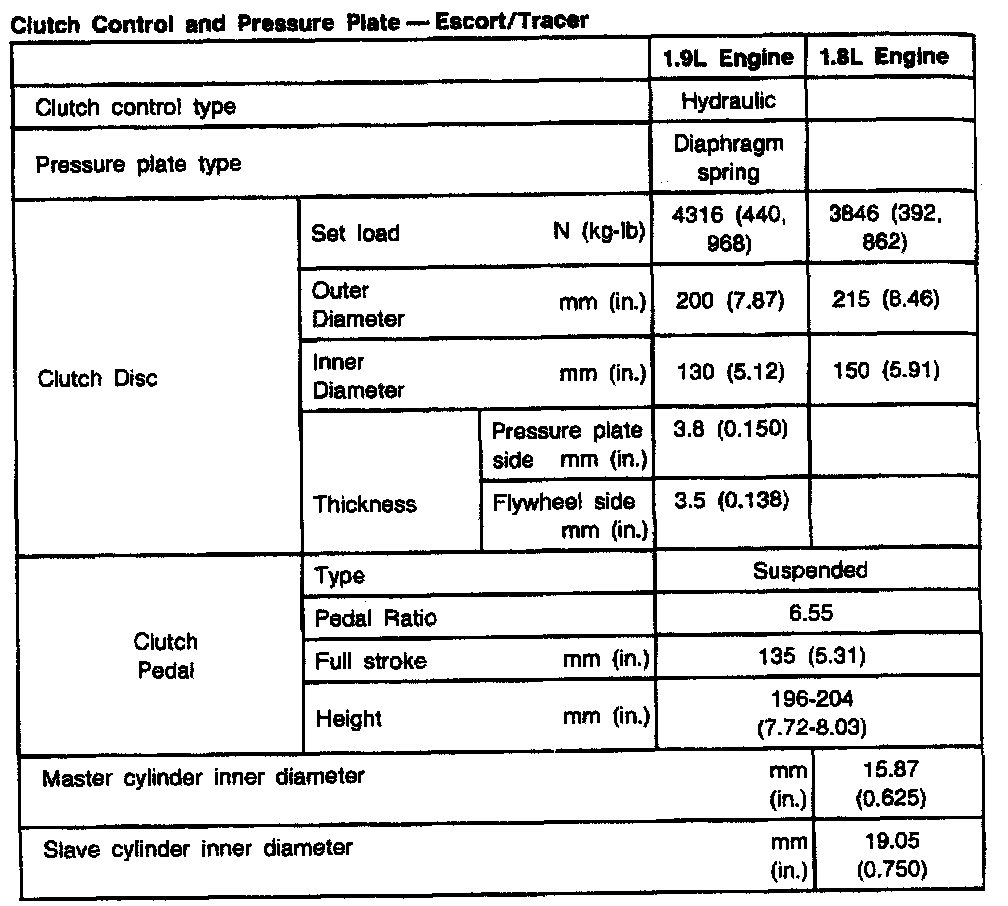

MTX (B) 5-spd M/T, Clutch Control/Pressure Plate (Escort/Tracer):
