Main Fuse Panel

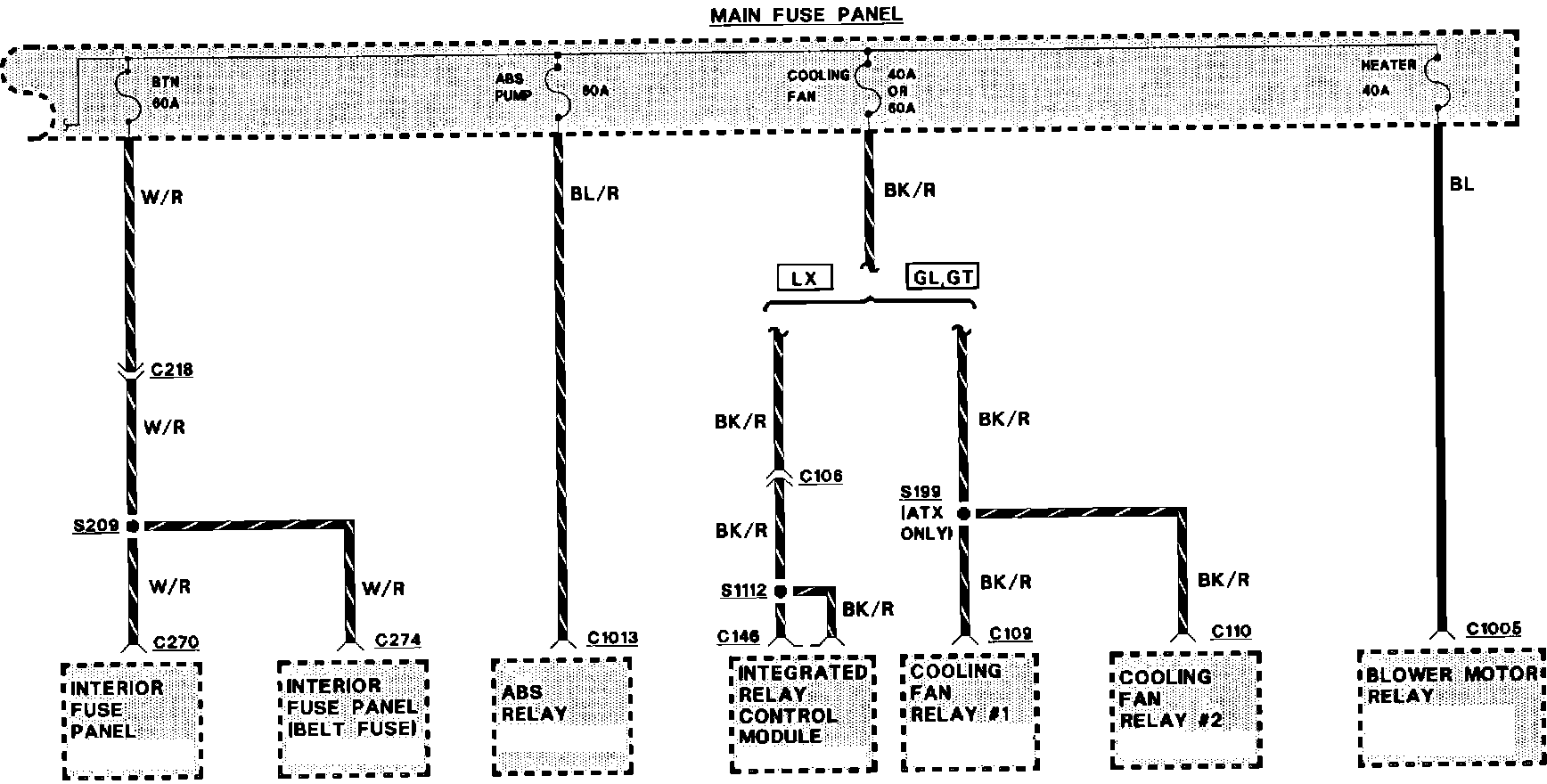

Power Distribution (Battery - Main Fuse Panel):

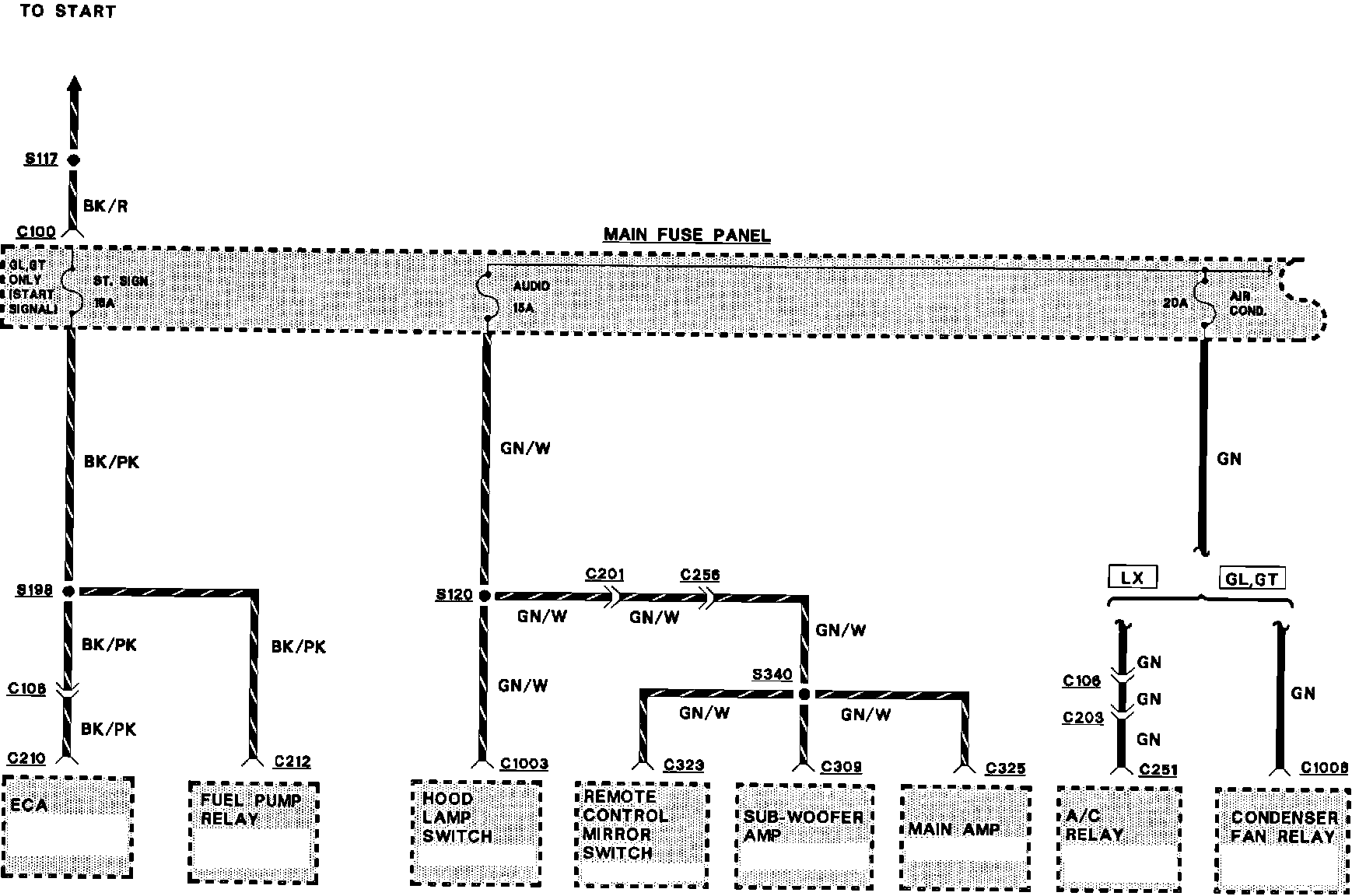

Power Distribution (Battery - Main Fuse Panel):

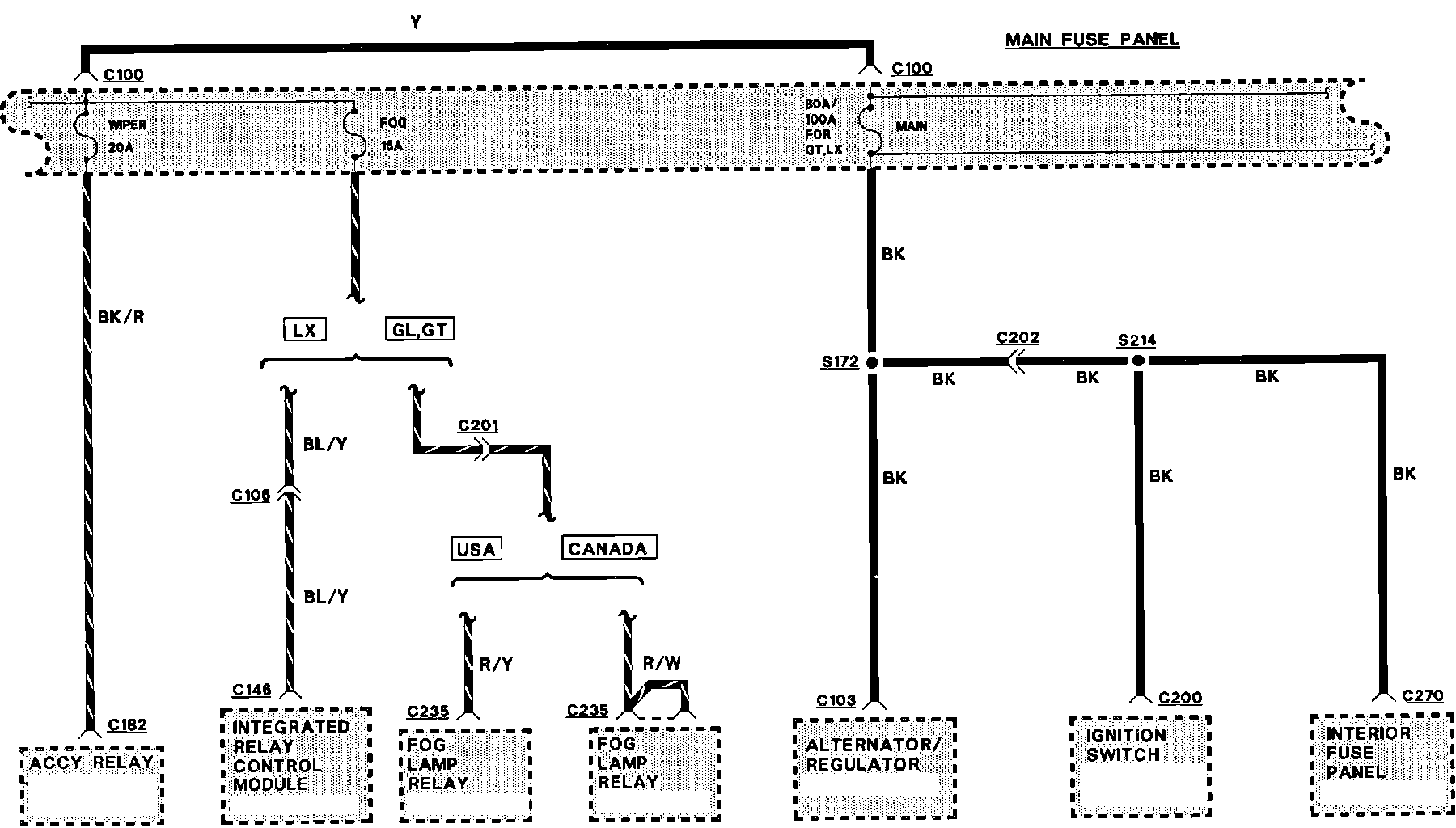

Power Distribution (Battery - Main Fuse Panel):

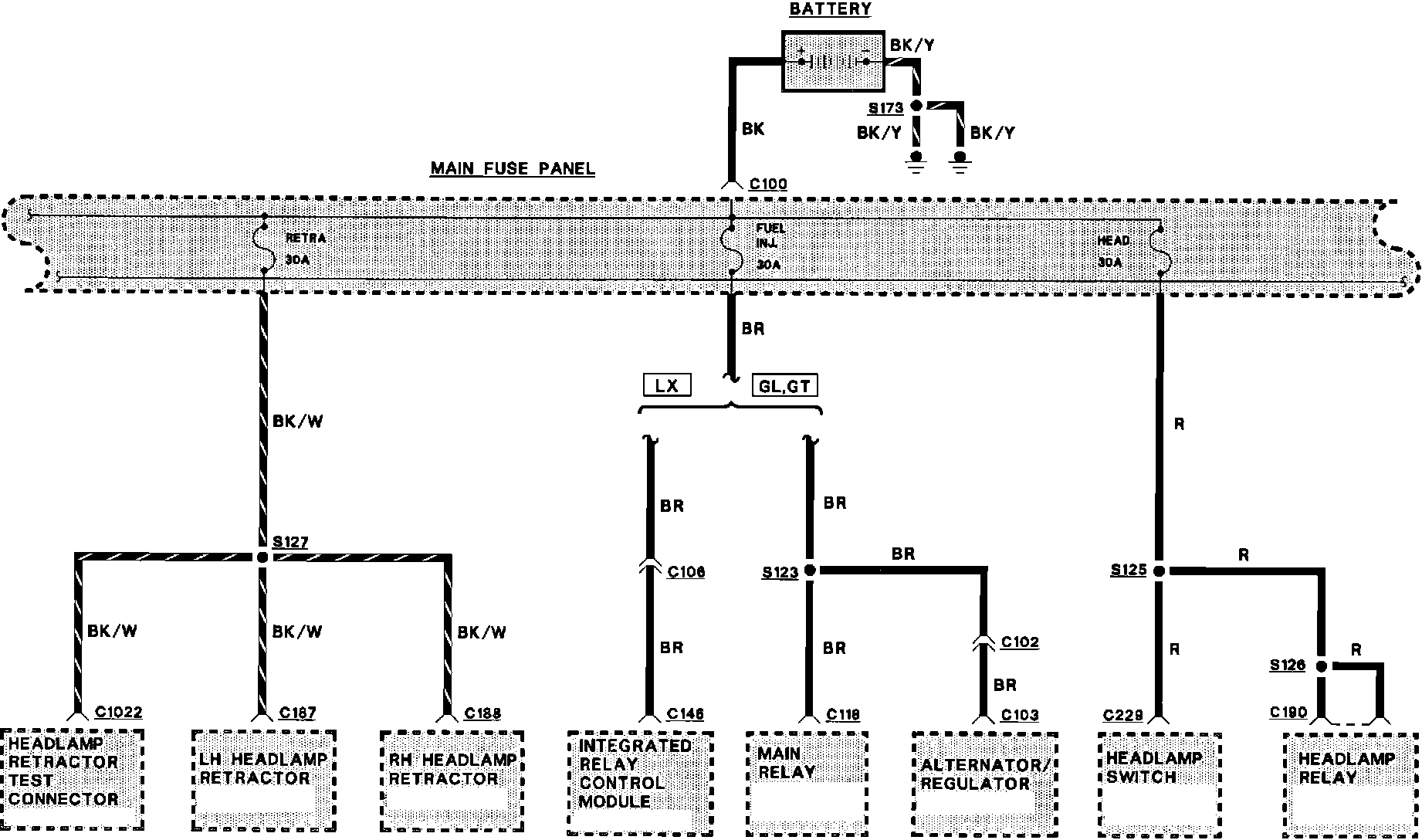

Power Distribution (Battery - Main Fuse Panel):
