2.2L Wiring Diagrams

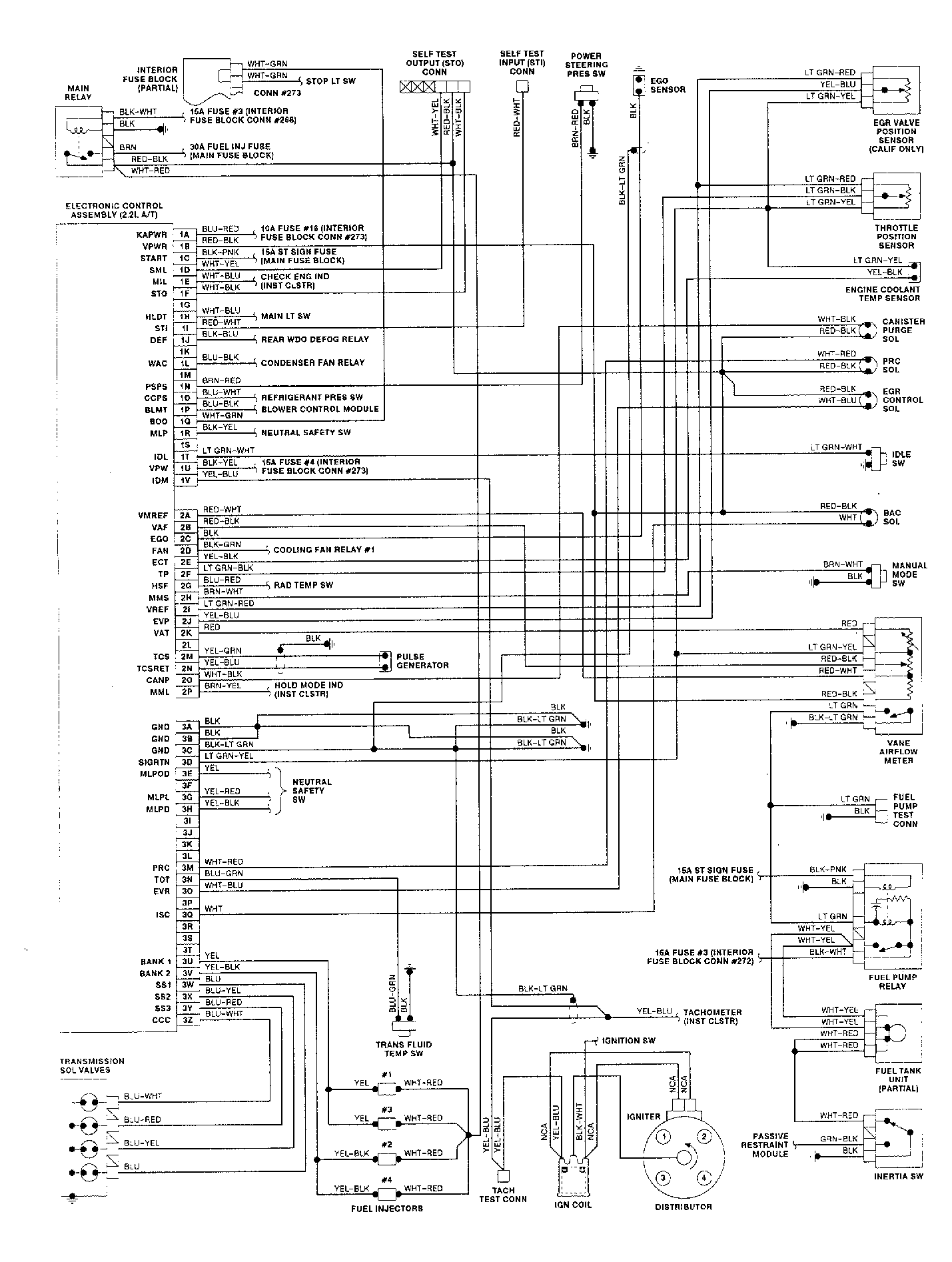

Fig 1: 2.2L Probe (Non-Turbo) EEC Wiring Diagram (Auto. Trans.)
G91A08204

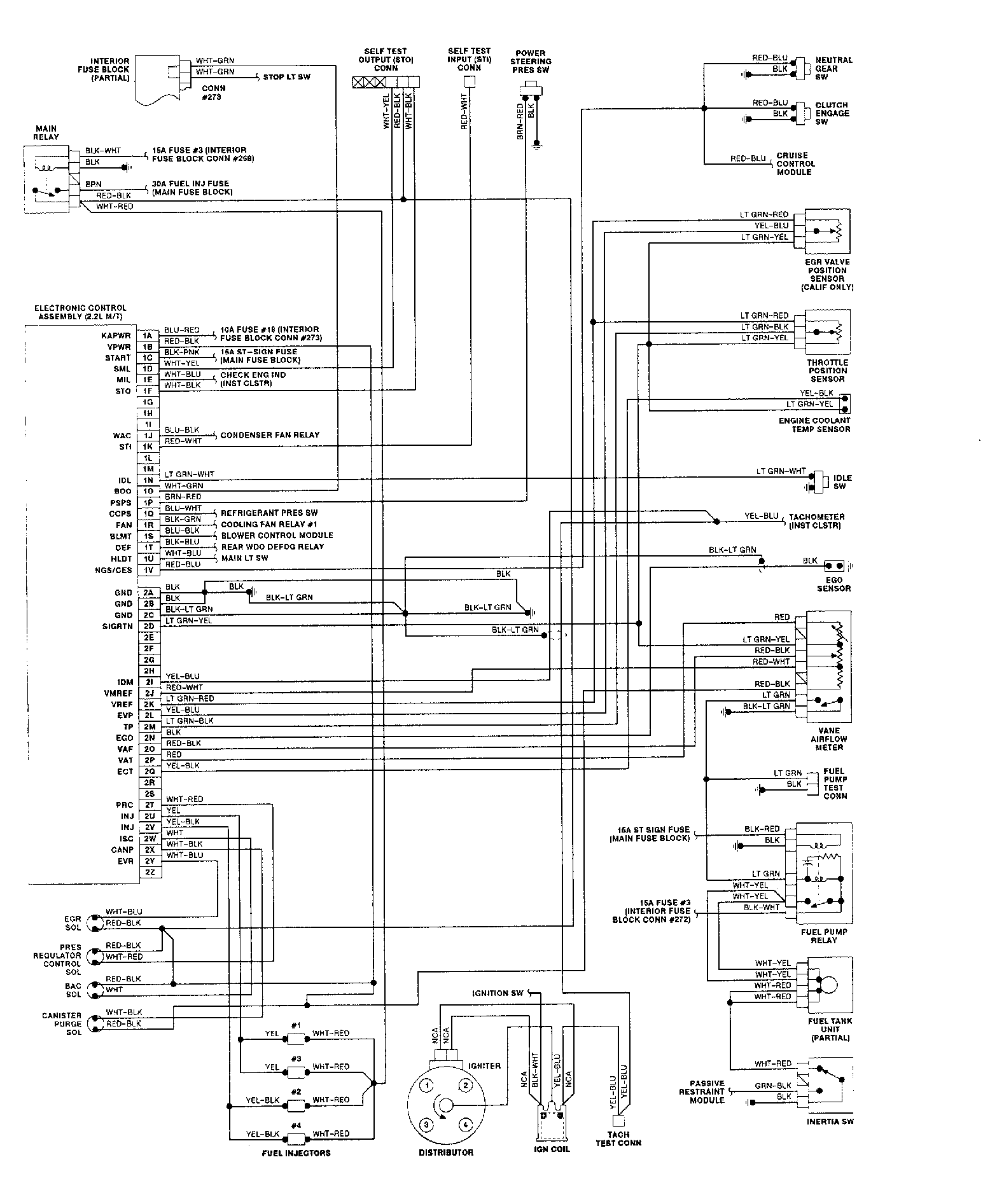

Fig 2: 2.2L Probe (Non-Turbo) EEC Wiring Diagram (Man. Trans.)
G91D08205

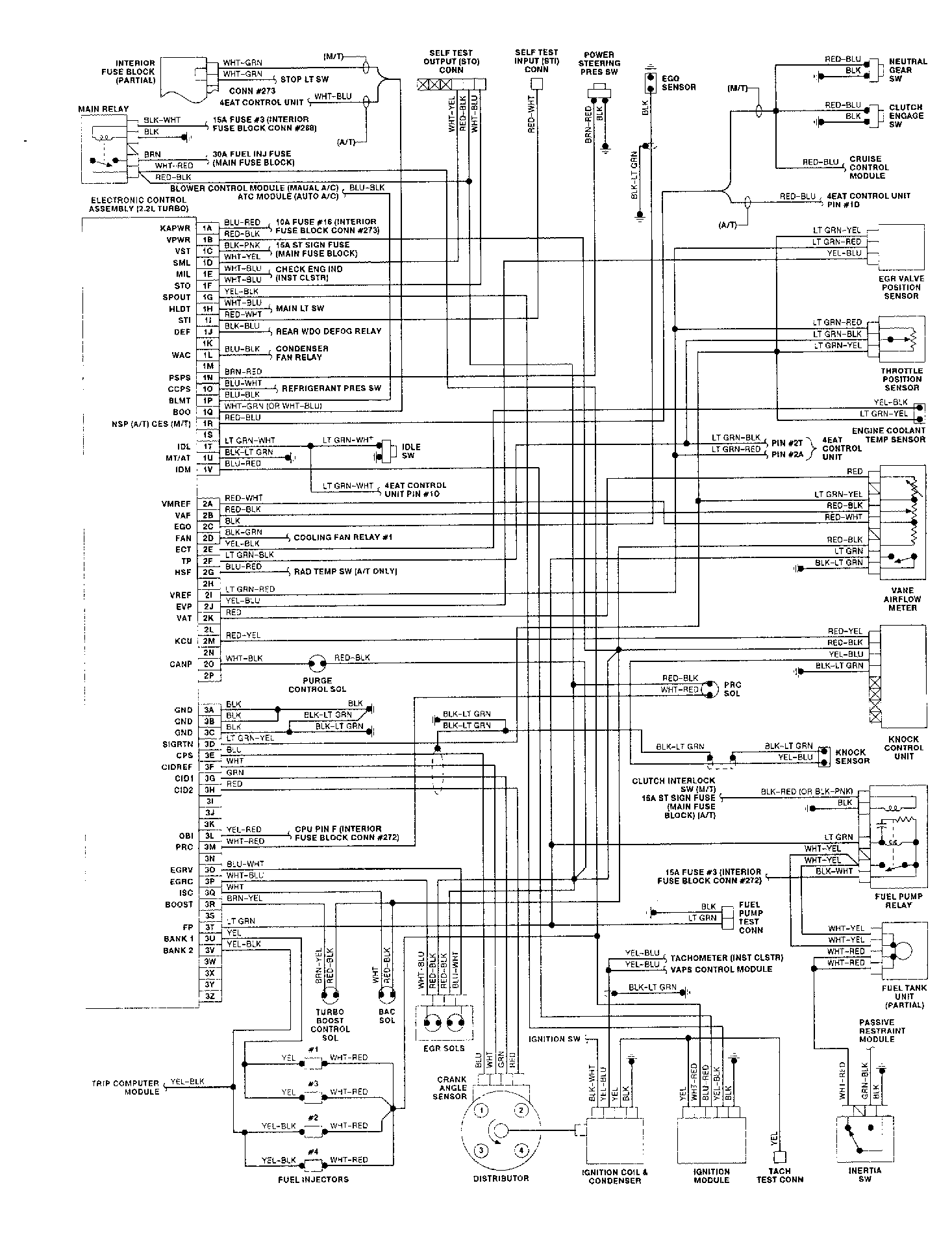

Fig 3: 2.2L Probe Turbo EEC Wiring Diagram
G91F08206
