Pinpoint Test J: Passive Restraint Module Check: Notes

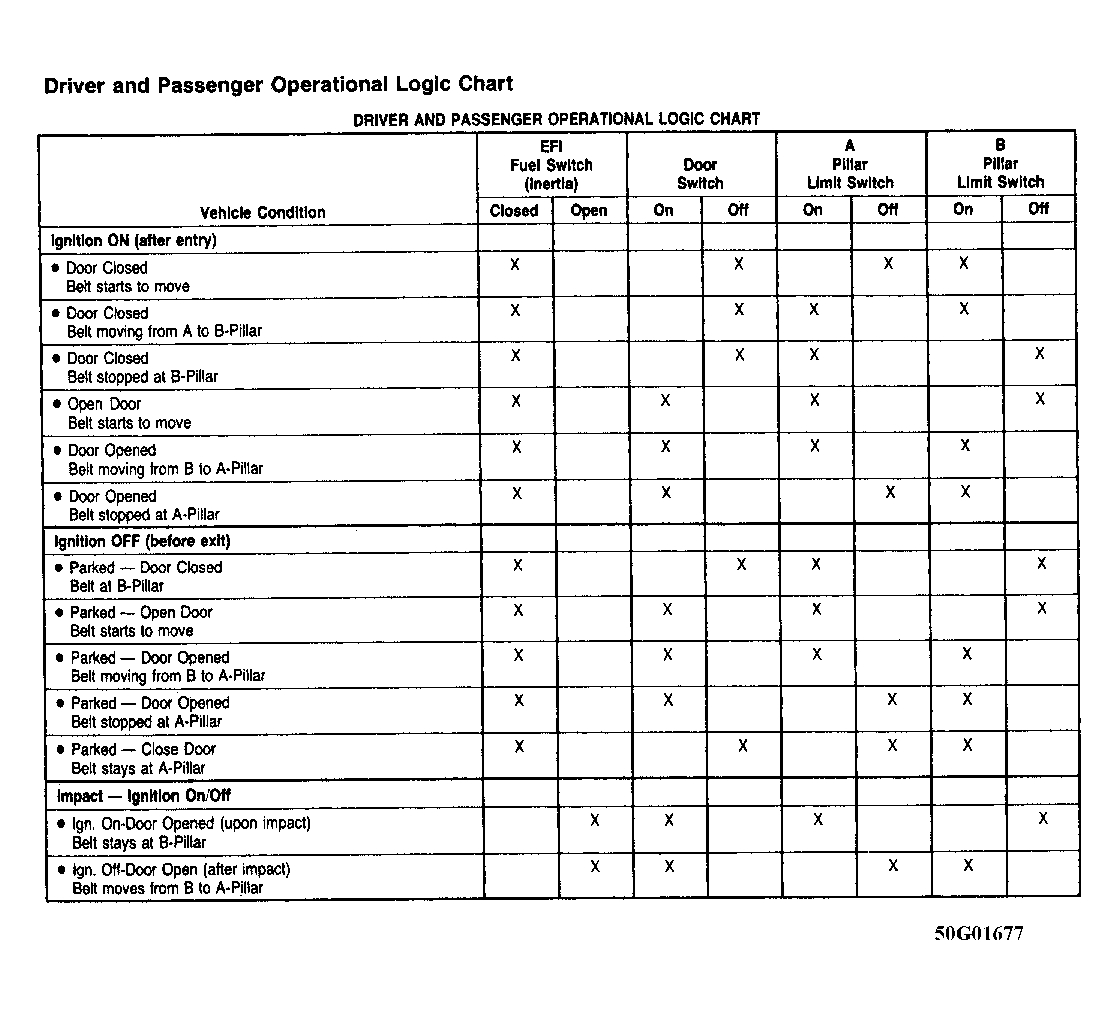

Fig 1: Driver & Passenger Operational Logic Chart
G50G01677Courtesy of FORD MOTOR CO.
