Connector Views

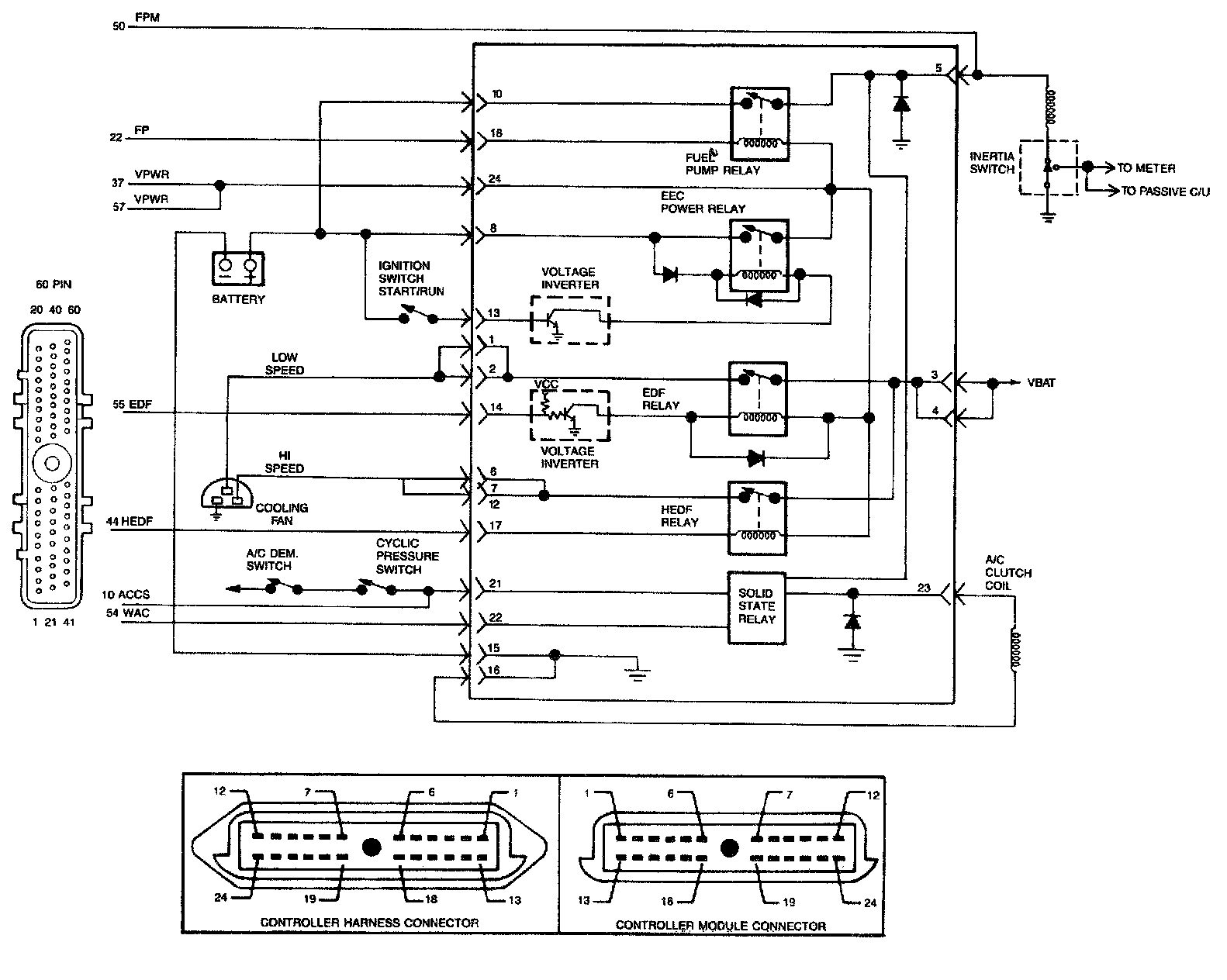

Integrated Relay Controller Module (IRCM) Schematic:

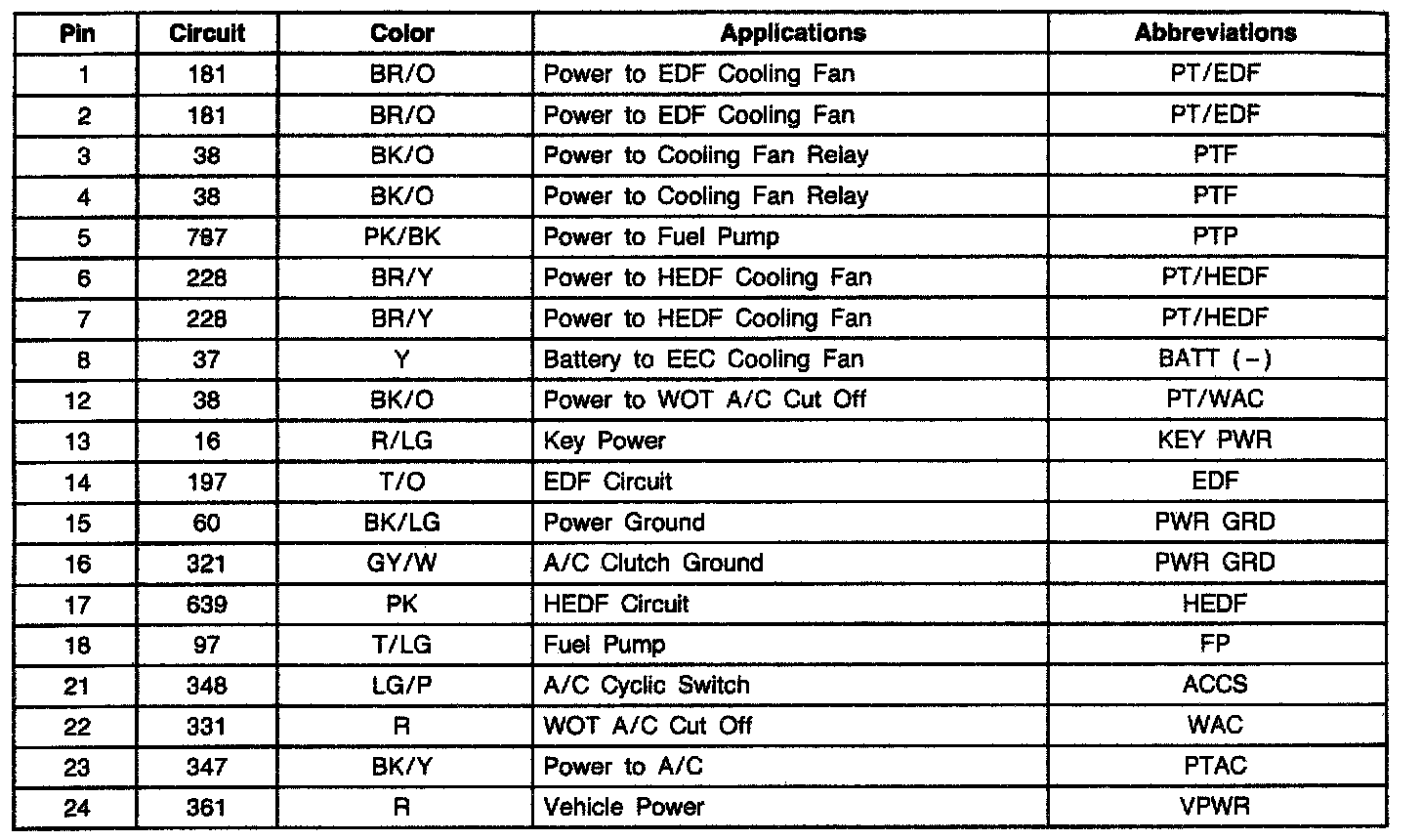

Integrated Relay Controller Module (IRCM) Pin Usage:
