Data Link Connector: Locations

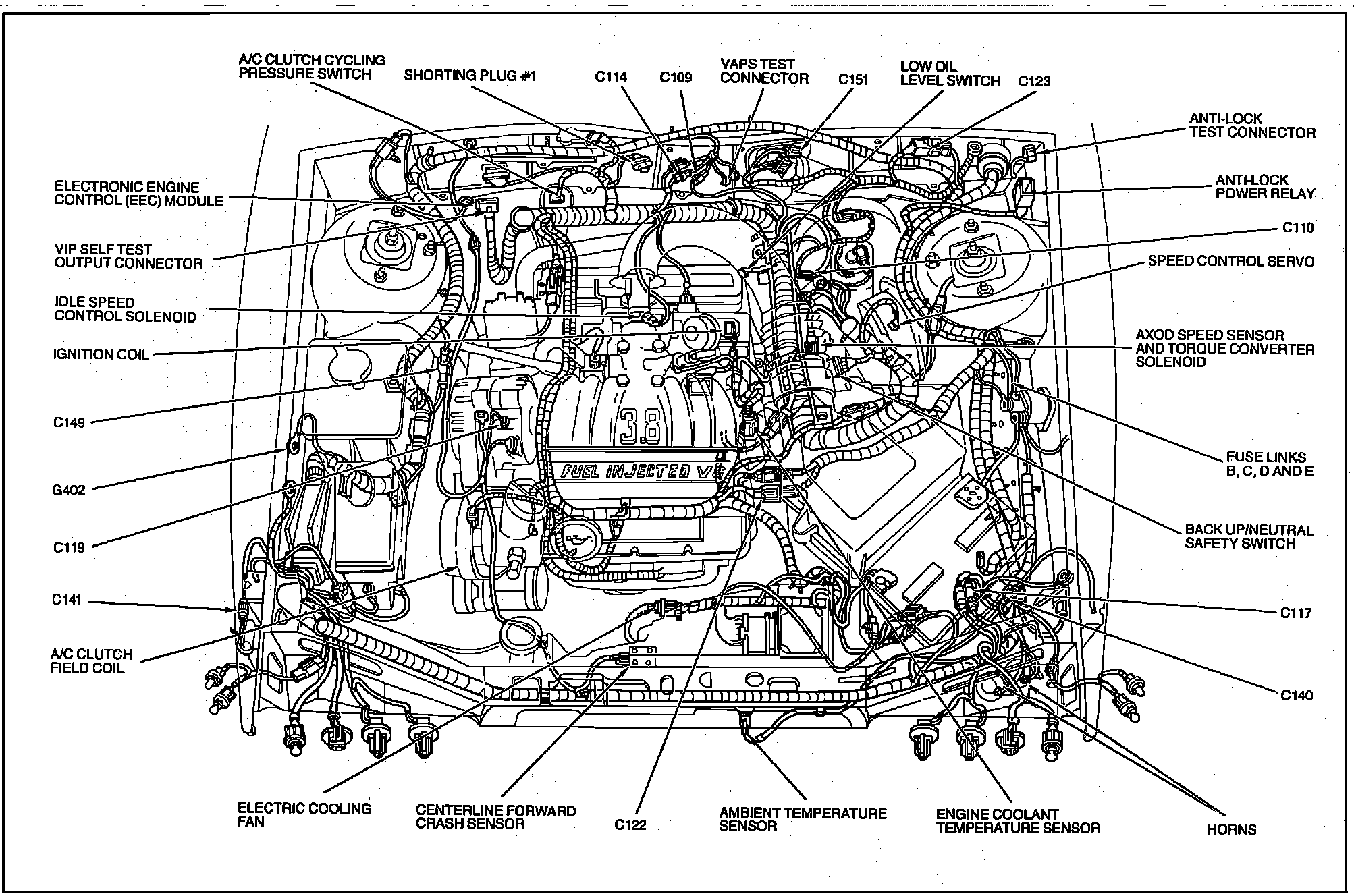

Component Locations - Engine (Part 2 of 2):

VIP SELF-TEST CONNECTOR: Rear of engine compartment, near RH side of the safety wall, near the Electronic Engine Control (EEC) Module.
