Front Door Window Glass: Service and Repair

Removal

1. Remove door trim panel and watershield. Doors

2. Remove inside door belt weatherstrip assembly.

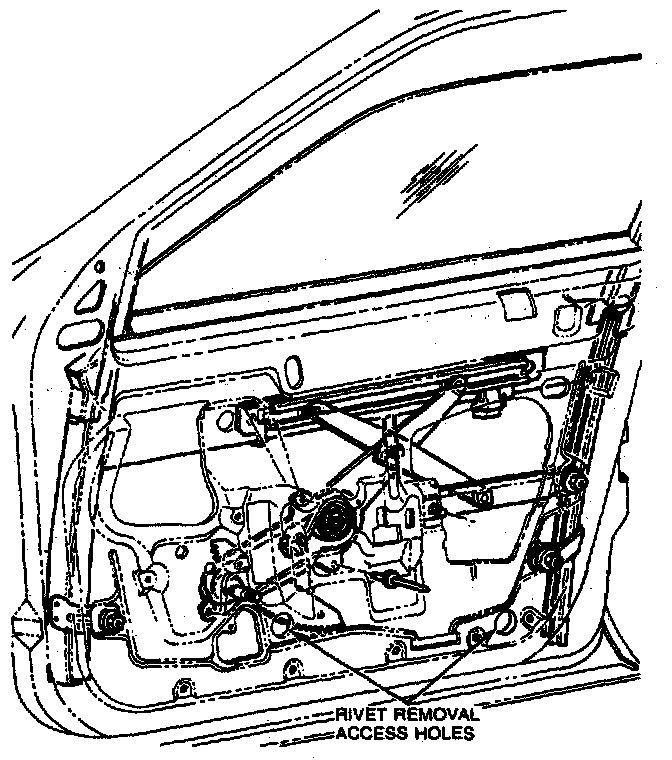

3. Lower glass to access holes in door inner panel. Remove two nuts retaining glass to glass bracket

4. Loosen nut and washer retaining door glass stabilizer.

5. Remove glass by tipping it forward then removing from between door belt opening to outboard side of door.

Installation

1. Install glass into door at belt. Ensure that glass is set within front and rear glass run retainers.

2. Position glass to glass bracket. Install two nuts to secure glass to glass bracket.

3. Install inside door belt weatherstrip assembly.

4. Raise glass to within 75mm (3 inches) of full-up position and adjust glass as outlined.

5. Install door trim panel and watershield.
