5.0L Wiring Diagrams

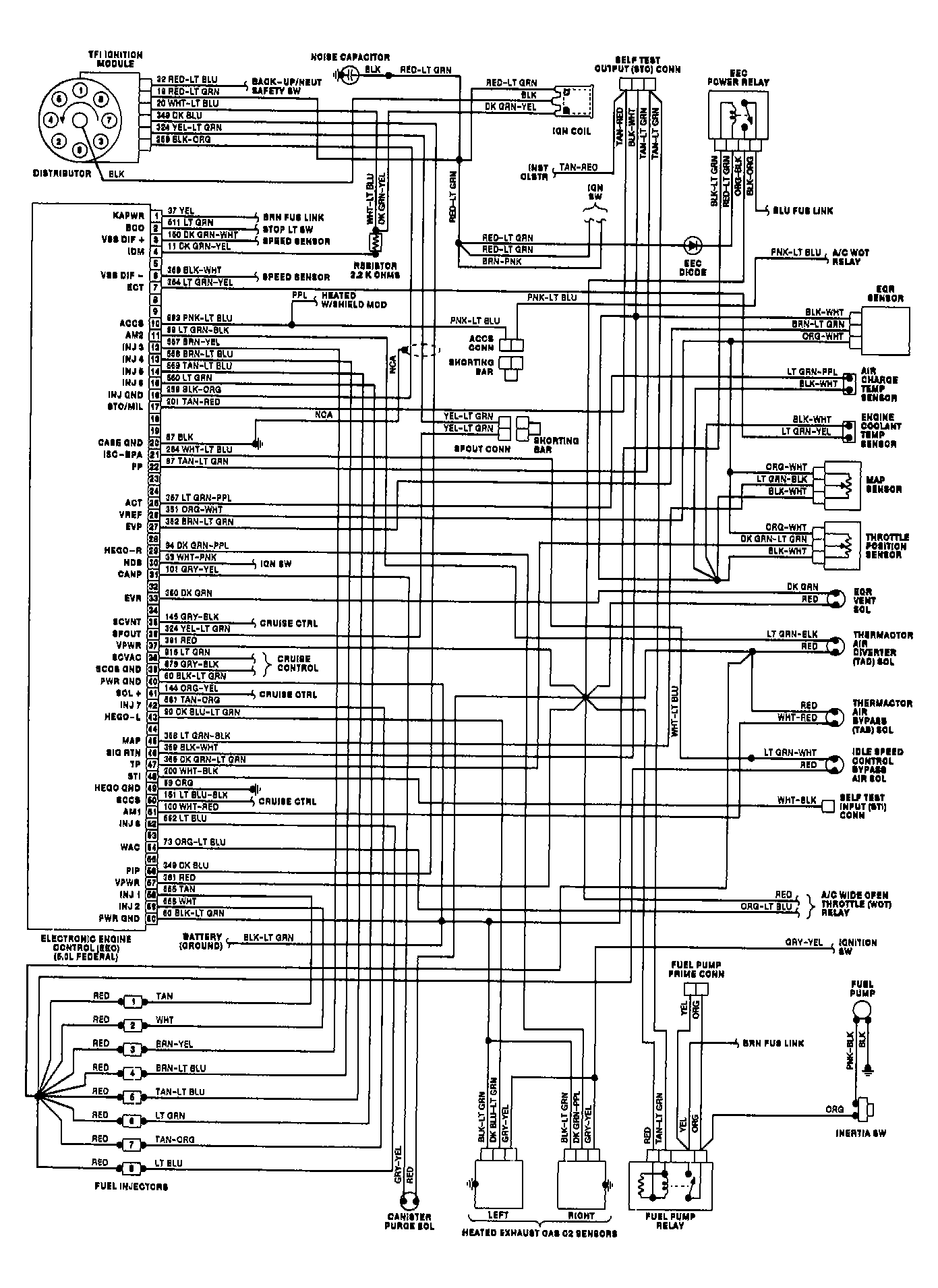

Fig 1: 5.0L Crown Victoria & Grand Marquis (Except MA Calif.)

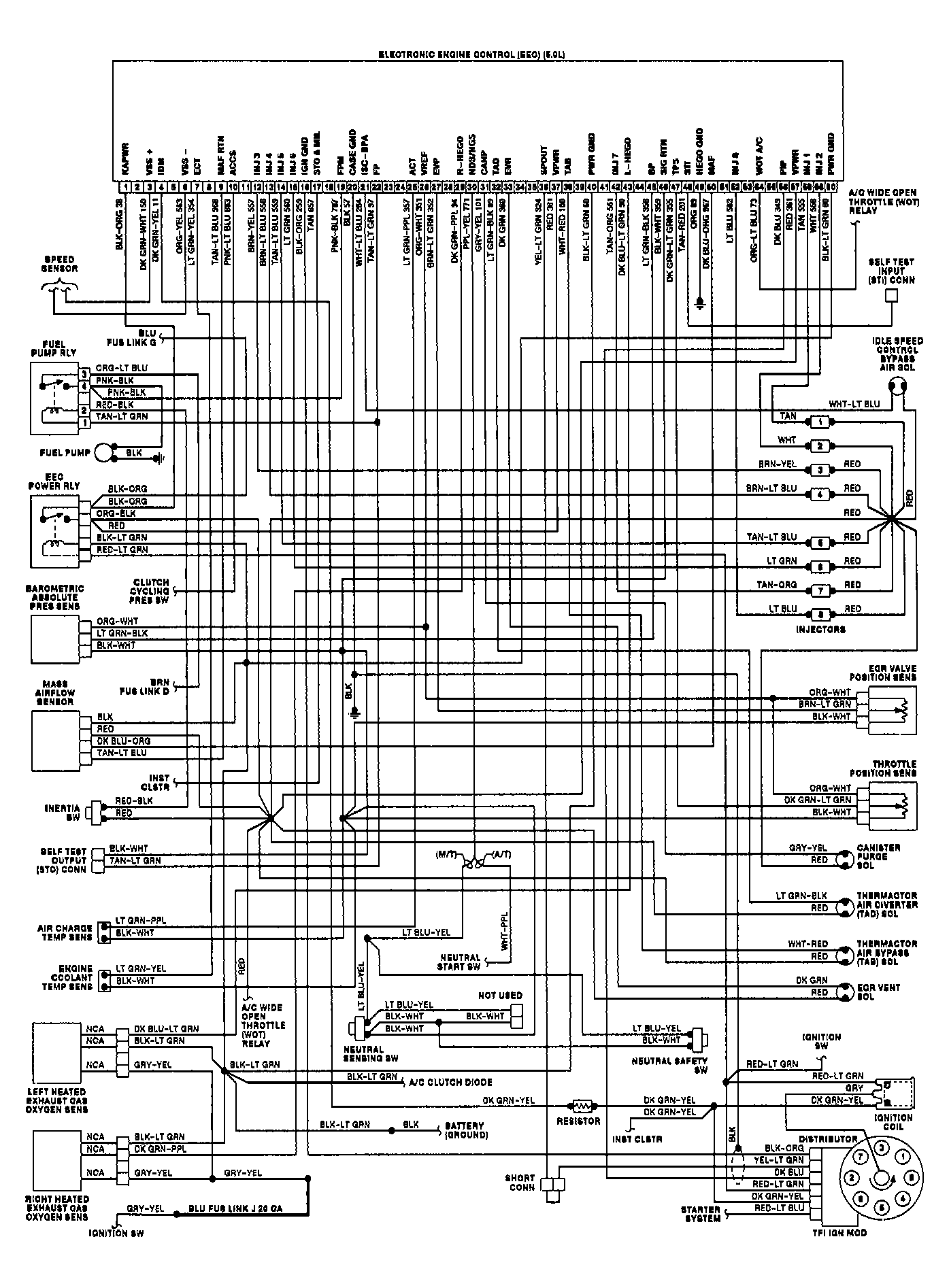

Fig 2: 5.0L Crown Victoria & Grand Marquis (MA Calif.)

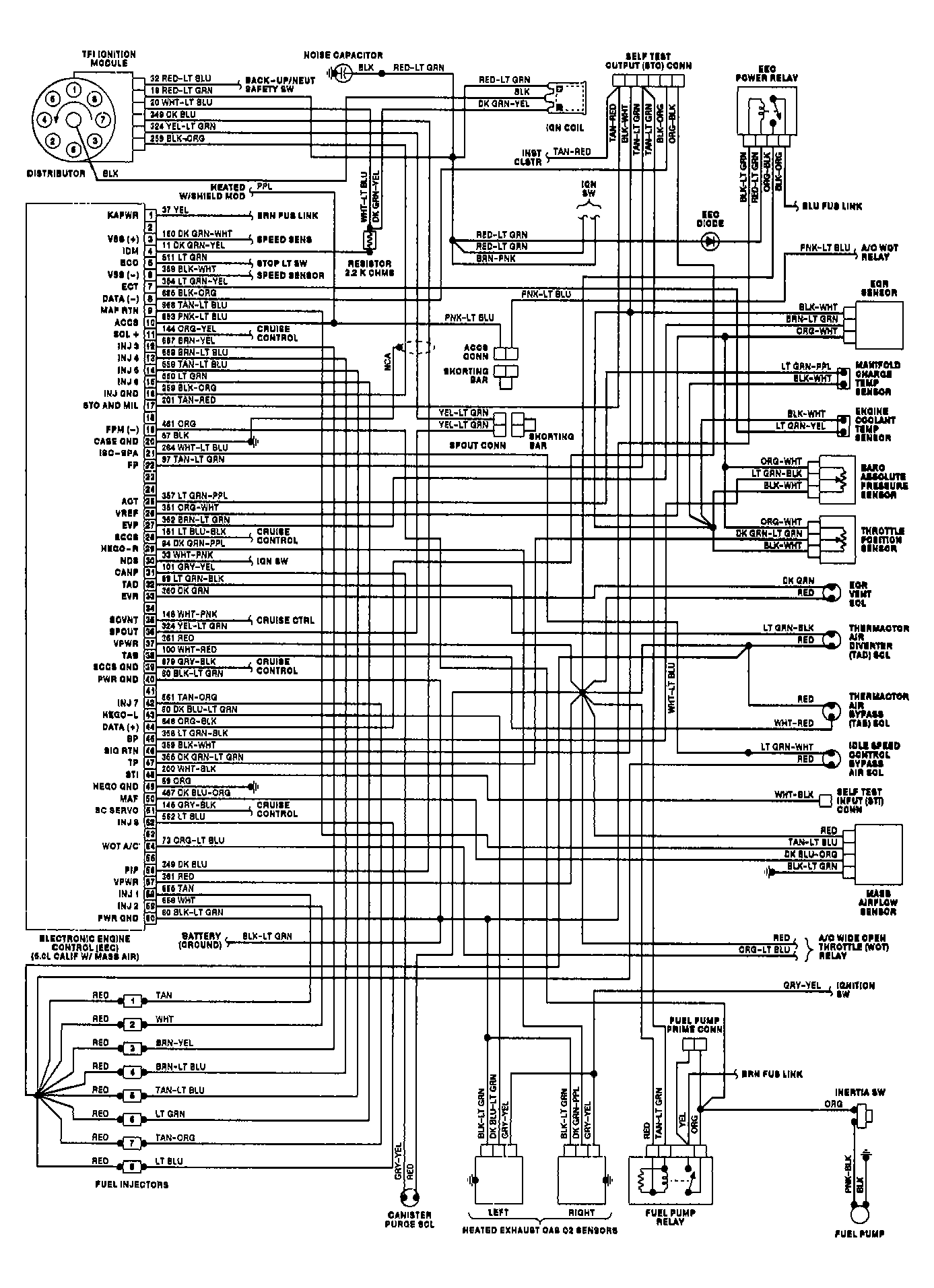

Fig 3: 5.0L Mark VII EEC-IV Wiring Diagram

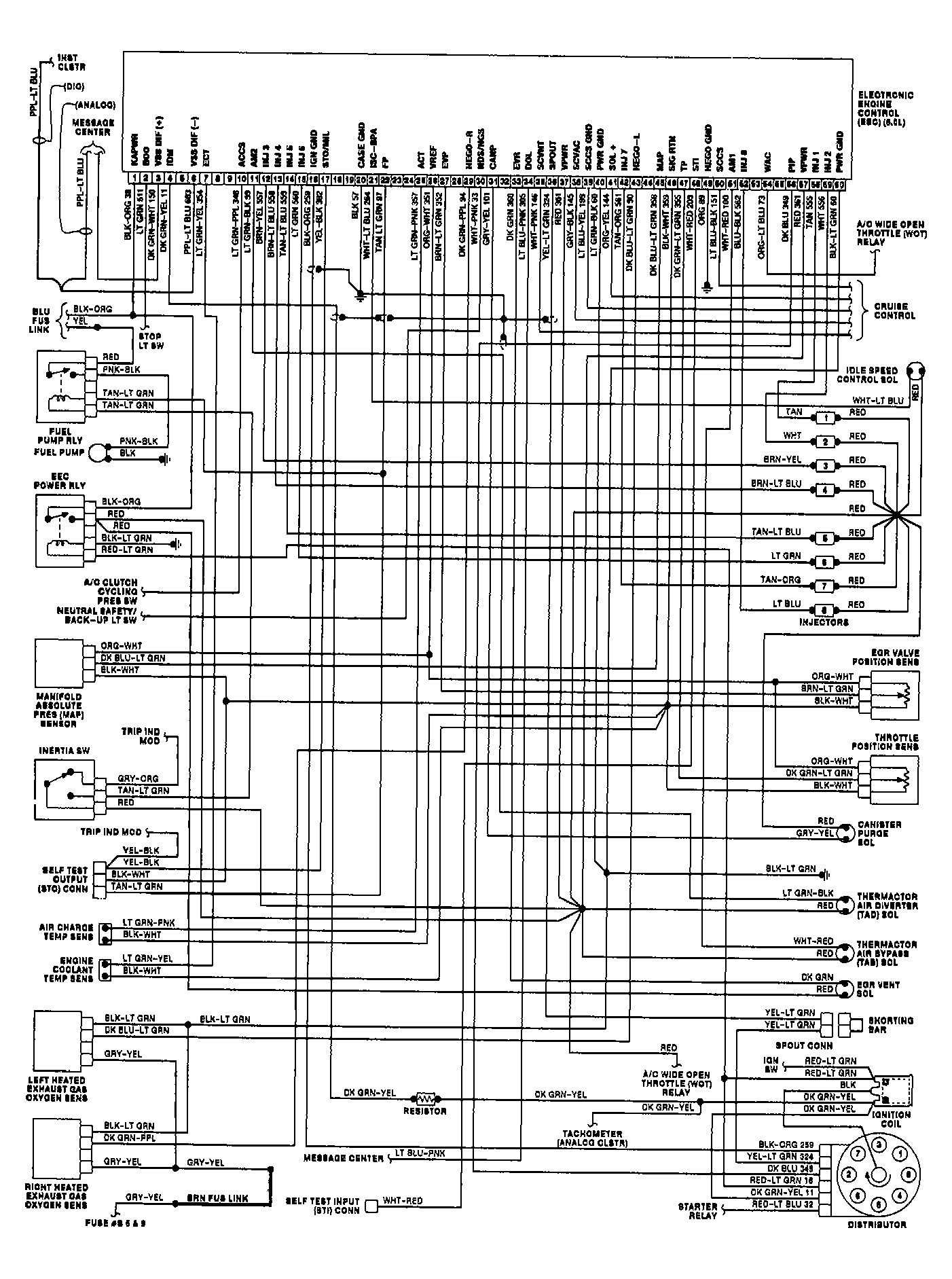

Fig 4: 5.0L Mustang EEC-IV Wiring Diagram

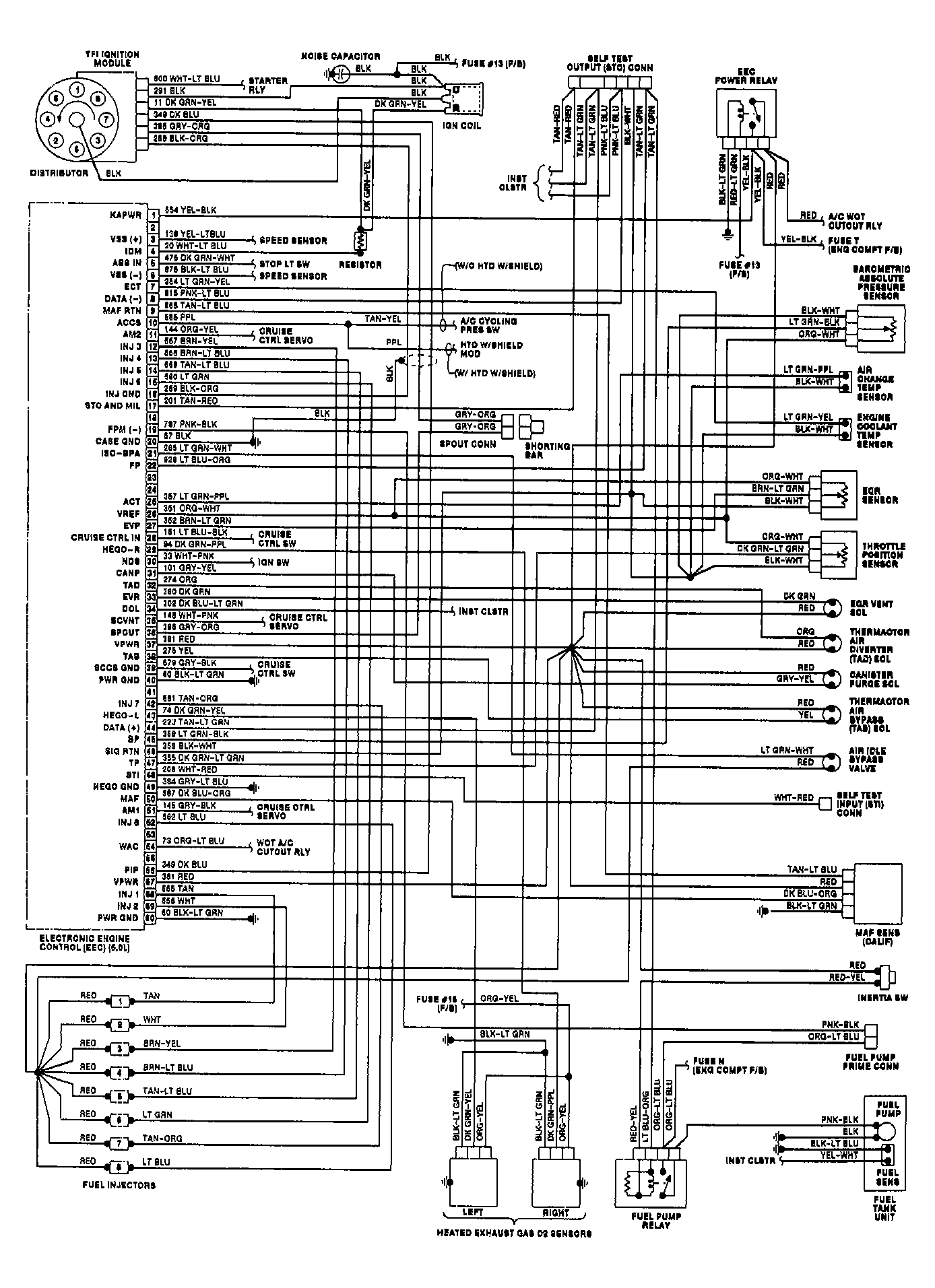

Fig 5: 5.0L Town Car EEC-IV Wiring Diagram
