Torque Specifications (Integral Carrier)

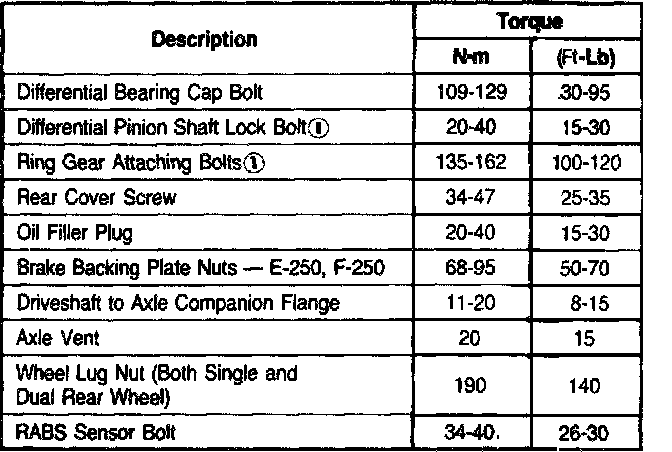

Integral Carrier Torque Specifications:




Using Loctite E0AZ-19554-B (or equivalent).
