Fillpipe Restrictor: Service and Repair

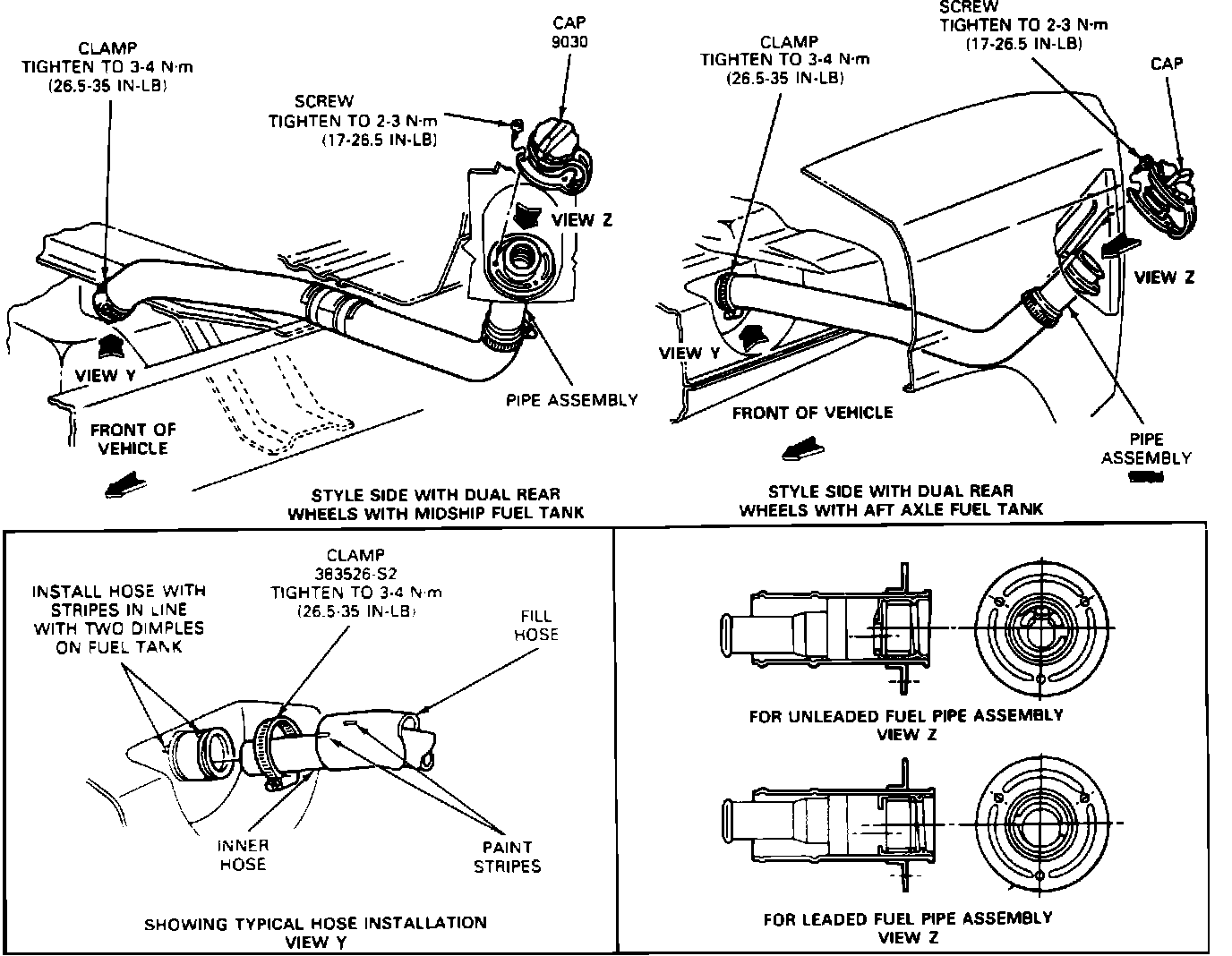

Fuel Filler System Installation:

REMOVAL



1. Drain fuel to a level (approximately 3/4 full) below the fuel tank filler connection by using the fuel hose at the fuel pump to fuel tube connection.
2. Loosen clamp attaching filler pipe to tank fuel filler neck and vent hoses.
3. Detach fuel filler pipe from support bracket and disconnect fuel filler and vent hoses.
4. Remove the three retainer screws that attract the filler pipe flange to the body fuel filler housing.
5. Remove fuel filler pipe from vehicle.
6. Remove hose and clamps. Replace all damaged or worn parts.
