Part 2

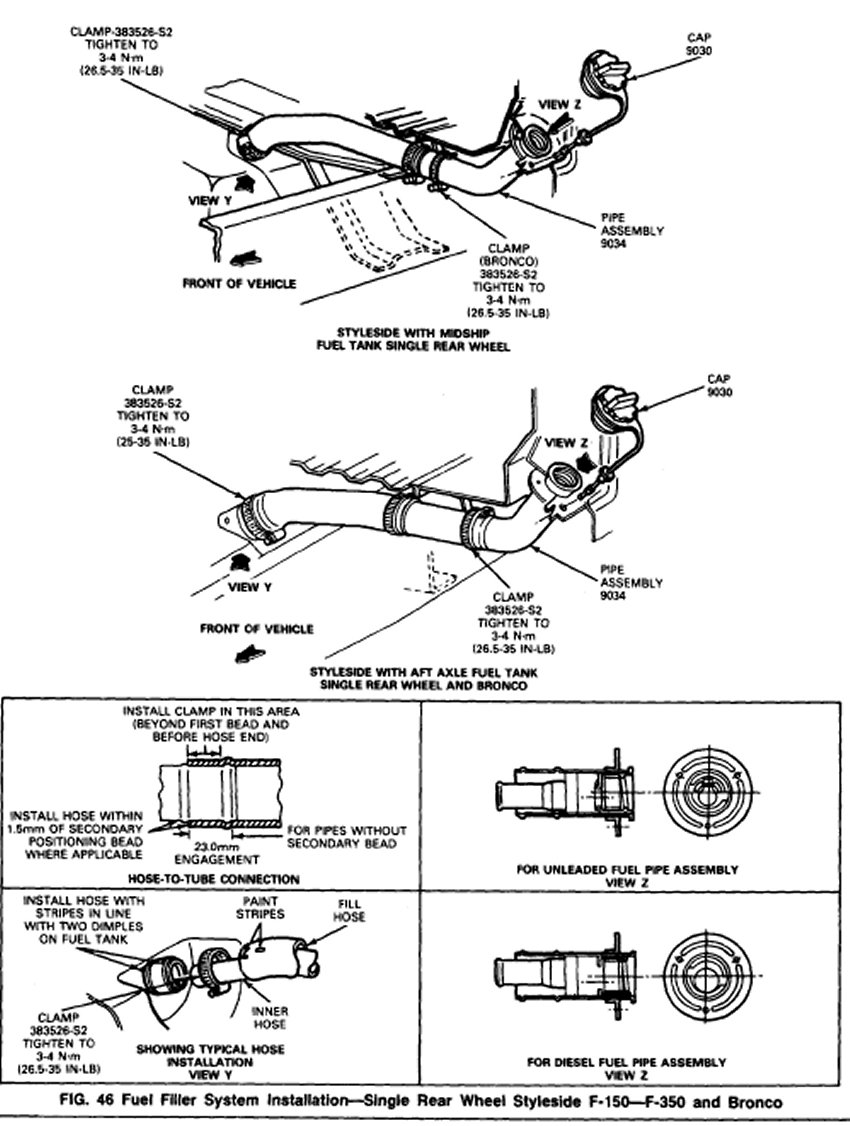

Fuel Filler System Installation Single Rear Wheel Styleside F150-F350 and Bronco.

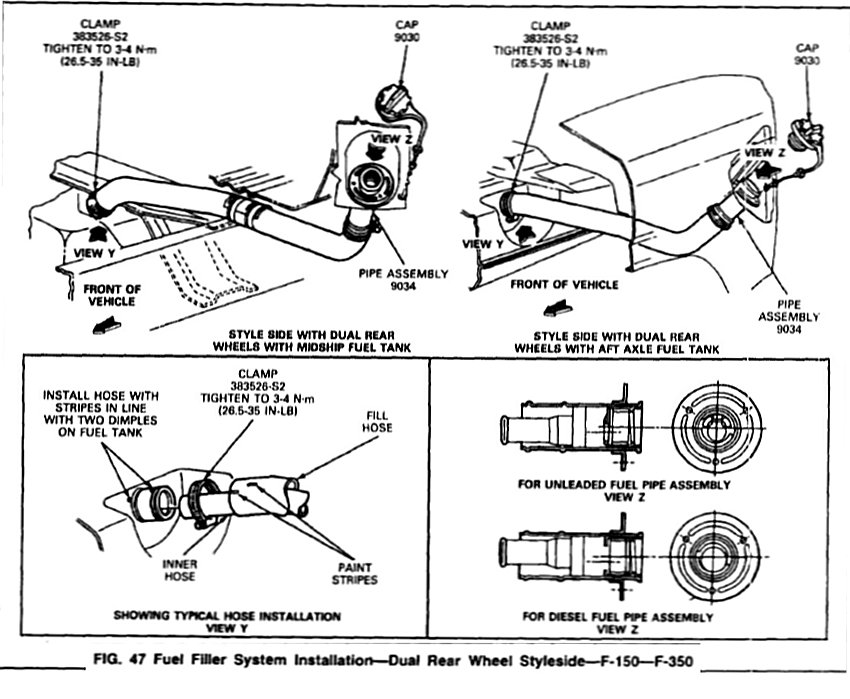

Fuel Filler System Installation Dual Rear Wheel Styleside F150-F350.

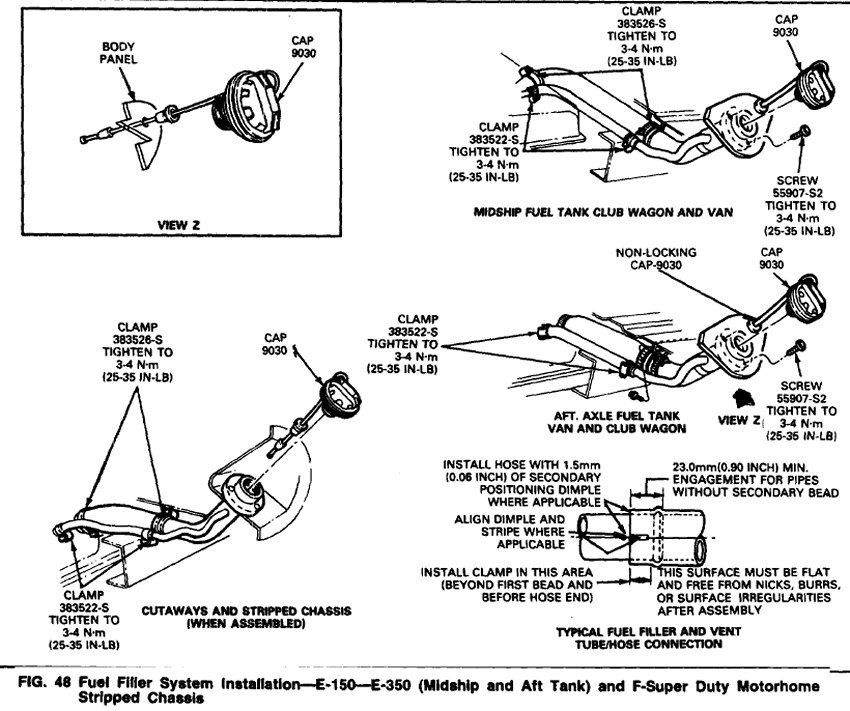

Fuel Filler System Installation E150-E350 (Midship and Aft Tank) and F-Super Duty Motorhome stripped Chassis.

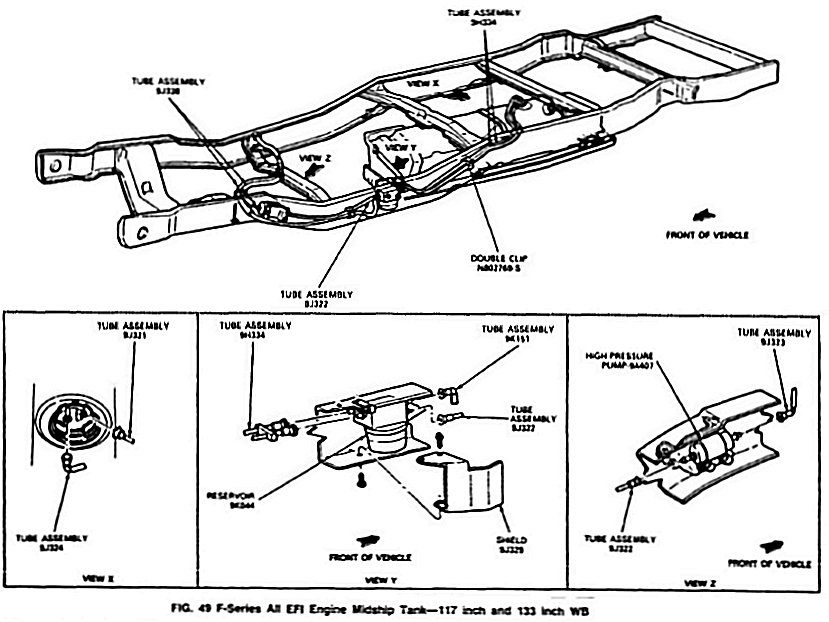

F Series All EFI Engine Midship Tank 117 inch and 133 inch Wheelbase.






F Series All EFI Engine Dual Tank 117 inch and 139 inch Wheelbase.

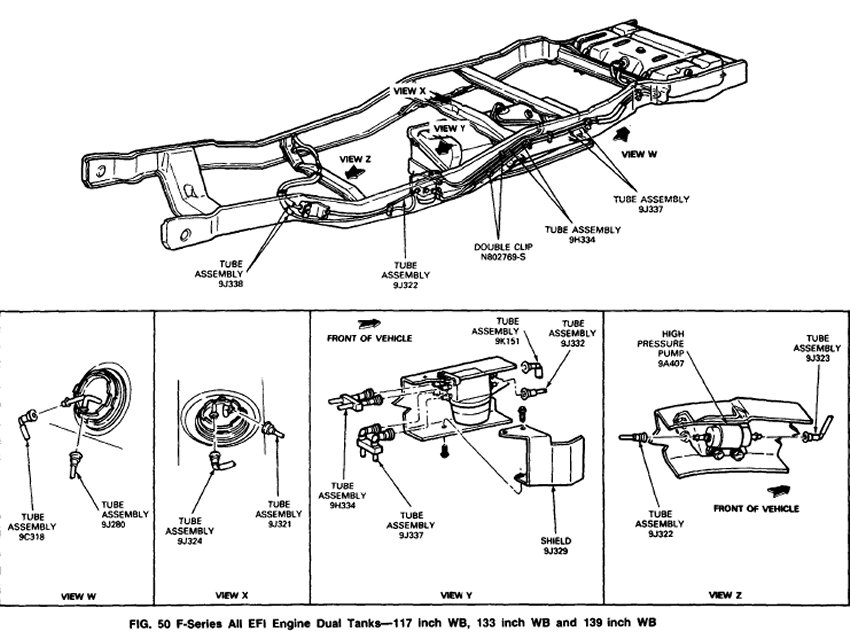

F Series All EFI Engine Dual Tank 117 inch, 133 inch and 139 inch Wheelbase.

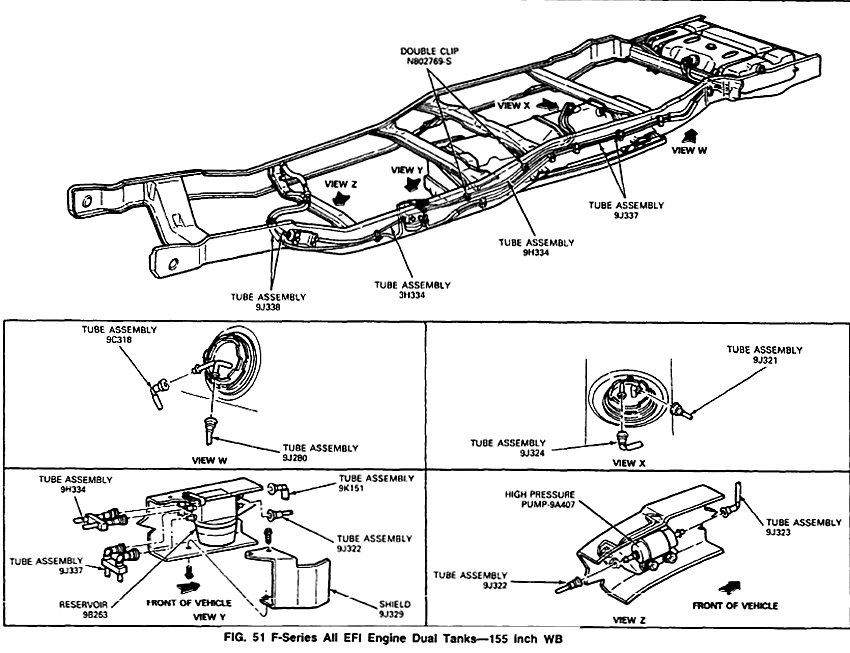

F Series All EFI Engine Dual Tank 155 inch Wheelbase.

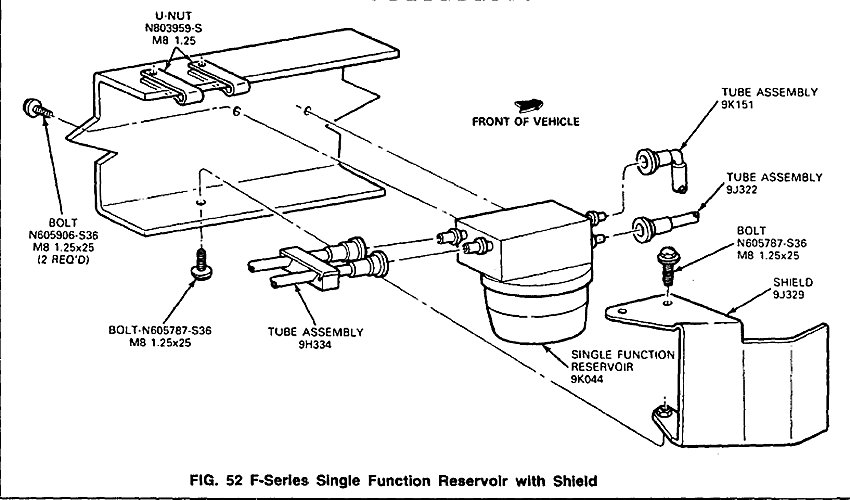

F Series Single Function Reservoir With Shield

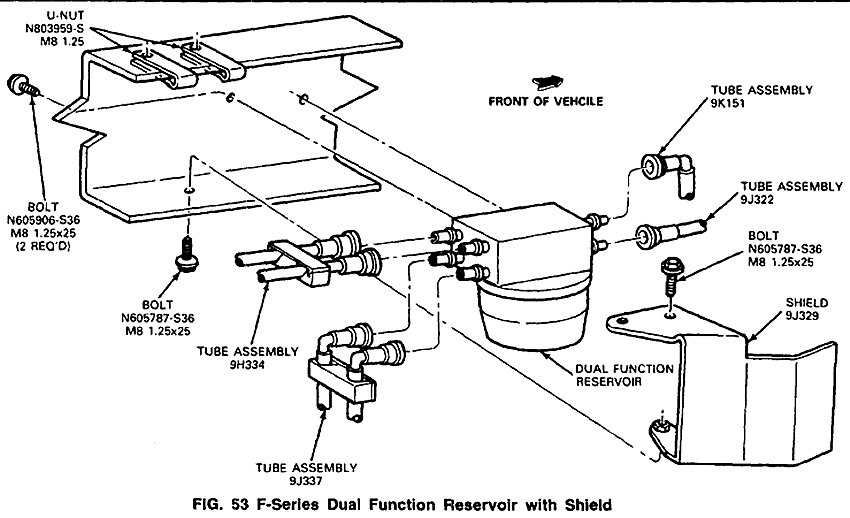

F Series Dual Function Reservoir With Shield

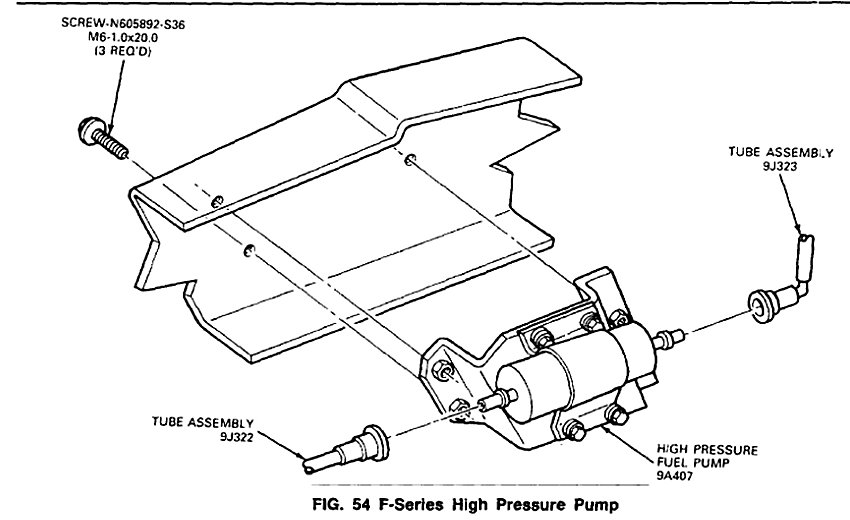

F Series High Pressure Pump
