Fuel Selector Valve

Remove fuel selector valve. Perform checks as indicated in fuel selector valve specification table. See Fig 1 . Replace selector valve if operation is not correct.

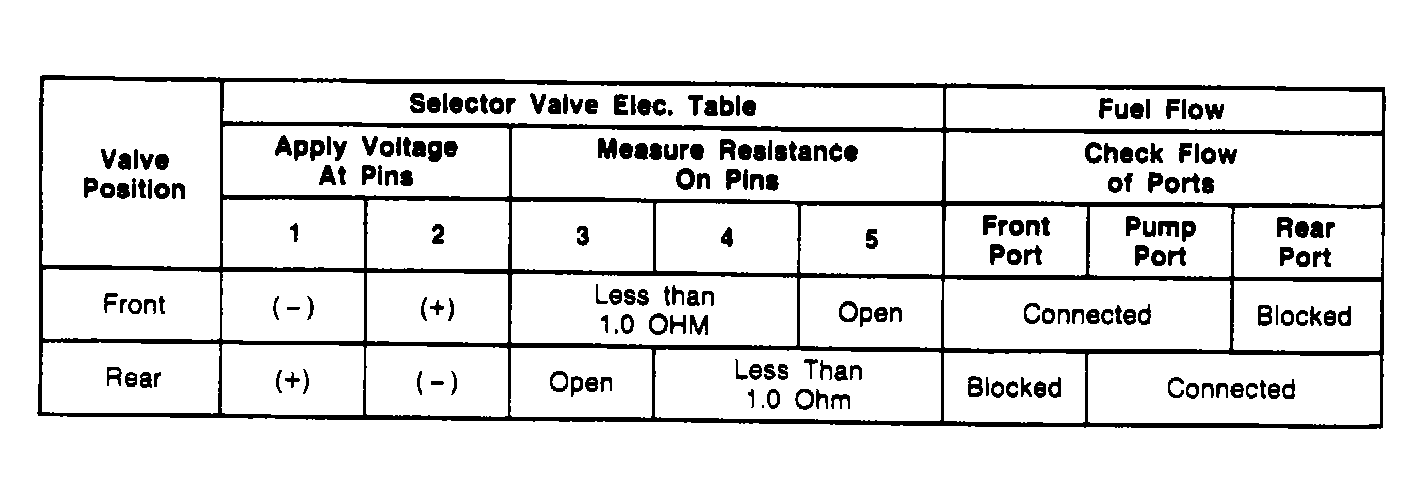

Fig 1: Fuel Selector Valve Specification Table
G90D09356Courtesy of FORD MOTOR CO.
