Component Locations(ECONOLINE)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1991 Ford RV Cutaway, 1991 Ford Pickup, 1991 Ford F-Super Duty, 1991 Ford Econoline, and 1991 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS(ECONOLINE)

Component Location
Ground G201 Behind Left Side Of Instrument Panel, Near Fuel Tank Selector Switch
Interior Fuse Panel Lower Left Side Of Instrument Panel. See Fig 1.

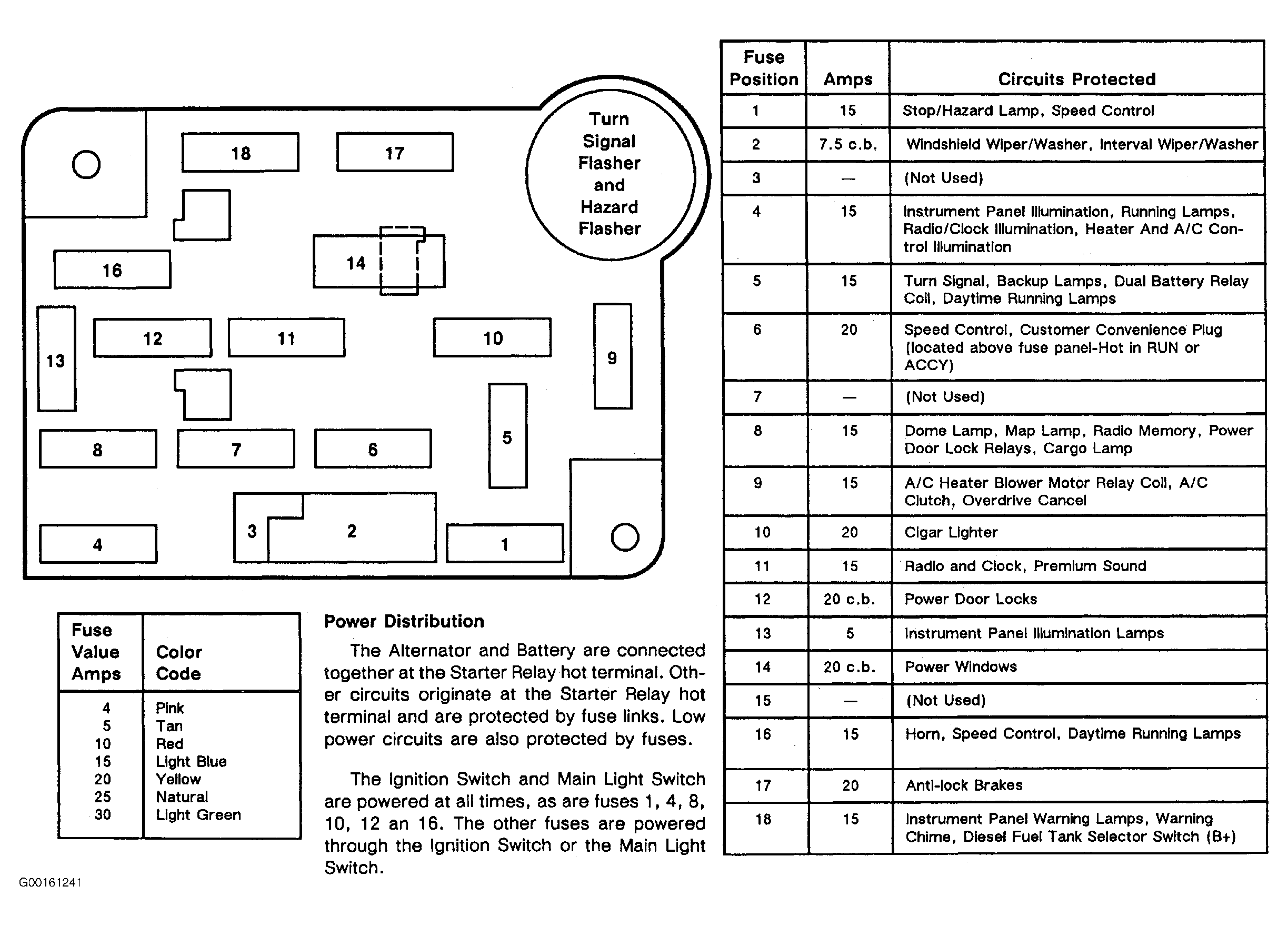

Fig 1: Identifying Interior Fuse Panel Components (Econoline)
G00161241Courtesy of FORD MOTOR CO.
