Ignition Timing: Adjustments

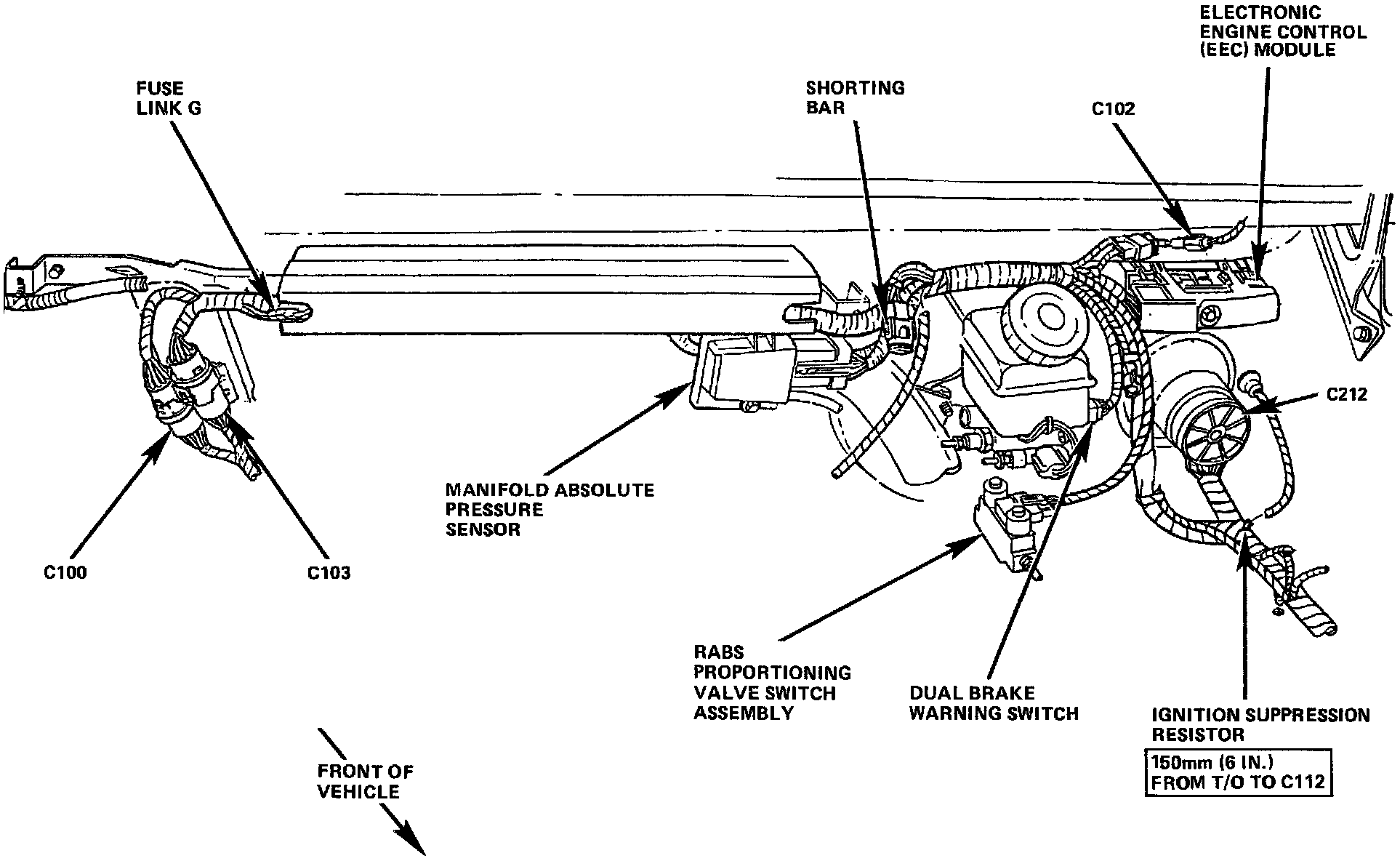

Component Locations:

1. Warm engine to operating temperature.
2. Turn all electrical accessories "OFF."
3. Connect Rotunda Timing Analyzer (059-00014), or equivalent.
4. Remove the shorting bar from the double wire spout connector.
5. Set base timing:

Base Timing: 10° BTDC

6. Tighten the distributor mounting bolts to specification:

Torque to: 19 - 28 Nm (14 - 21 ft lb)

7. After tightening bolts, make sure timing did not move.
8. Install the shorting bar.
9. Disconnect timing light.
