TC - Test Schematic

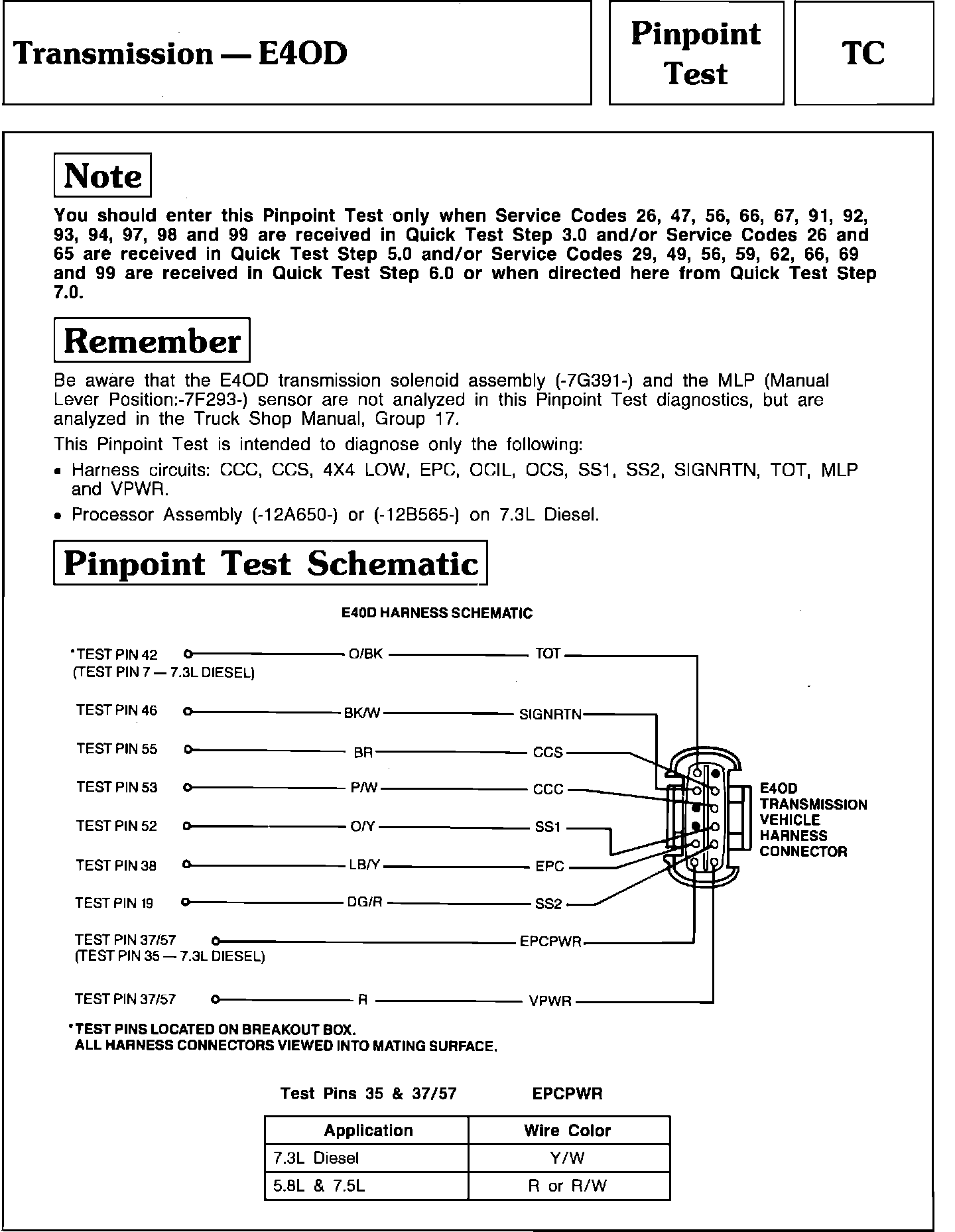

Pinpoint Test TC - Transmission E4OD:

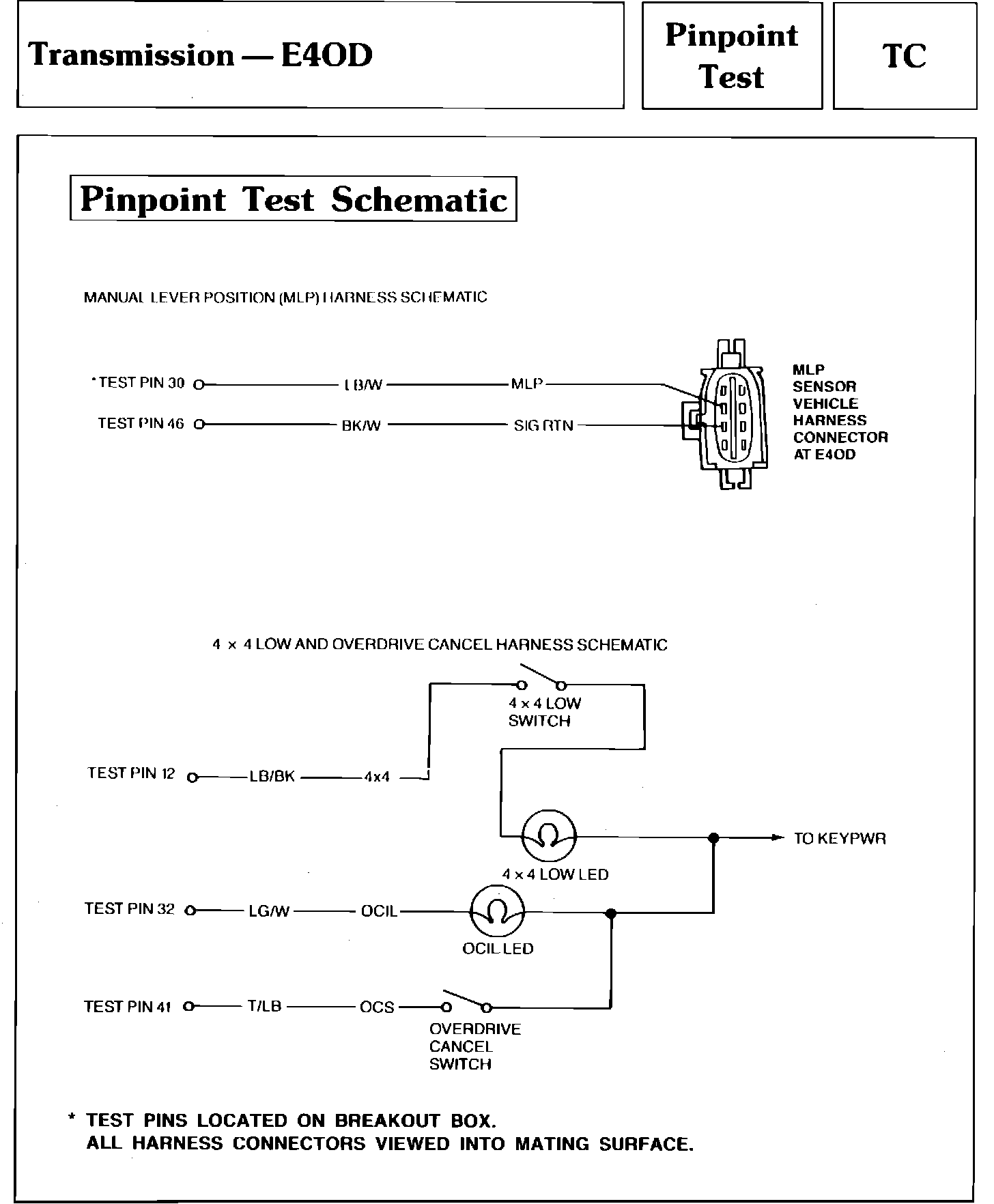

Pinpoint Test TC - Transmission E4OD:

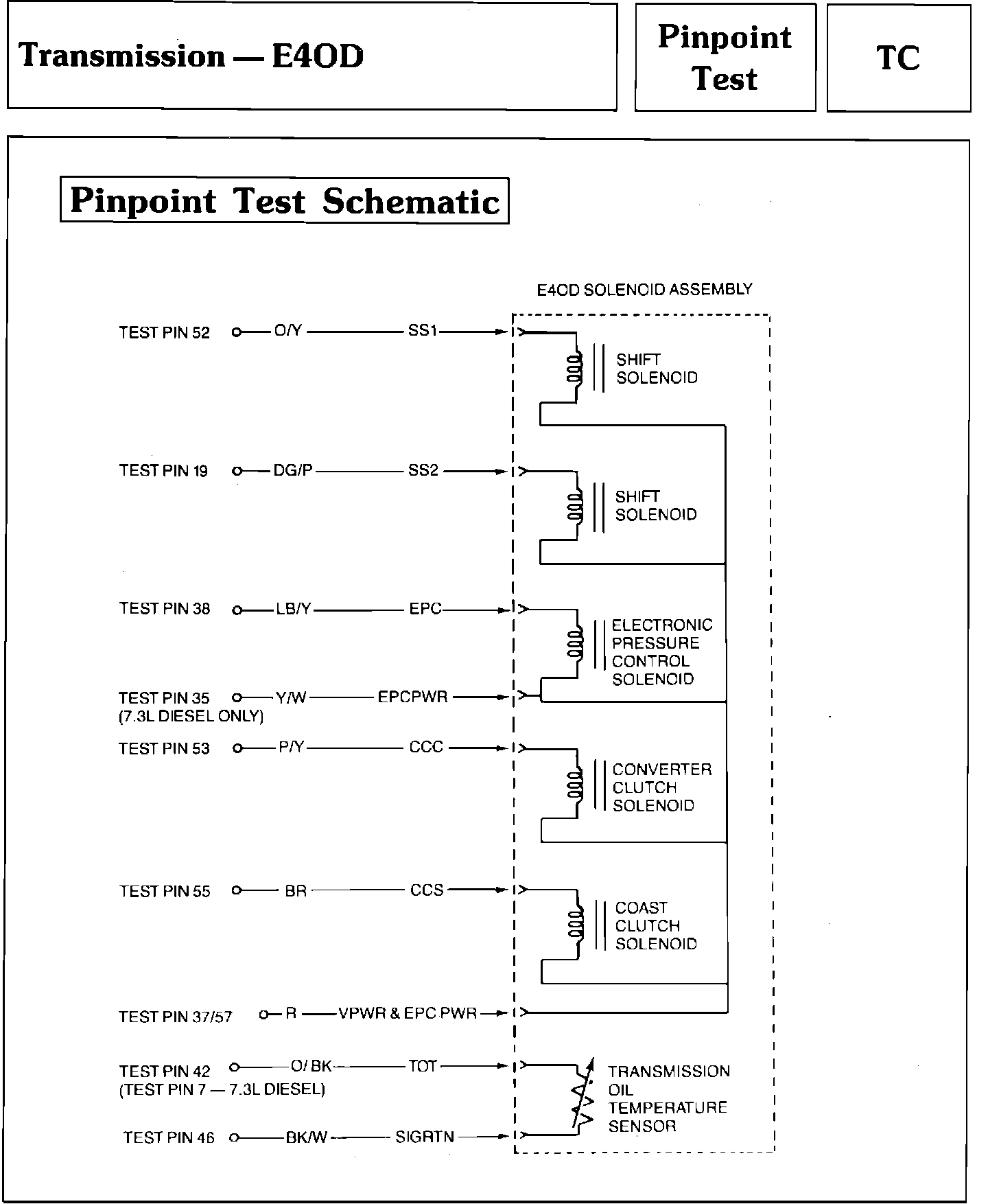

Pinpoint Test TC - Transmission E4OD:
