KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB13 - KB15
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
KB13 - KB15

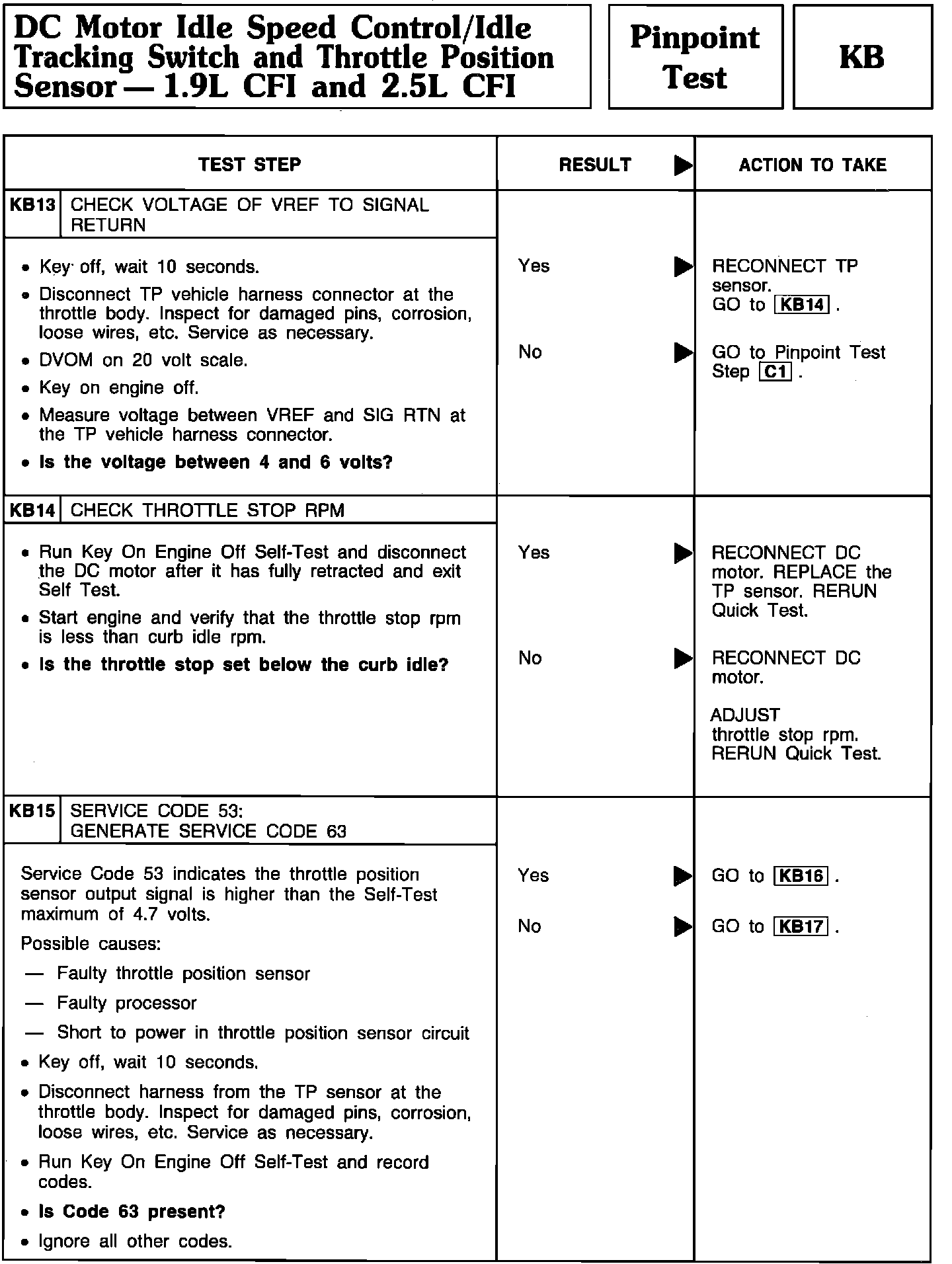

Pinpoint Test KB13 Thru KB57 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
