Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Panel

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

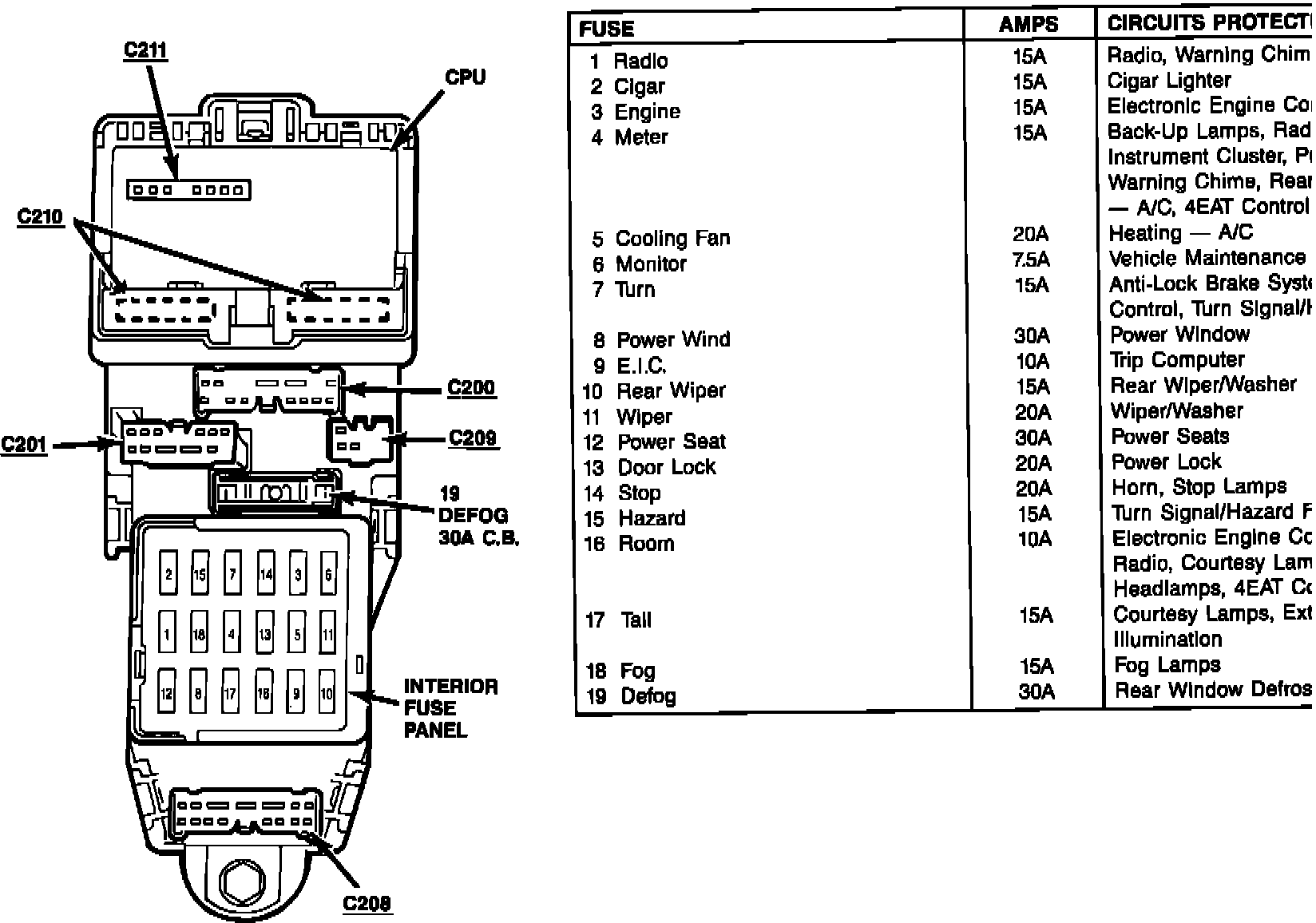

Fuse Panel

��Fuse Panel:
