KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB27 - KB29
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
KB27 - KB29

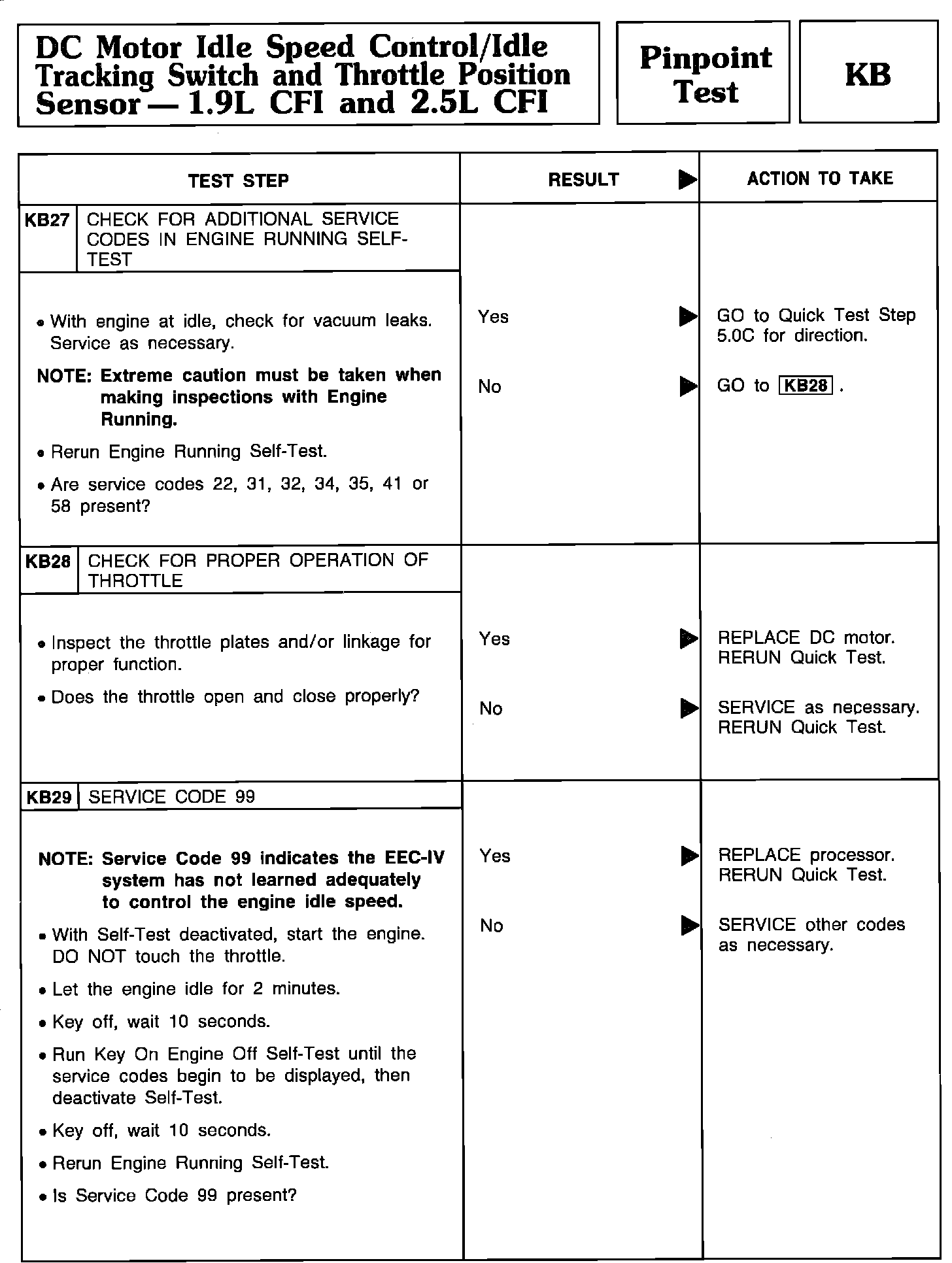

Pinpoint Test KB27 Thru KB29 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
