KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB18 - KB20
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
KB18 - KB20

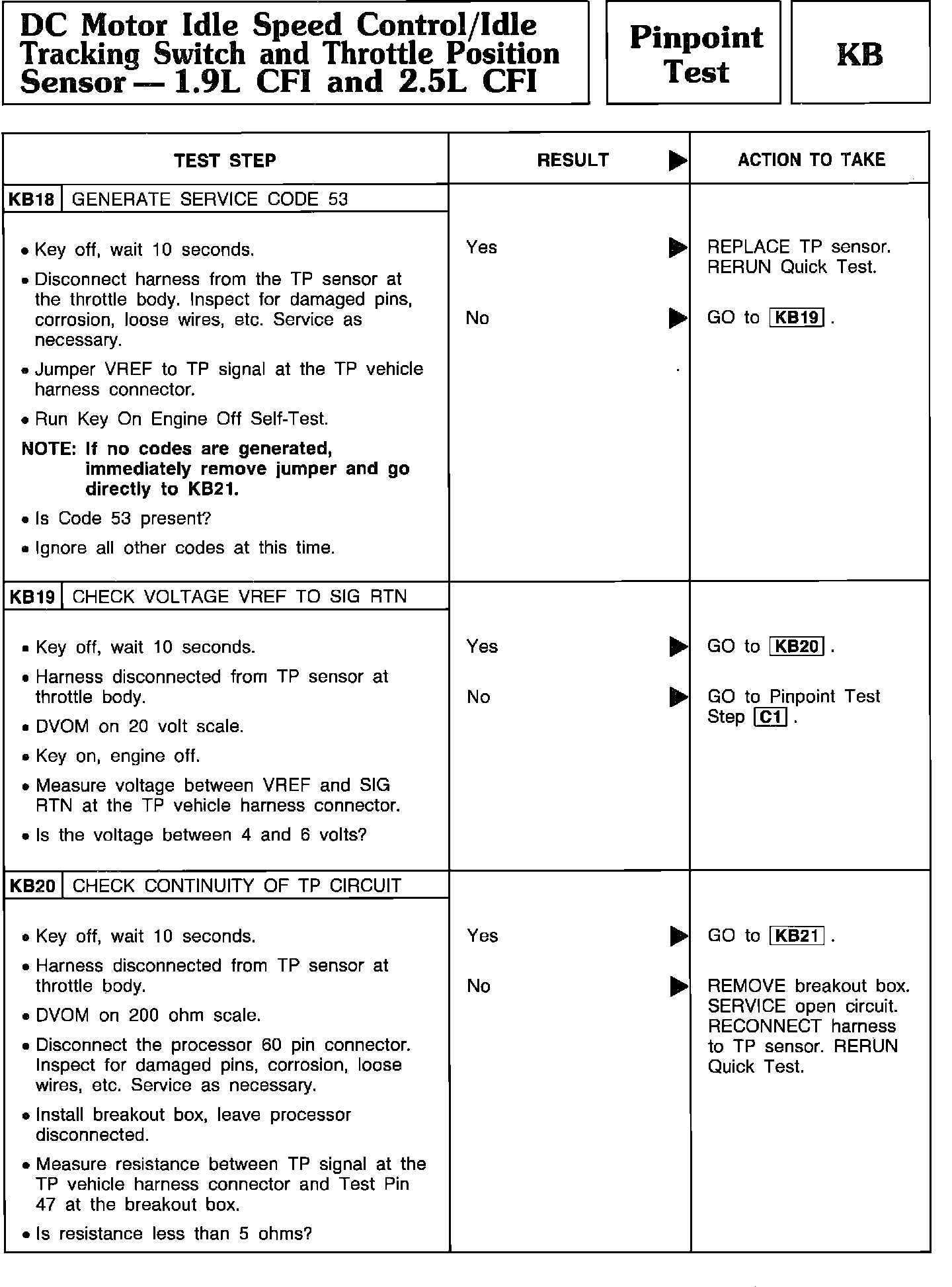

Pinpoint Test KB18 Thru KB20 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
