Coolant Temperature Sensor/Switch (For Computer): Locations

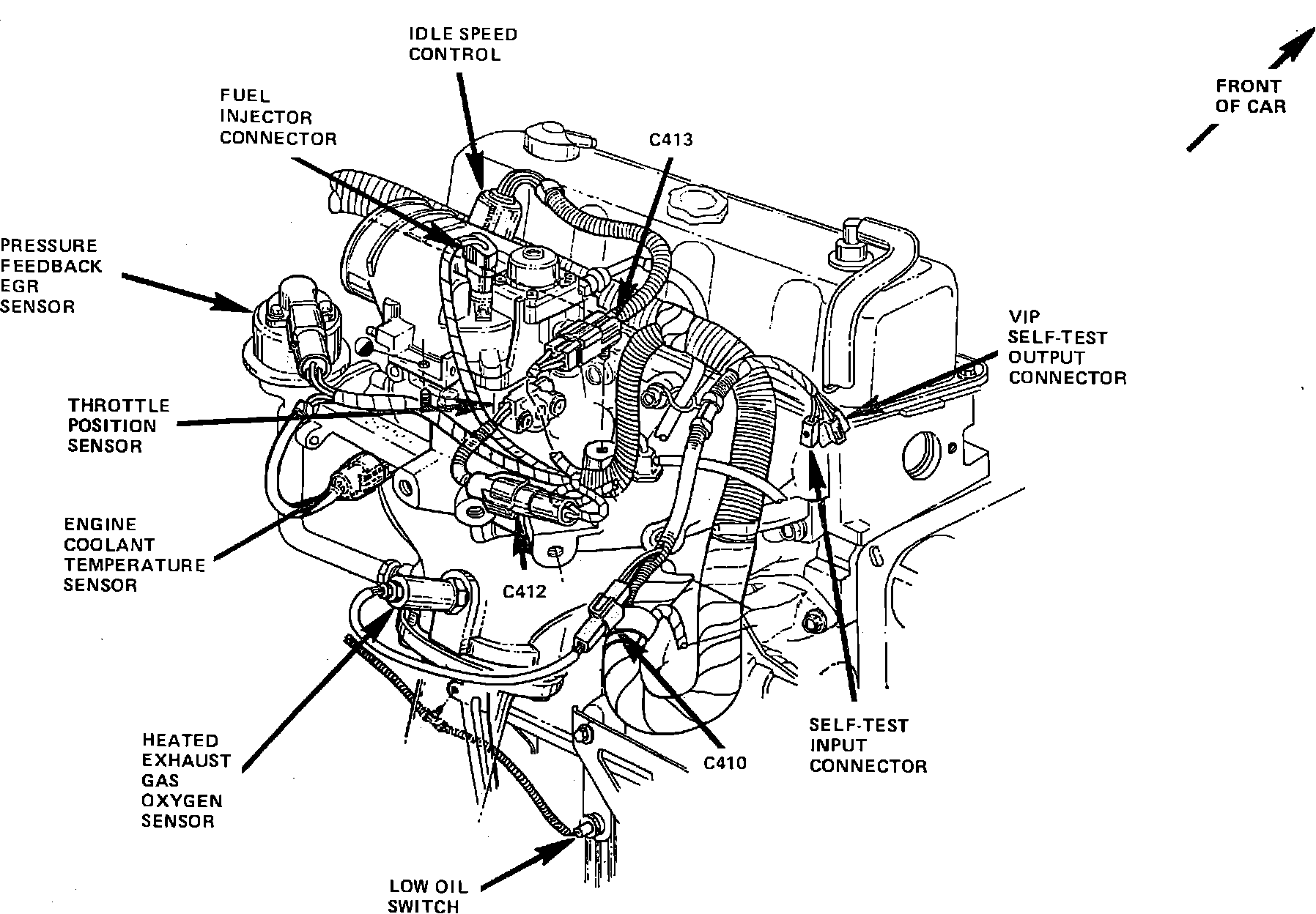

Location View - Engine Components.:




RH Top Side Of Engine

Applicable to: 4-153/2.5L
