Escort EXP Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
1.9L EEC IV Testing
>>
Wiring Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams

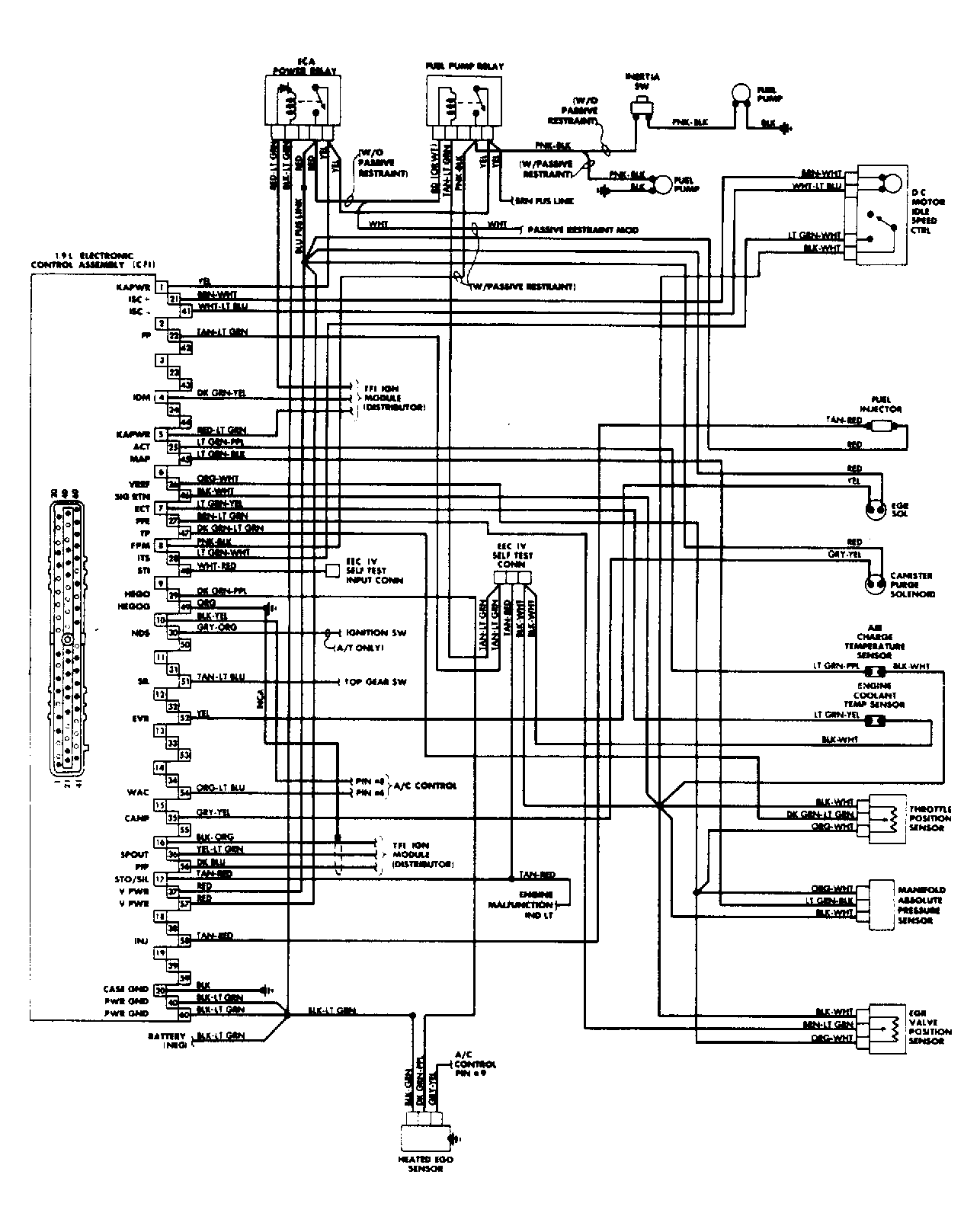

Fig 1: 1.9L CFI EEC-IV Wiring Diagram

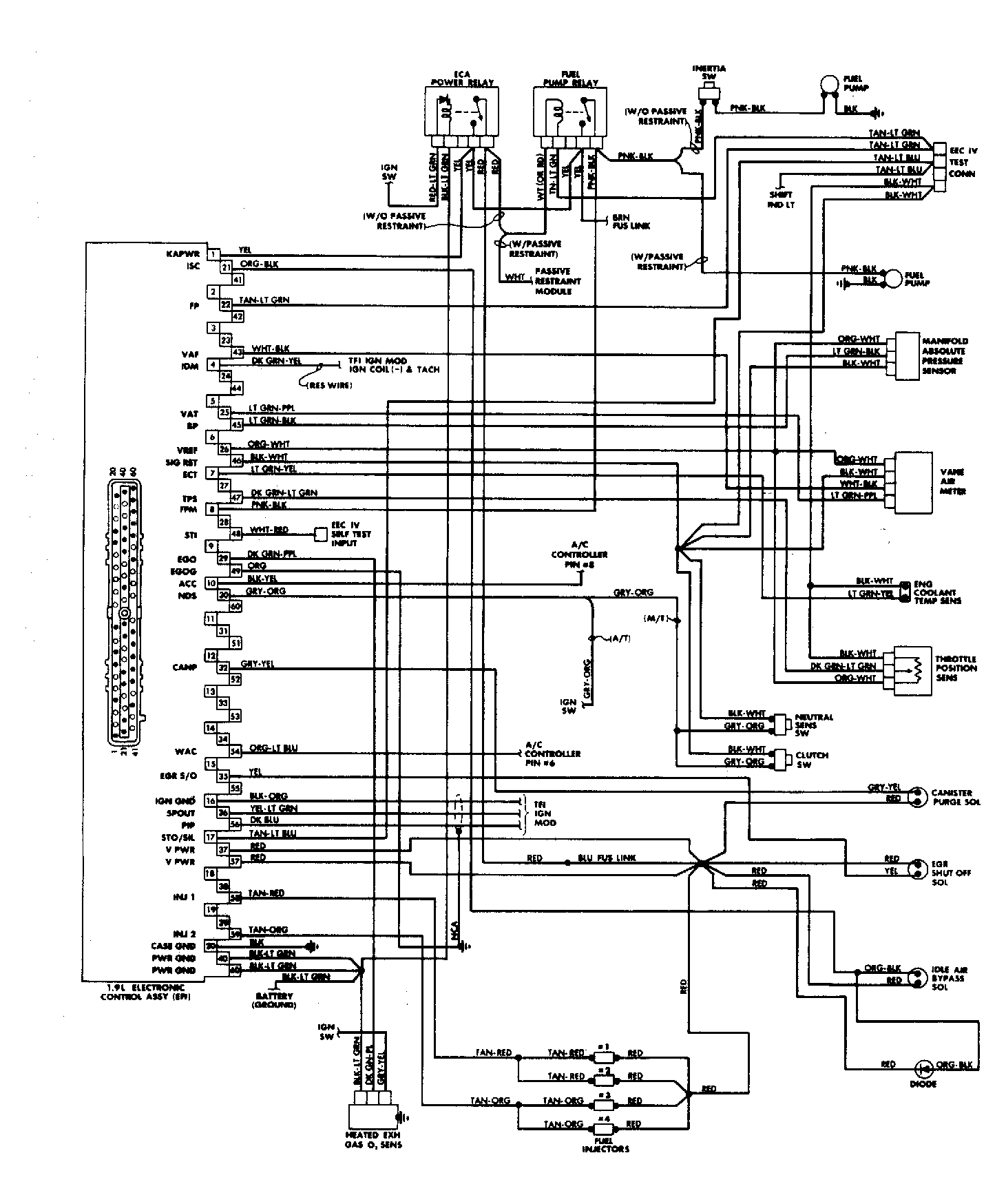

Fig 2: 1.9L MPFI EEC-IV Wiring Diagram
