Engine Controls

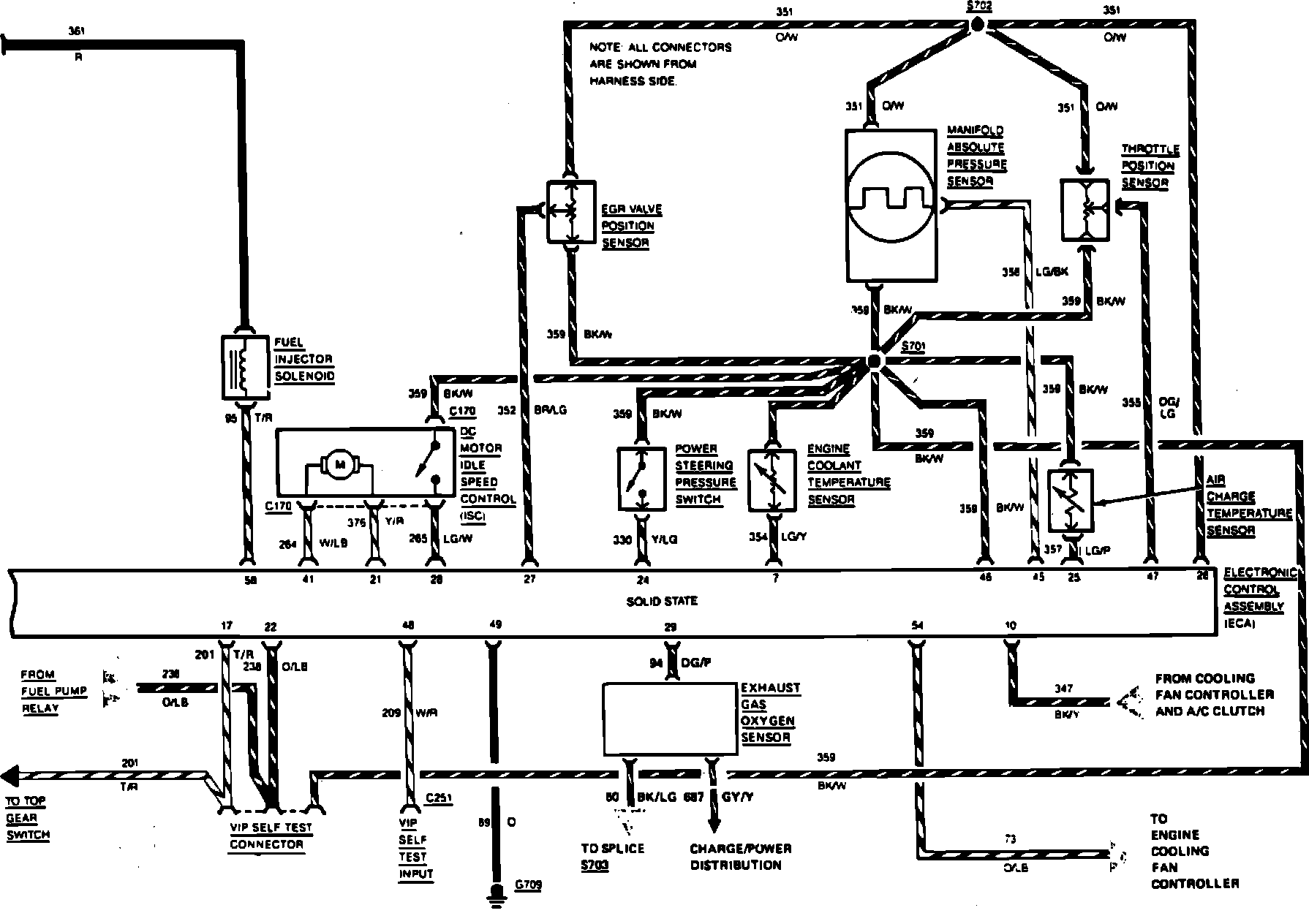

Fig. 11 Electronic Engine Control Wiring Circuit. (Part 1 of 3):

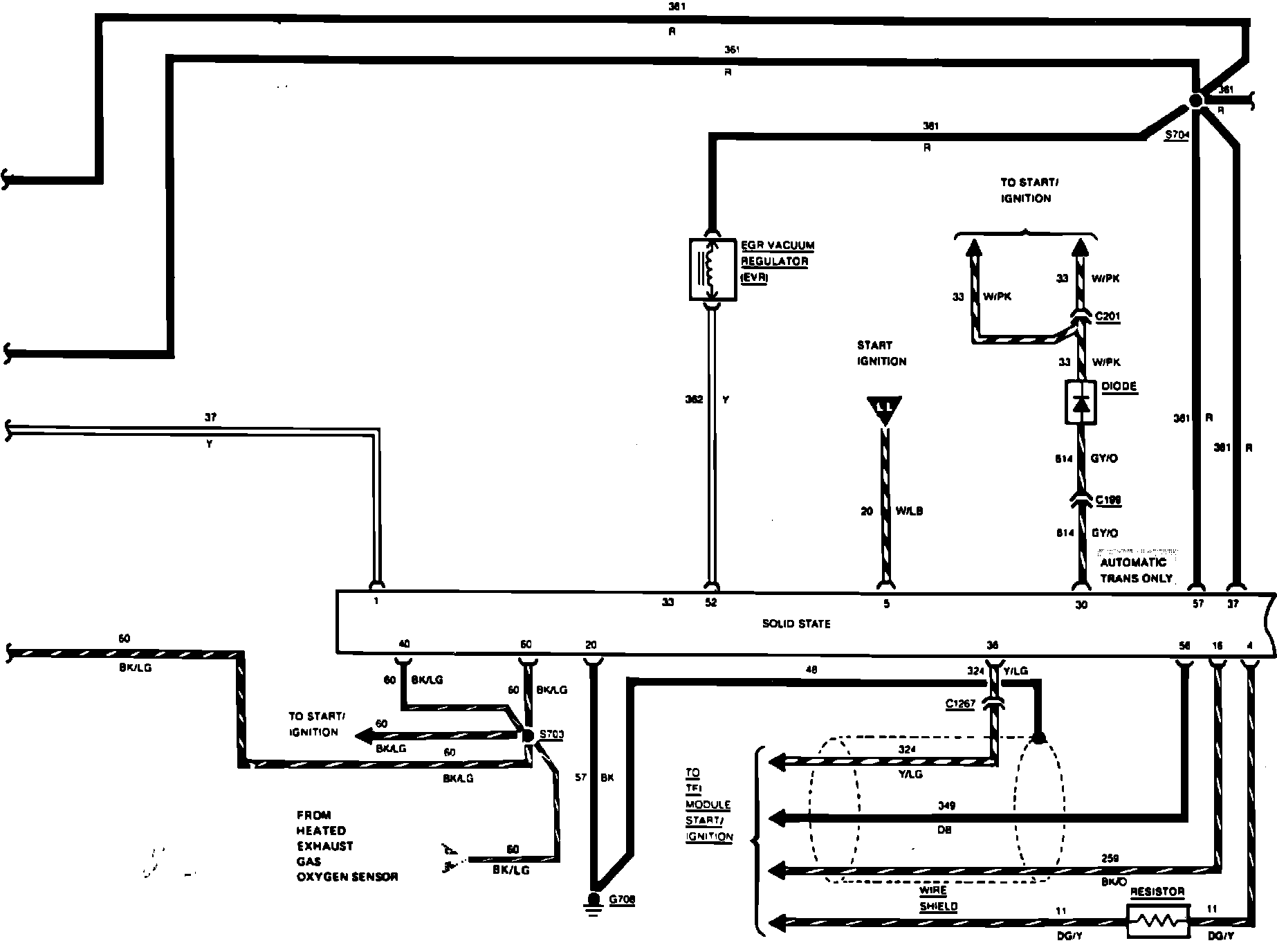

Fig. 11 Electronic Engine Control Wiring Circuit. (Part 2 of 3):






Fig. 11 Electronic Engine Control Wiring Circuit. (Part 3 of 3):
