Fan Motor Relay Module (Integrated Control Module)

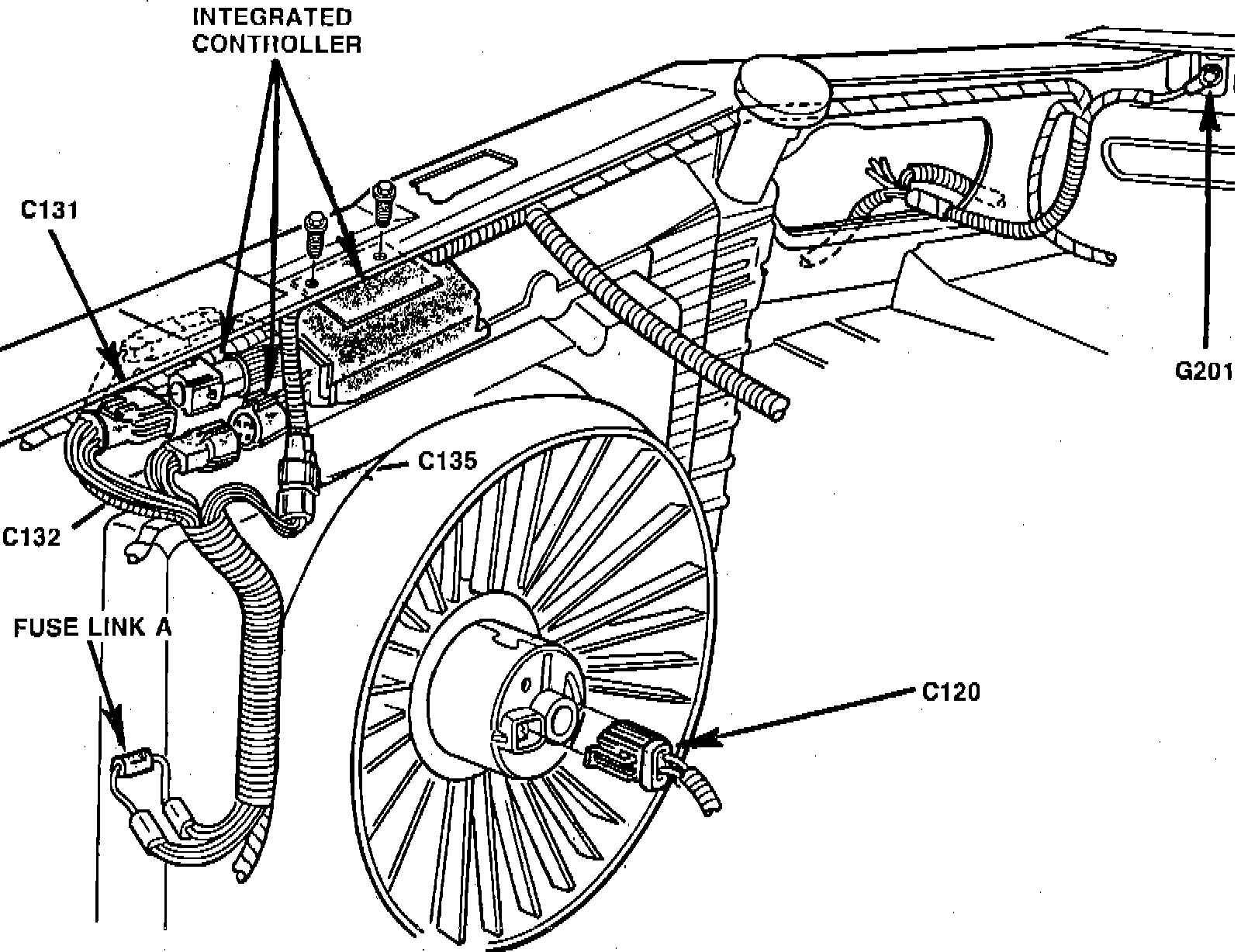

Location View - Front Radiator Support Wiring.:

The High Speed Electro Drive Fan (HEDF) and Low Speed Electro Drive Fan (EDF) Relays are part of the Integrated Control Module; which is located on the radiator support.
