Taurus MT5, 4D Sedan
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.5L HSC/CFI Testing
>>
Wiring Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams

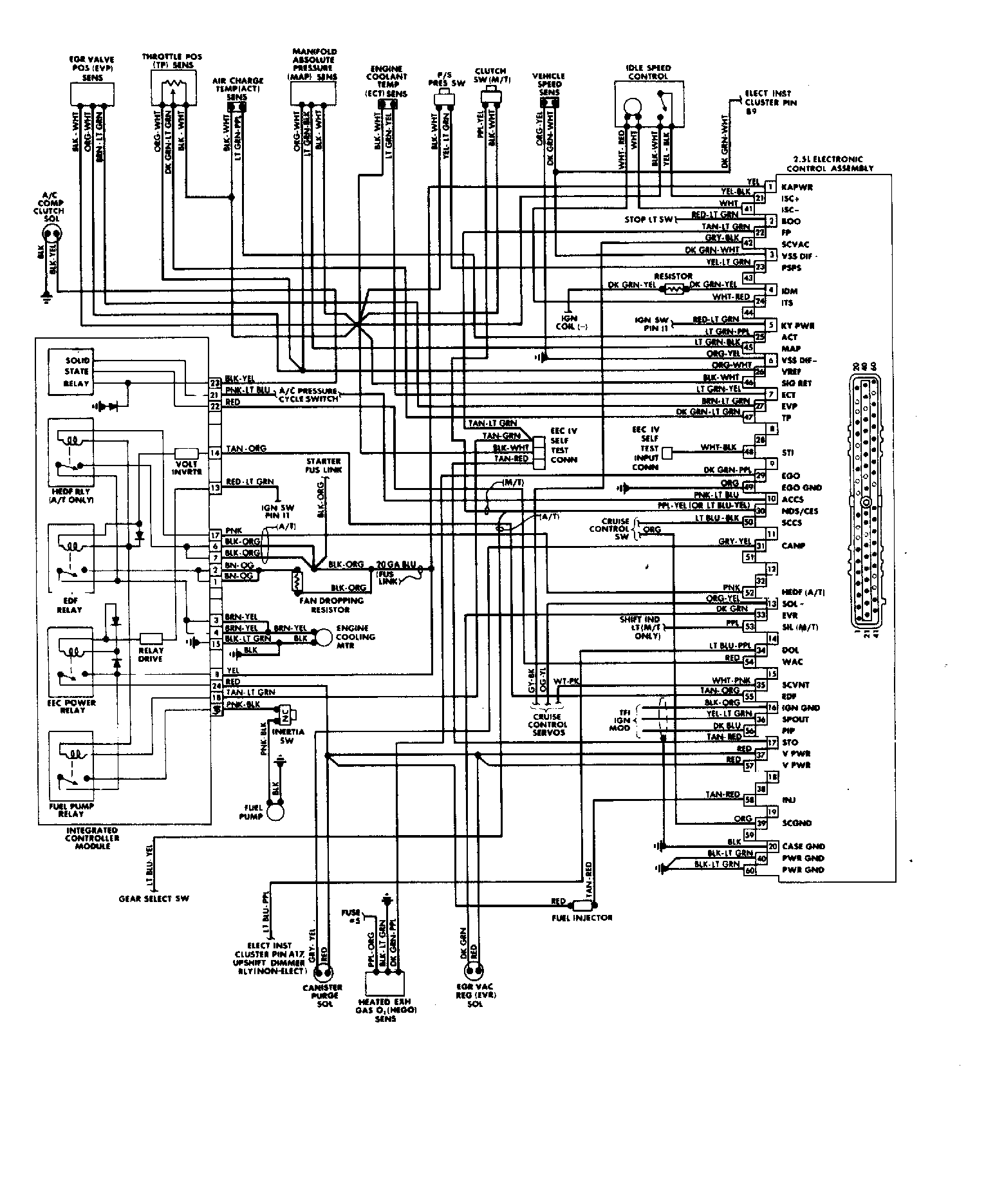

Fig 1: 2.5L HSC/CFI EEC-IV Wiring Diagram

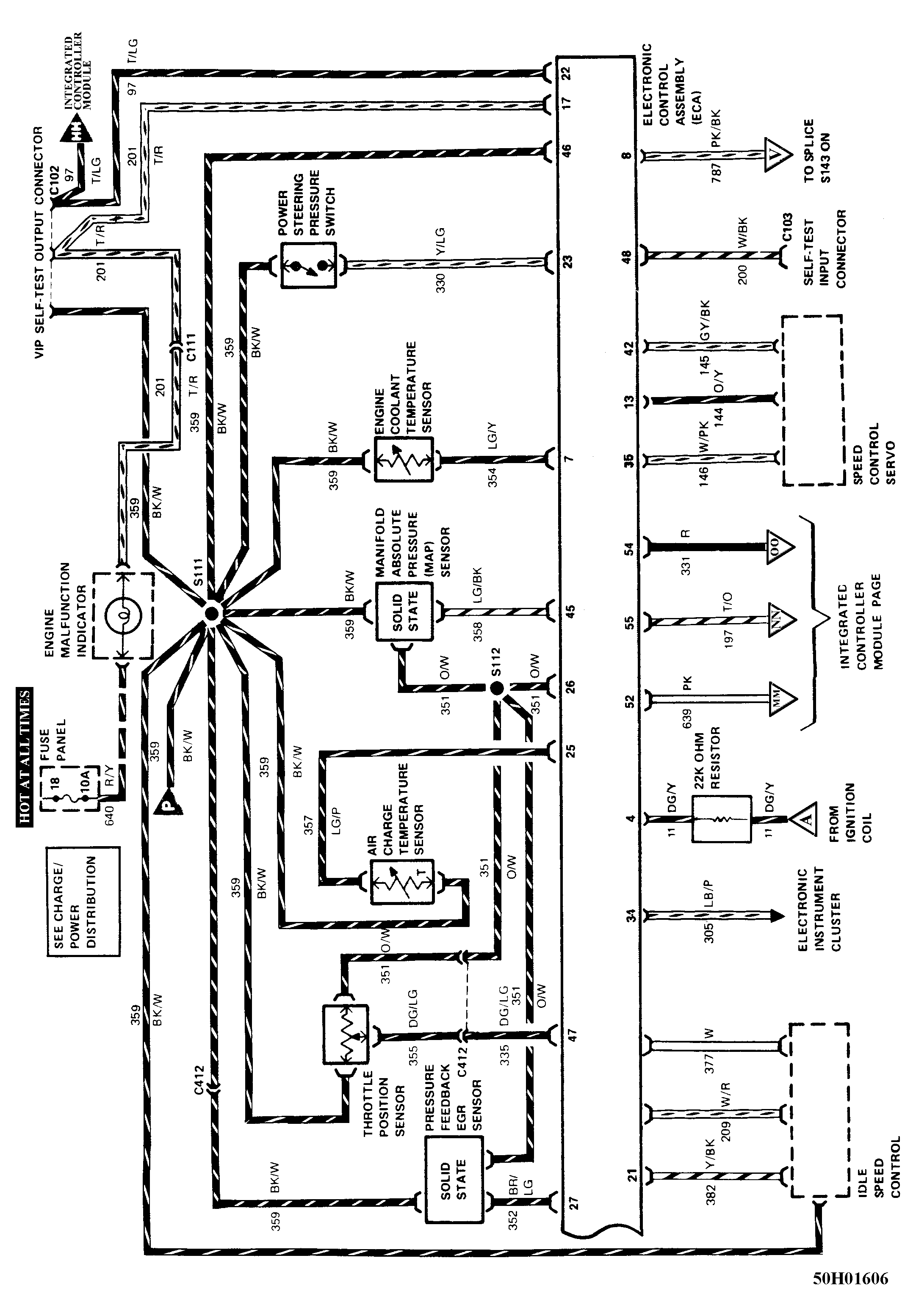

Fig 2: Electronic Engine Control (2.5L) Print For Best Results
