M/T Technical Data

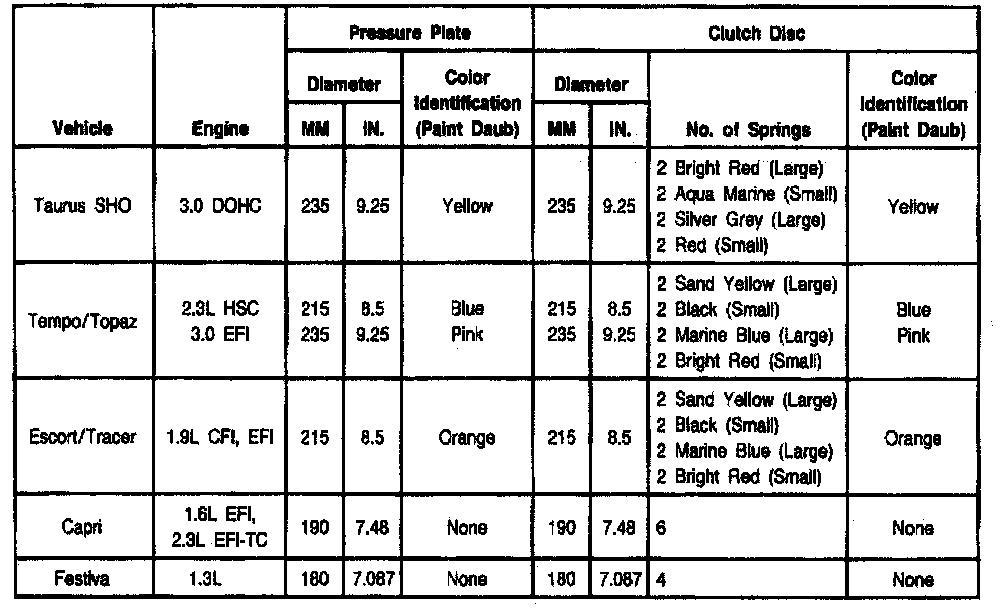

MTX III 5-spd M/T, Clutch/Pressure Plate:

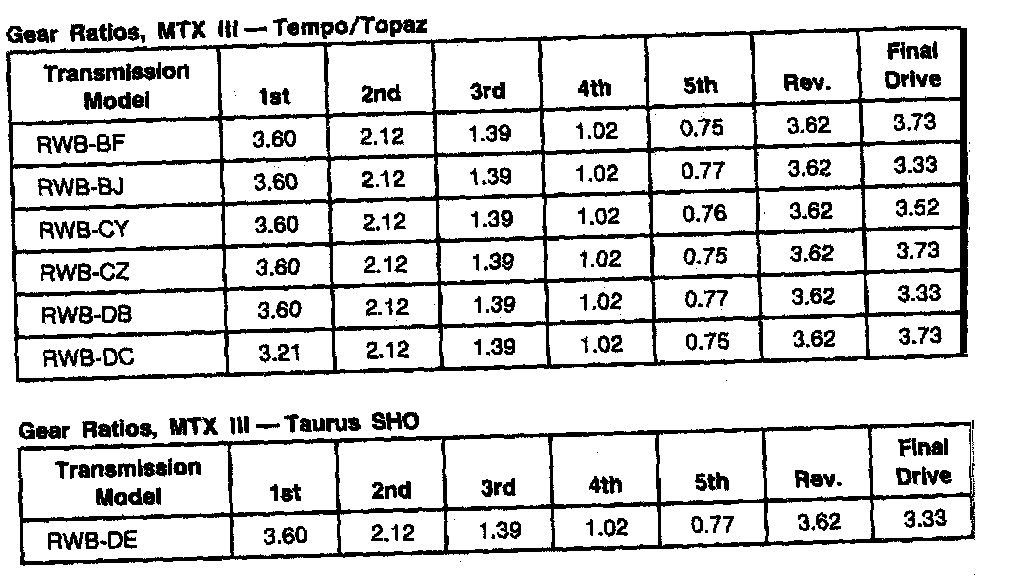

MTX III 5-spd M/T, Gear Ratios (Tempo/Topaz) (Taurus):

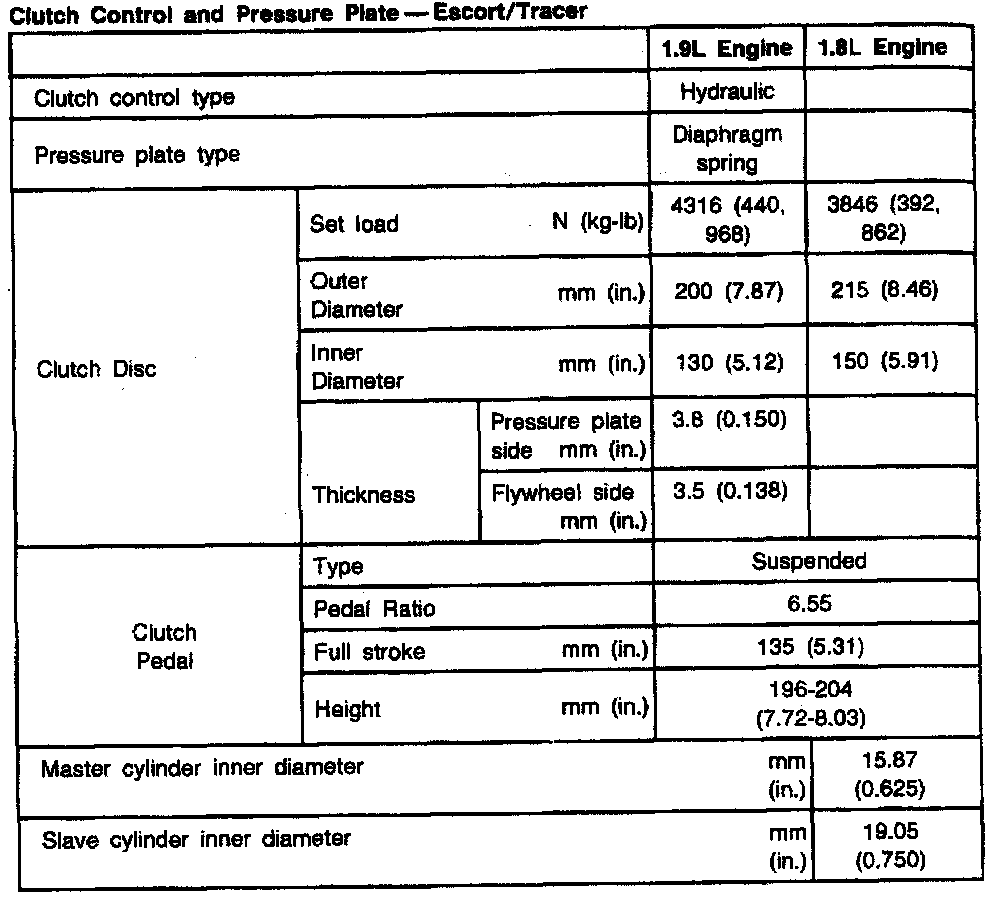

MTX III 5-spd M/T, Clutch Control/Pressure Plate (Escort):





MTX III 5-spd M/T, Gear Ratios (Taurus/Sable):
