No Blower, Ign. In Run, Engine Warm, Auto Mode

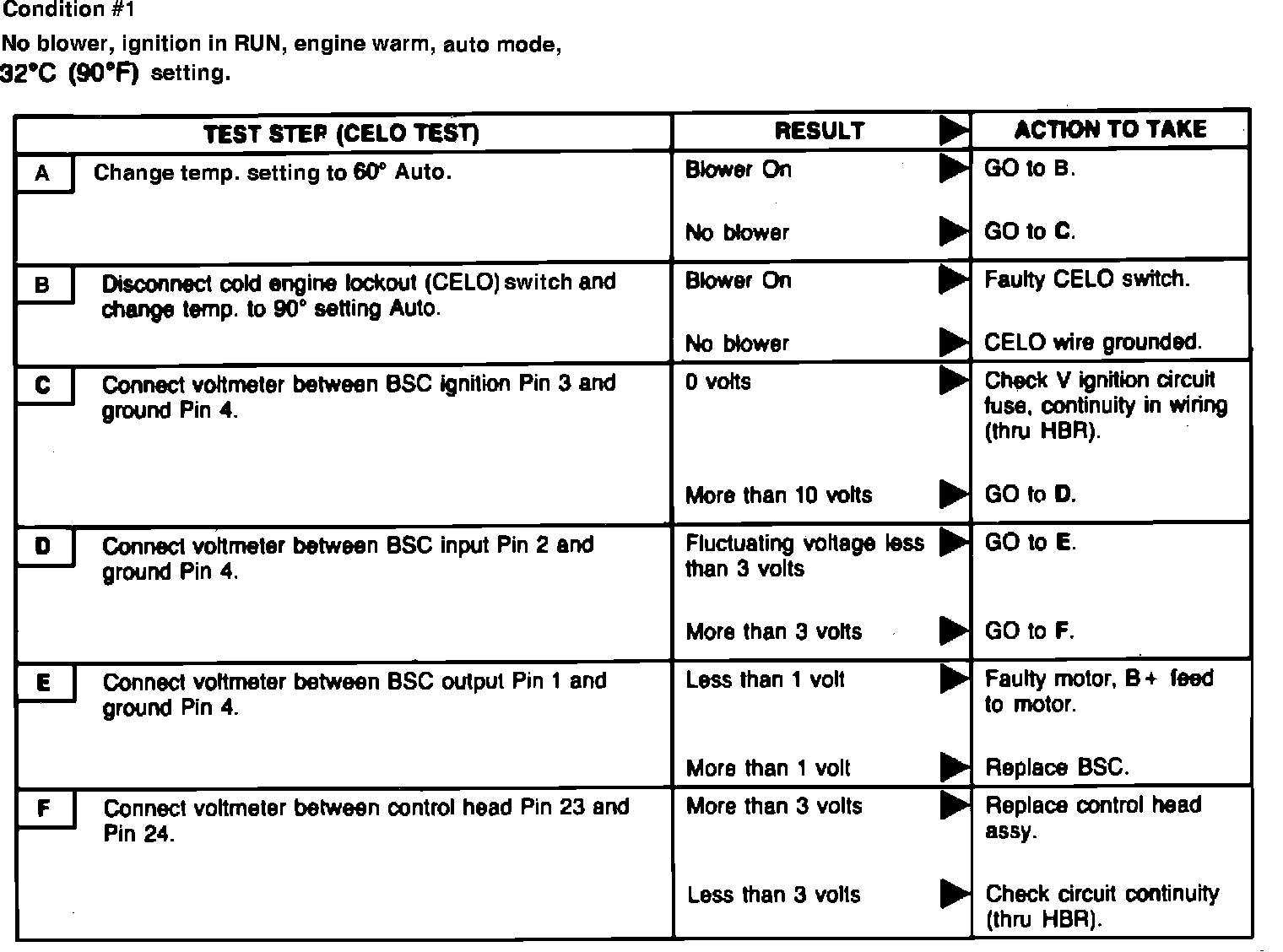

Fig. 64 No Blower, Ign. In Run, Engine Warm, Auto Mode:
