Automatic Transaxle

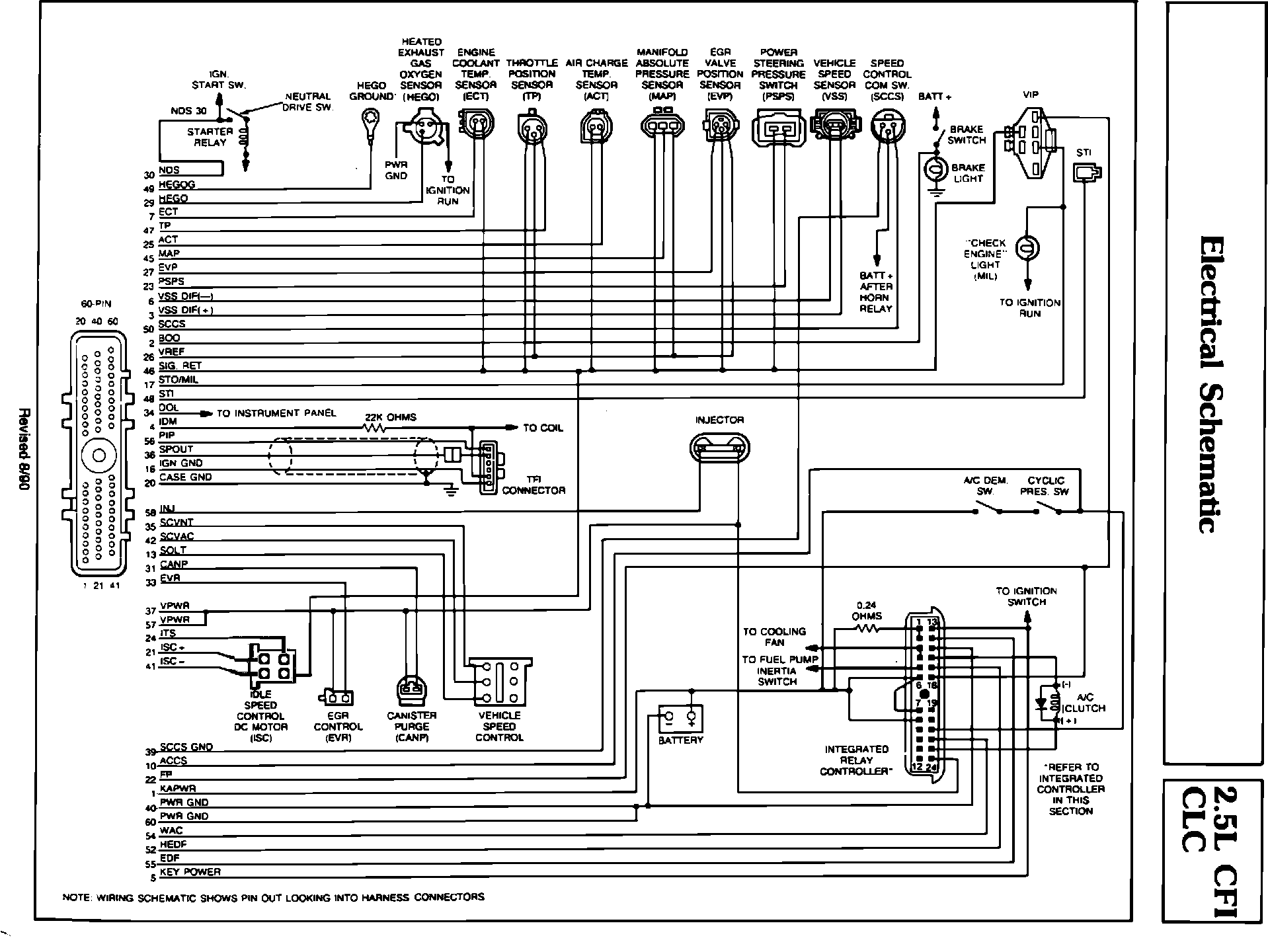

Wiring Schematic - EEC-IV System:
Pin Usage - EEC-IV Module Connector:
The Electronic Control Assembly (ECA) is the Cooling Fan Control Module.
