M/T Torque Data

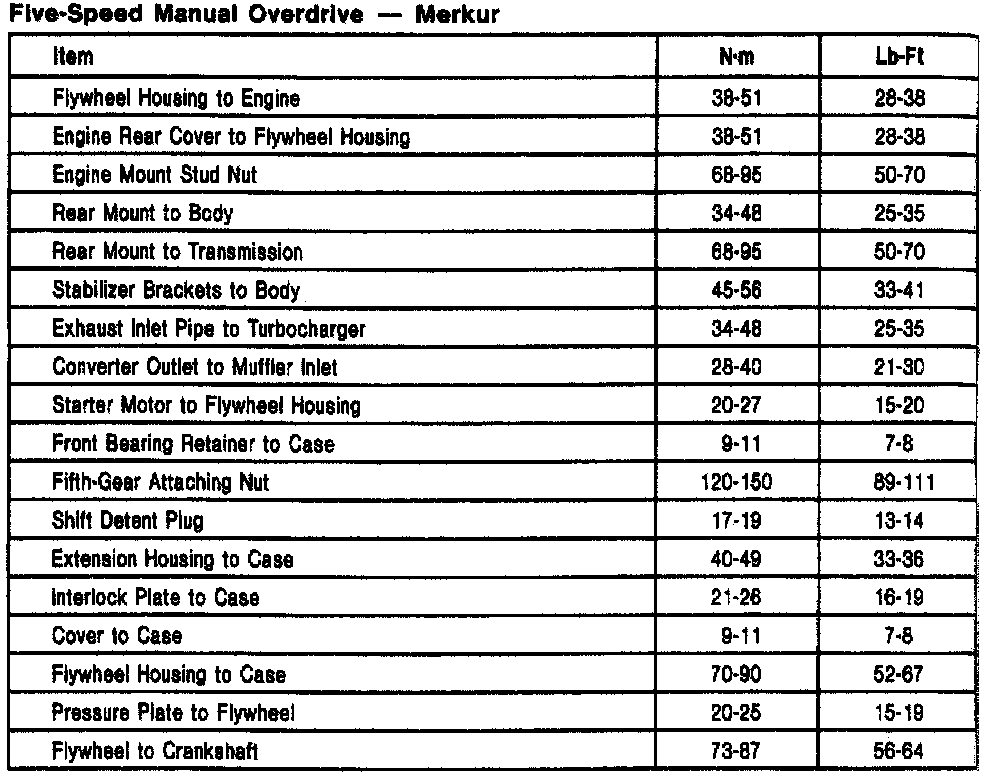

T5OD 5-spd M/T, Flywheel/Pressure Plate:

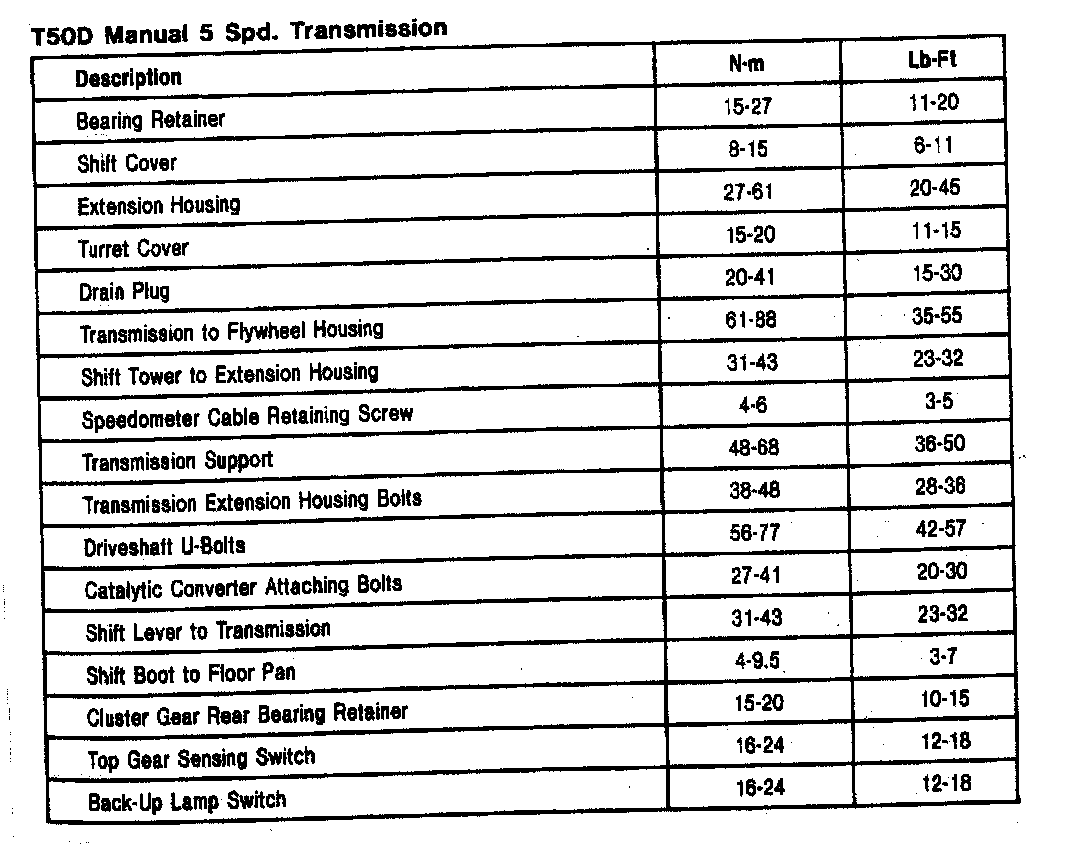

T5OD 5-spd M/T, Transmission Torque:

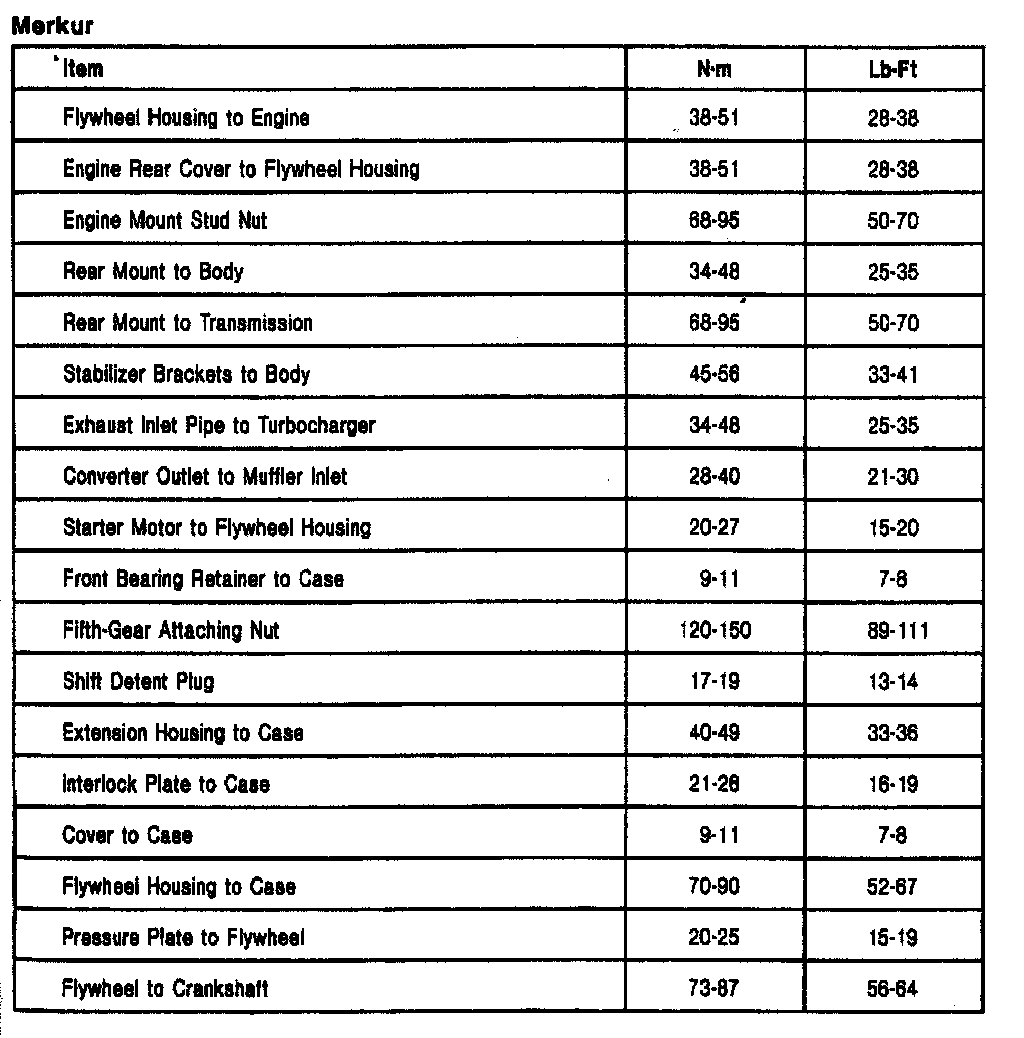

T5OD 5-spd M/T, Clutch Torque (Merkur):





T5OD 5-spd M/T, Transmission Torque:
