Home >> Ford >> 1987 >> Bronco II 4WD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Selector Valve >> Wiring Diagrams

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Wiring Diagrams

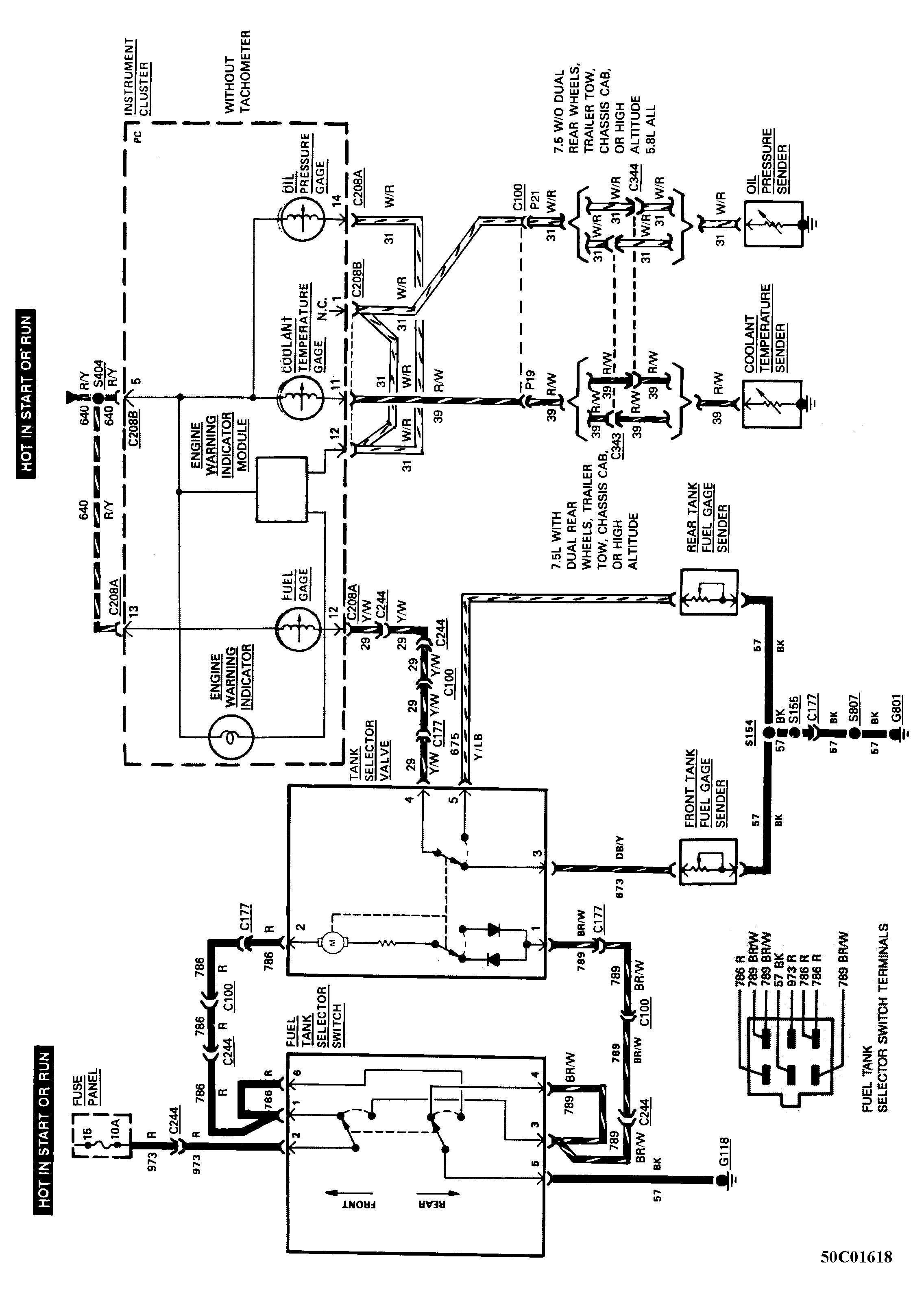

Fig 1: Dual Fuel Tank System Wiring Diagram

G50C01618

Courtesy of FORD MOTOR CO.
