Fuel Pump Relay

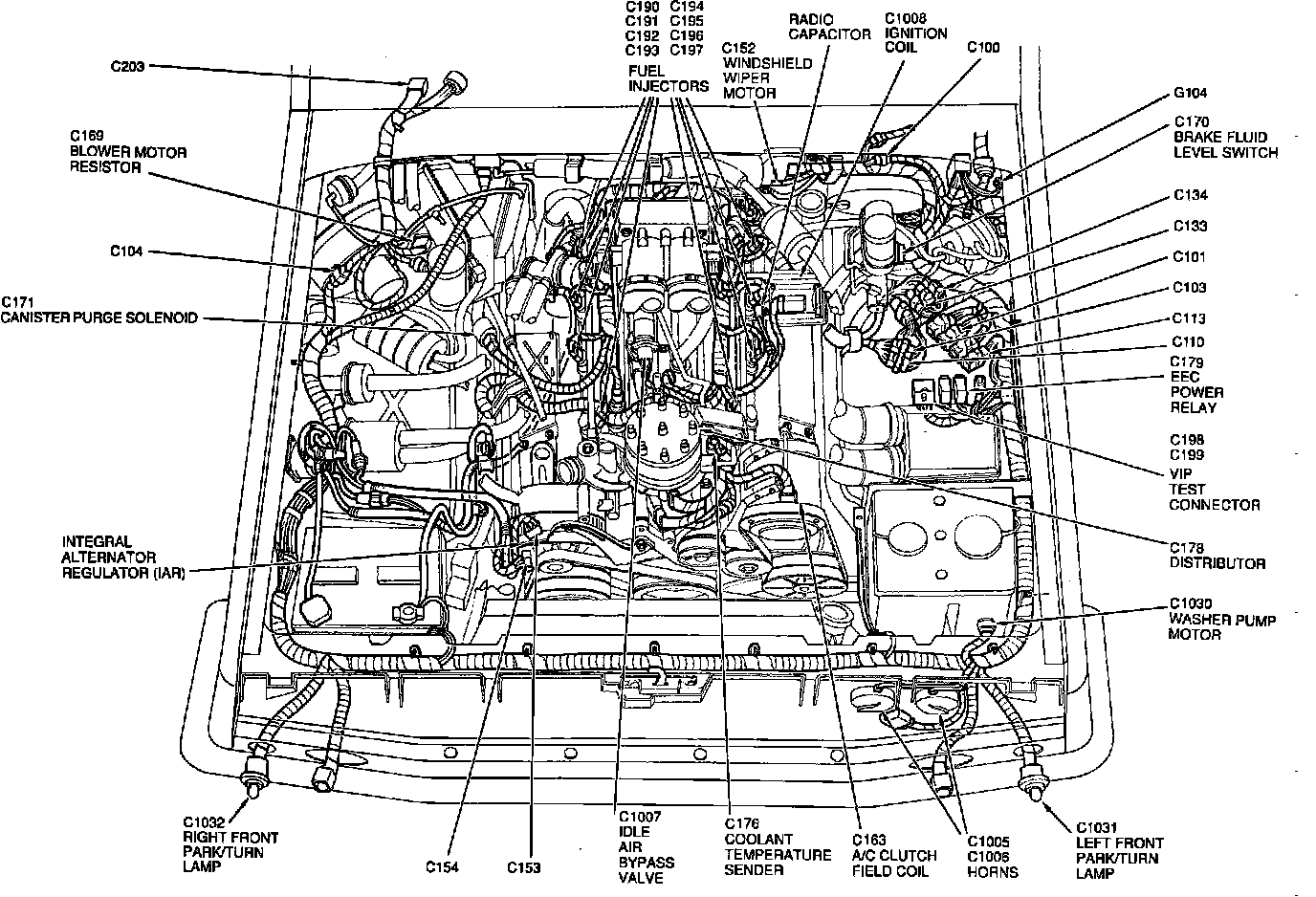

Engine Compartment Components.:




LH Side Of Engine Compartment, On Relay Bracket. Fuel pump relay is next to the EEC Relay.

Applicable to: 4.9L/6-300

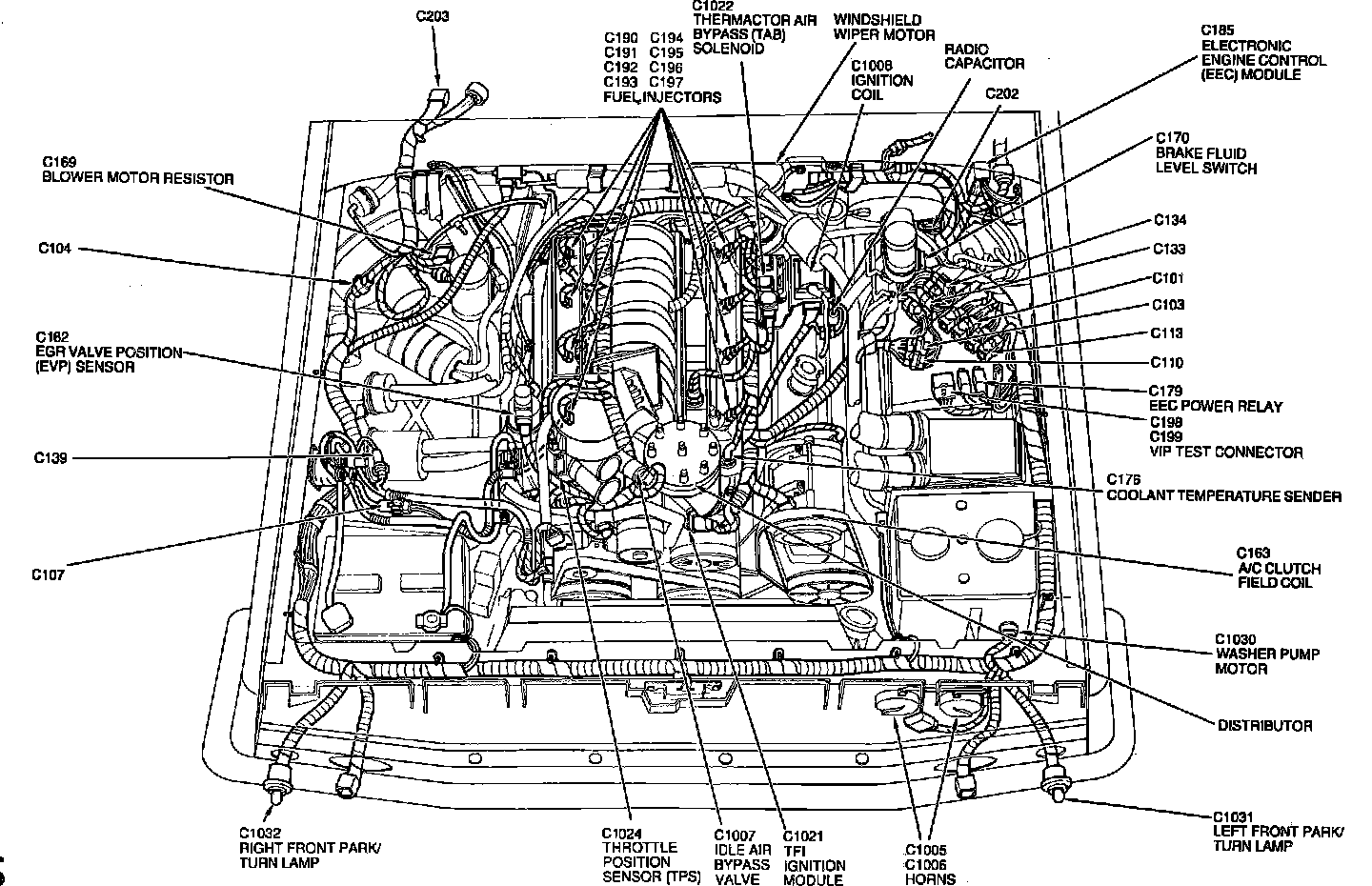

Engine Compartment Components.:




LH Side Of Engine Compartment, On Relay Bracket. Fuel pump relay is next to the EEC Relay.

Applicable to: 5.0L/V8-302 & 5.8L/V8-350

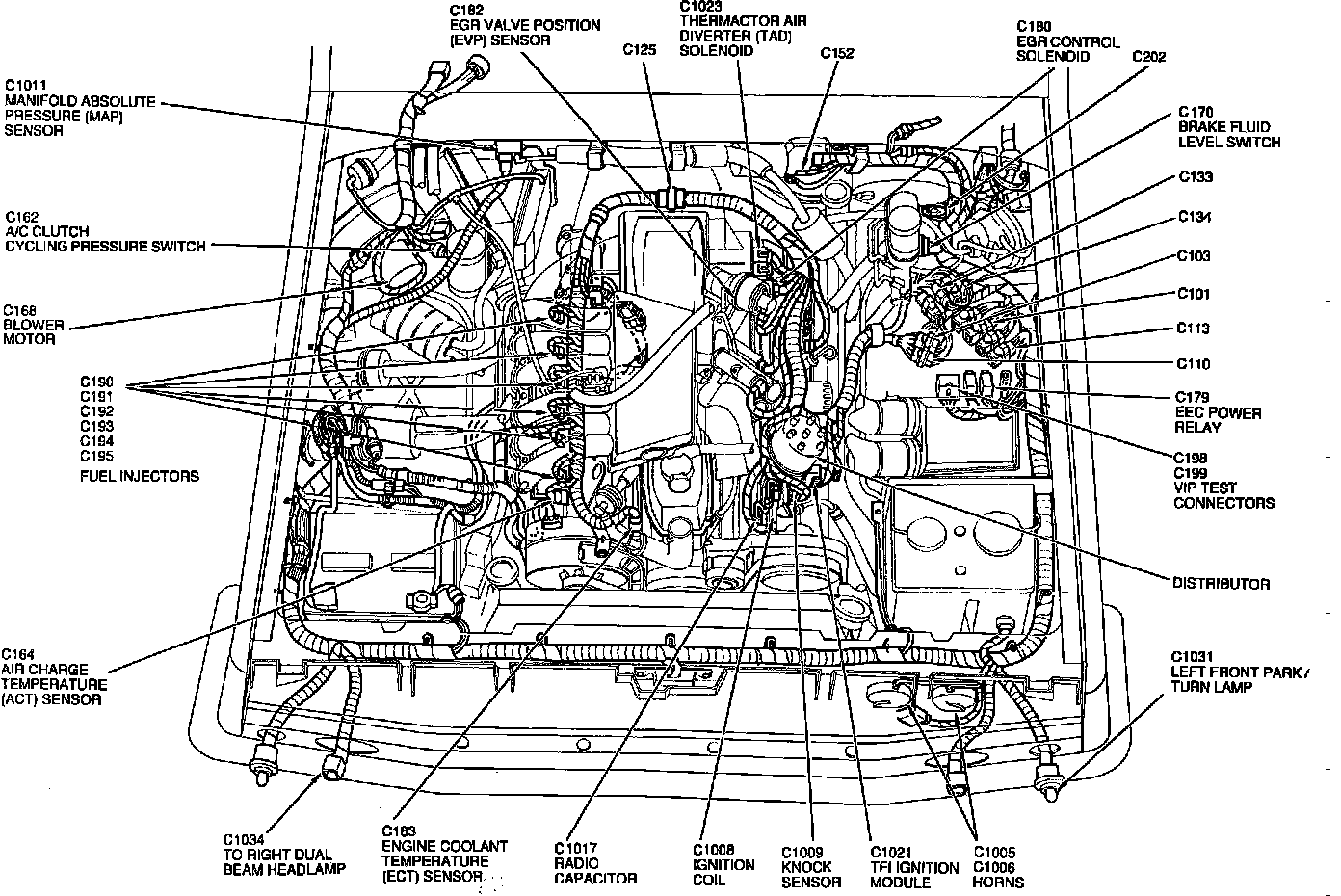

Engine Compartment Components.:




LH Side Of Engine Compartment, On Relay Bracket. Fuel pump relay is next to the EEC Relay.

Applicable to: 7.5L/V8-460
