Control Units

CONTROL UNITS LOCATION

Component Location
Elect. Engine Control (EEC-IV) Module Under left side of dashboard above wheelwell.
Illuminated Entry Module On back of "B" pillar.

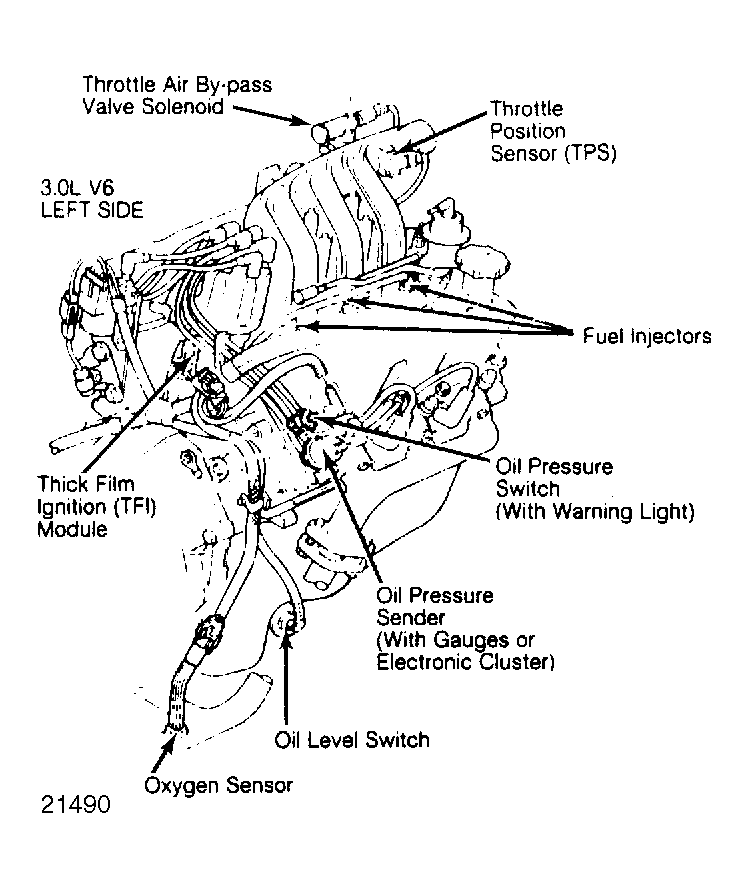

Thick Film Ignition (TFI) Module On bottom of distributor. See Figure.
Trailer Tow Relay Module Behind left rear wheelwell.
Tripminder Module Behind dashboard to right of steering column.
