Torque Specifications

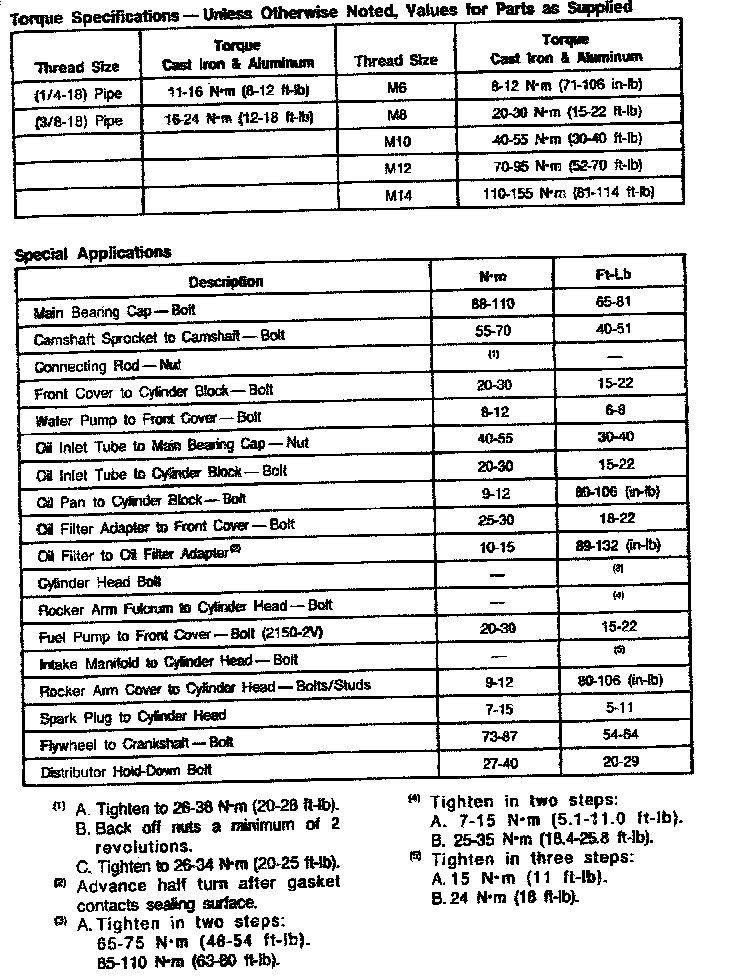

3.0L Engine Mechanical Torque:

Torque Specifications

3.0L Engine Mechanical Torque:

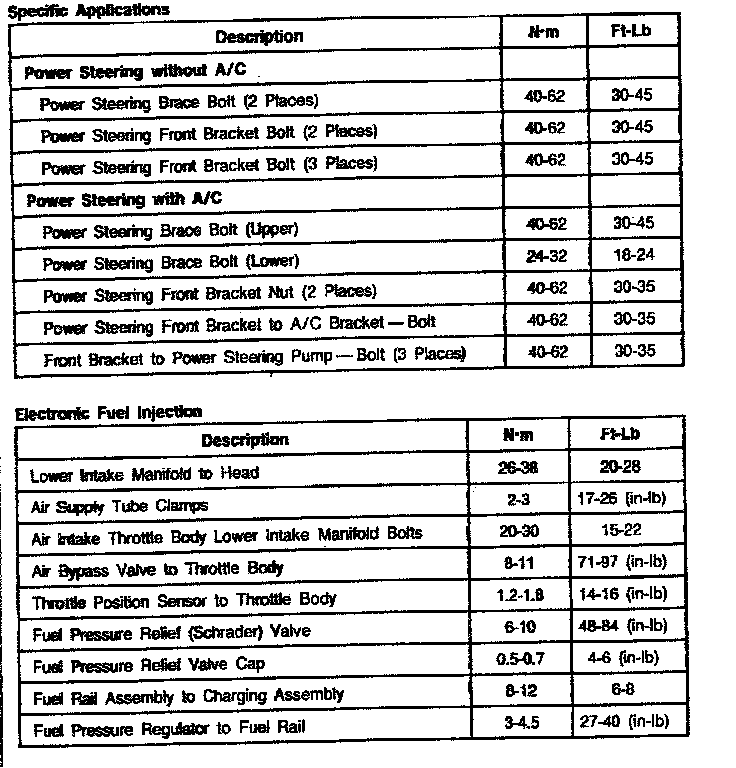

3.0L Engine Torque Cont.:

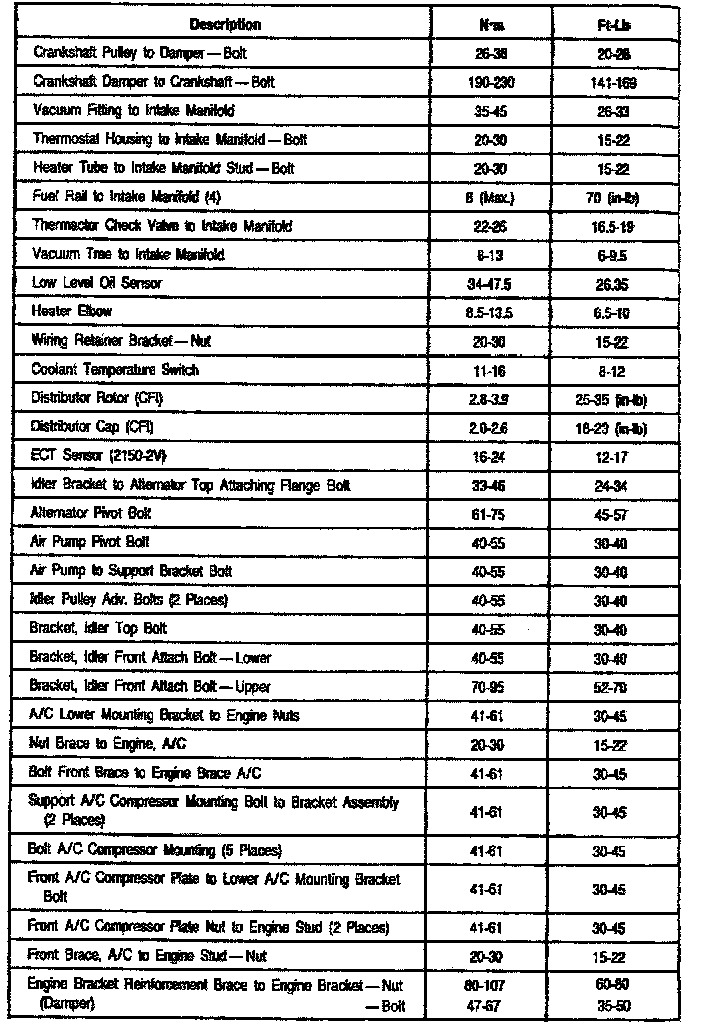

3.0L Engine Torque Cont.:

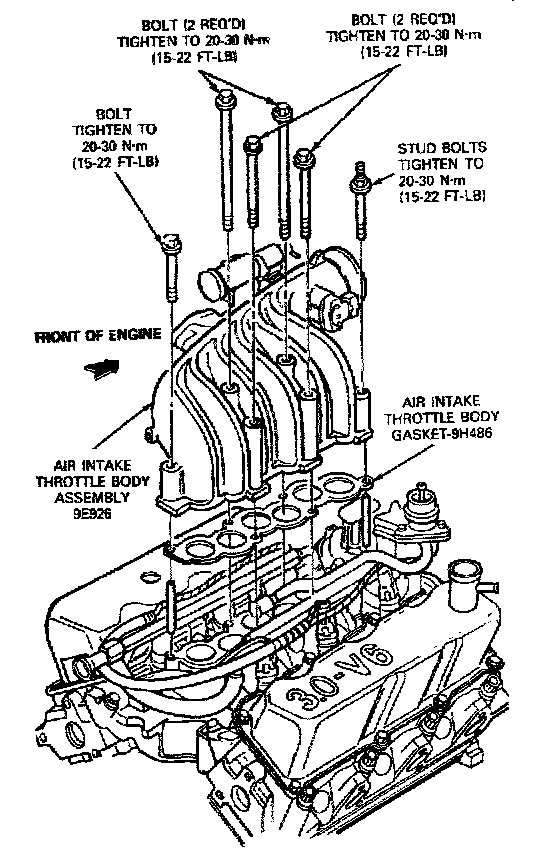

3.0L Upper Intake Manifold:

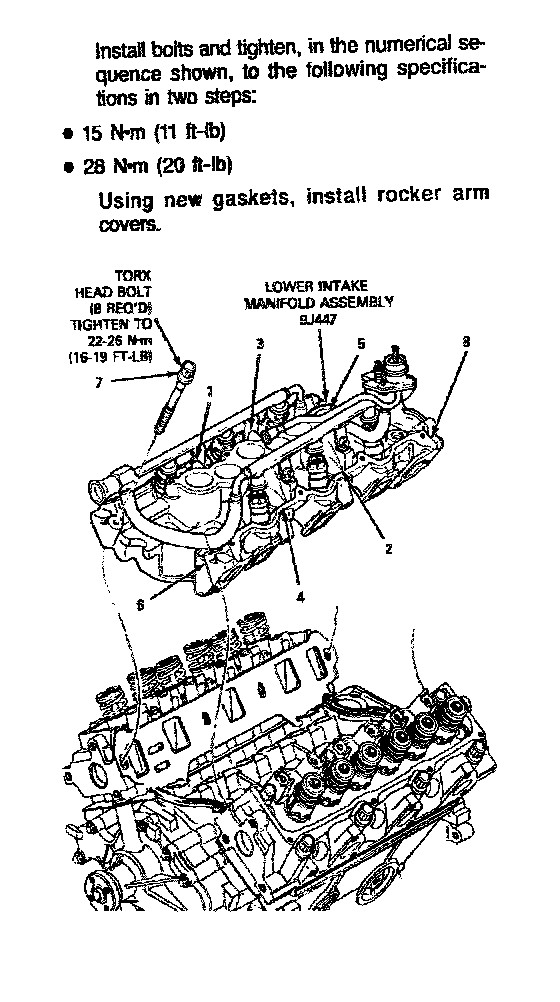

3.0L Lower Intake Manifold Torque & Sequence:

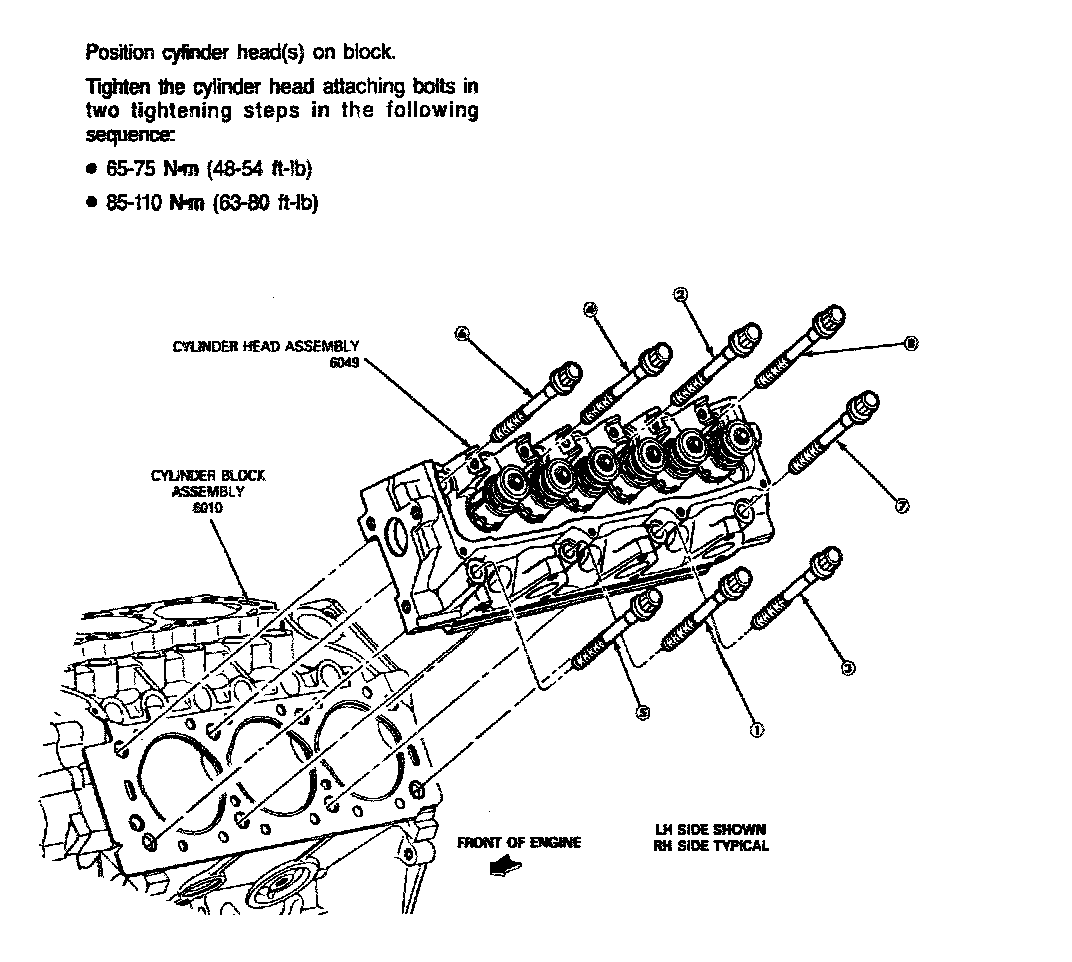

3.0L Cylinder Head Torque & Sequence:
