KF - Idle Speed Control-DC Motor/Idle Tracking Switch Assembly
>>

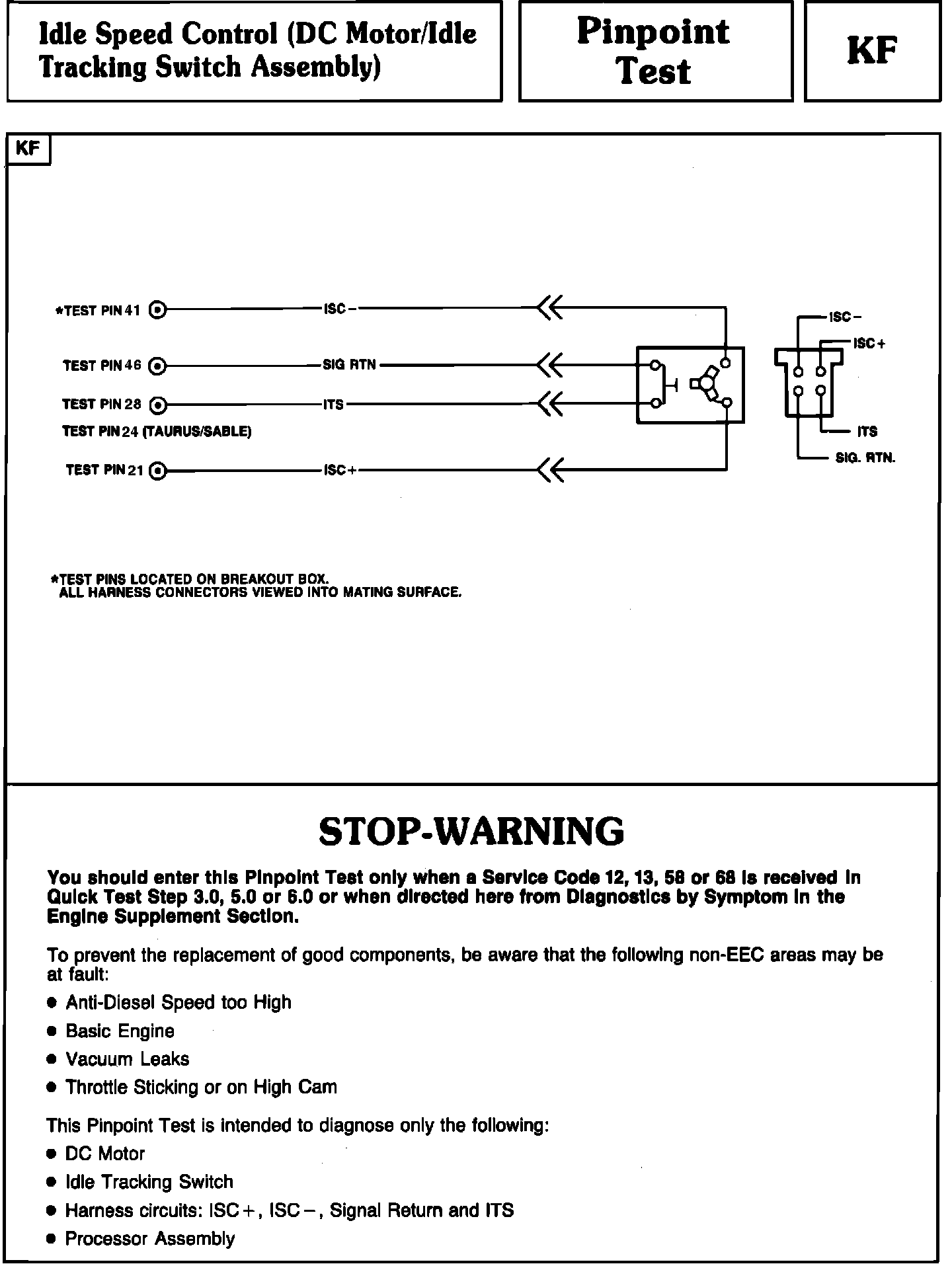

KF - Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
KF - Wiring Diagram
