Fuel Cut-Out Switch: Locations

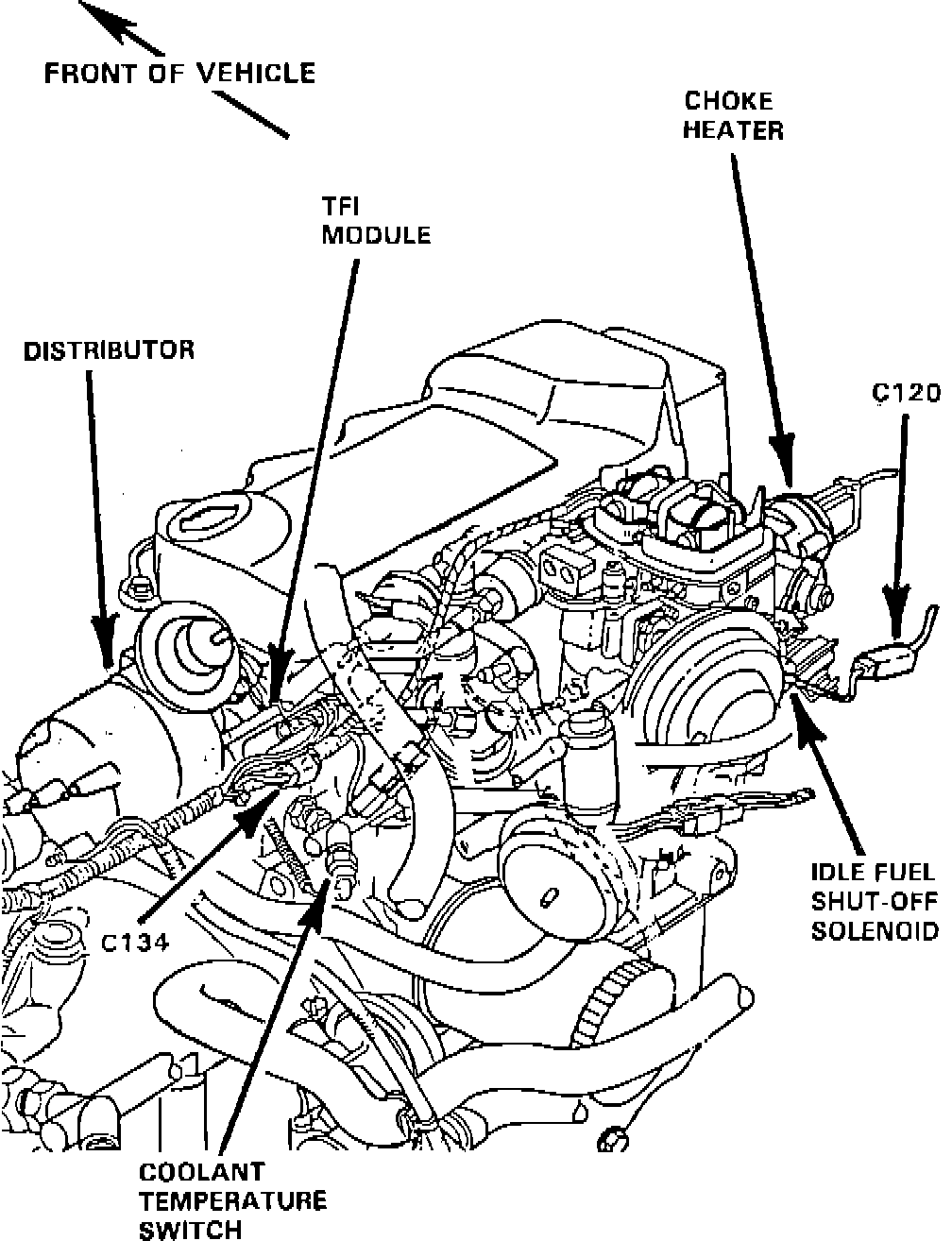

Engine rear components.:




Base Of Carburetor

Applicable to: 1986 Escort, EXP & Lynx less EFI engine
