Engine Control Module

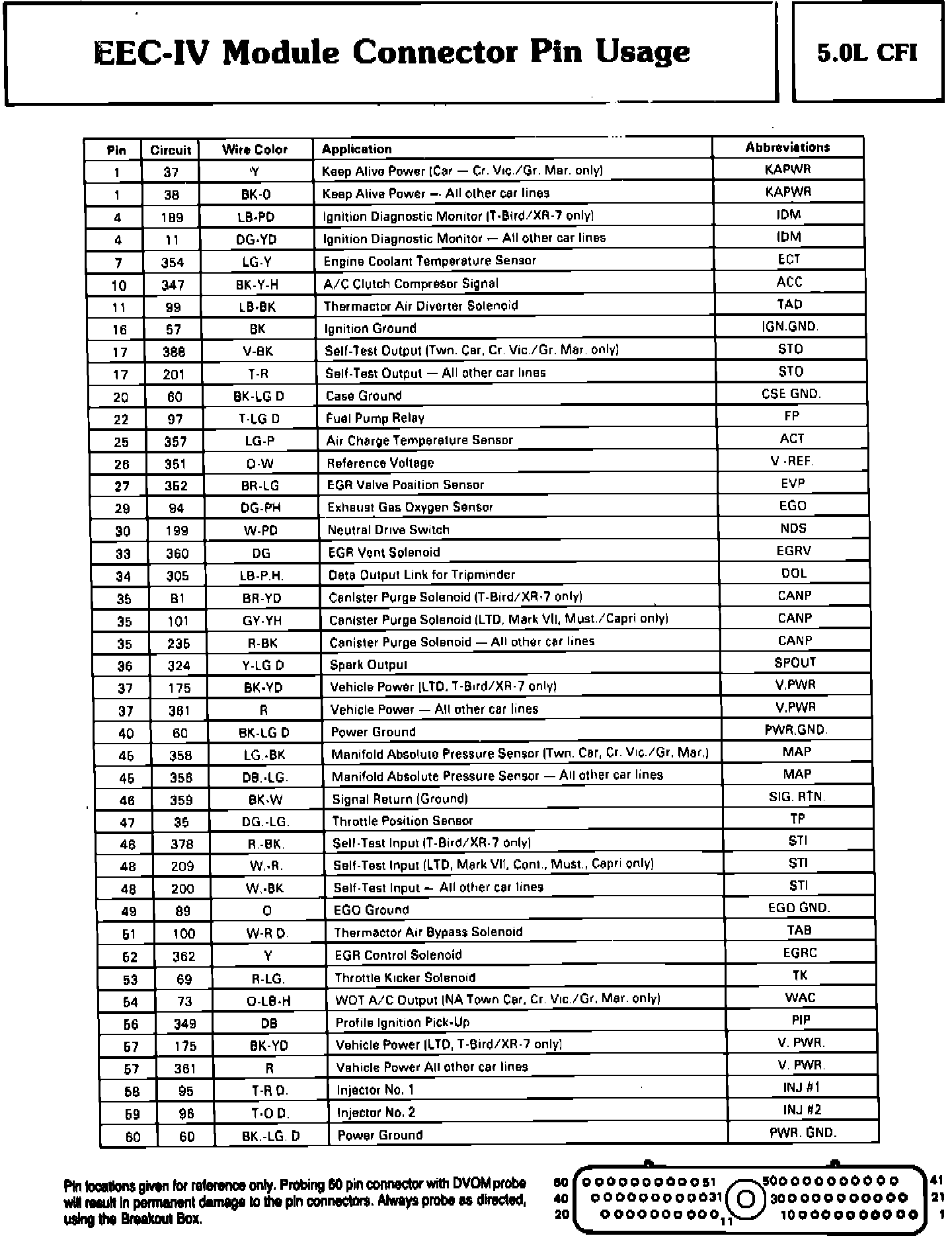

Fig. 165 EEC-IV module connector pin usage. 1985 V8-302 W/CFI:
*** UPDATED BY TSB #85428
