Torque Specifications

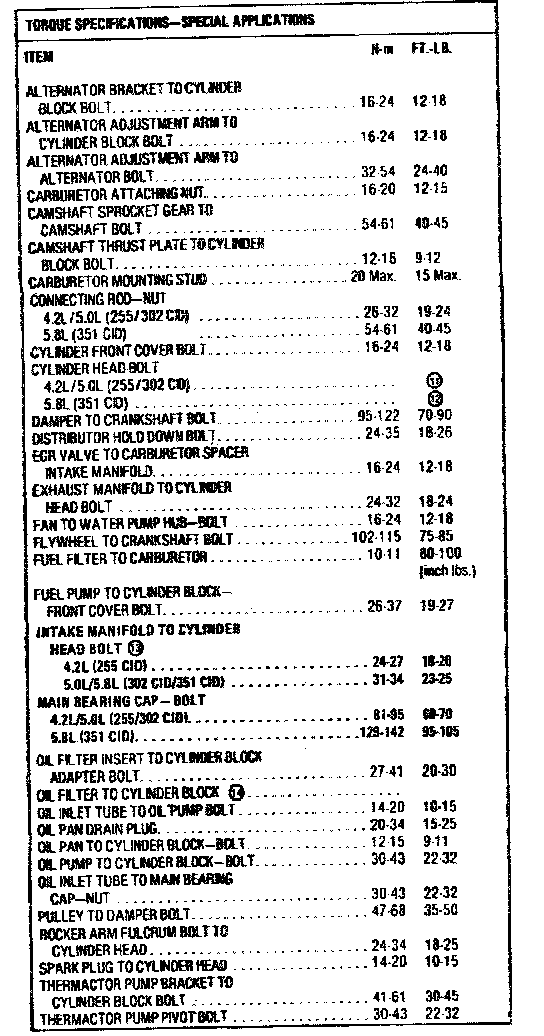

5.0L/5.8L Engine Mechanical Torque:

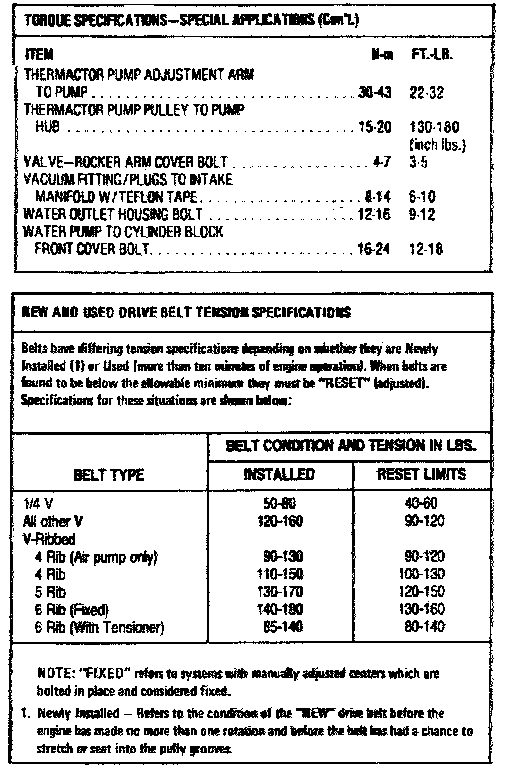

5.0L/5.8L Engine Torque Cont.:





5.0L/5.8L Engine Torque Cont.:

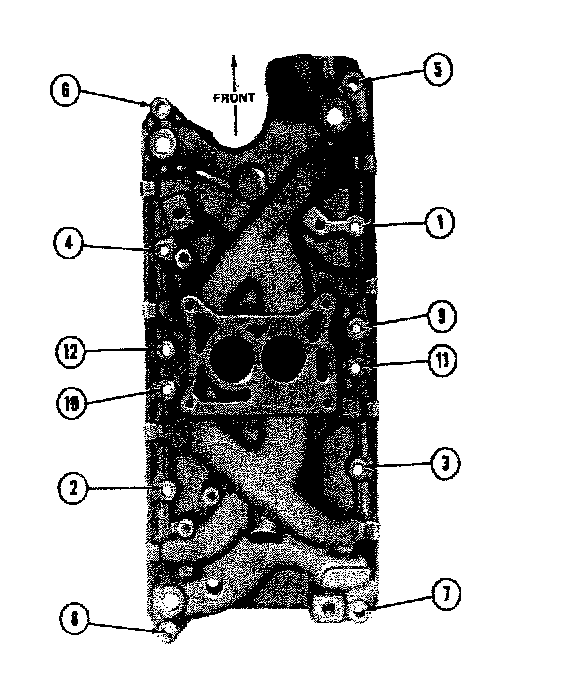

5.0L/5.8L Intake Manifold Sequence:





5.0L/5.8L Cylinder Head Sequence:
