General Engine Specifications

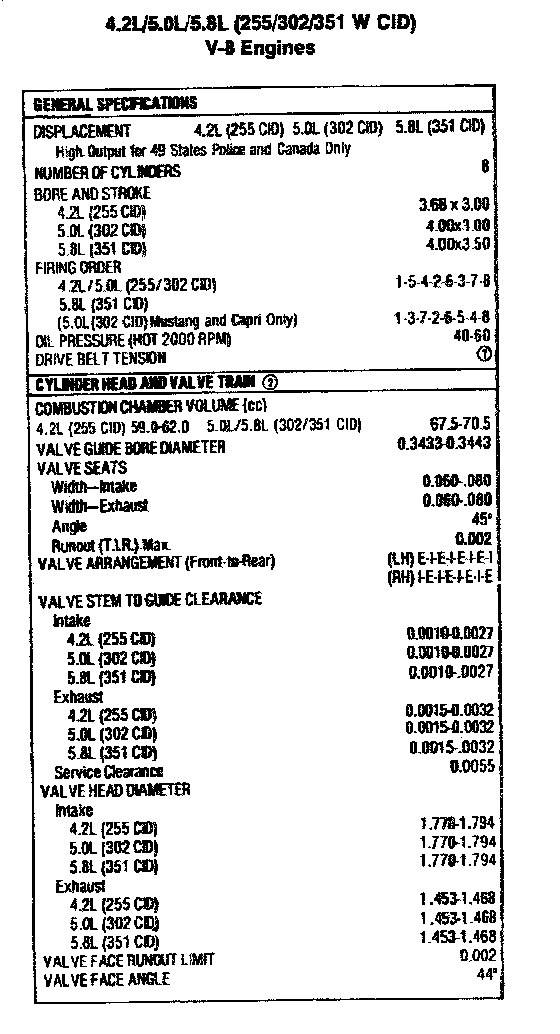

5.0/5.8L Engine Mechanical Data:

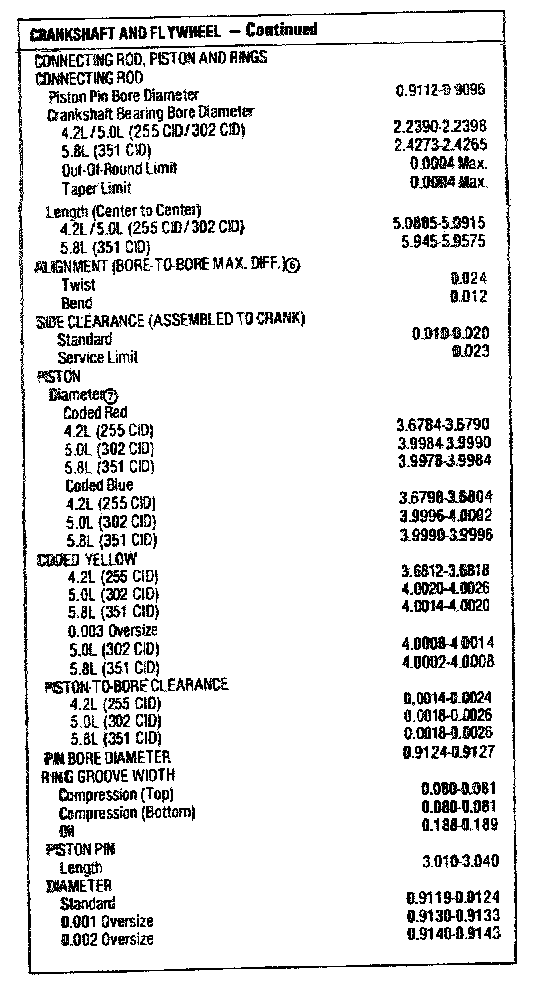

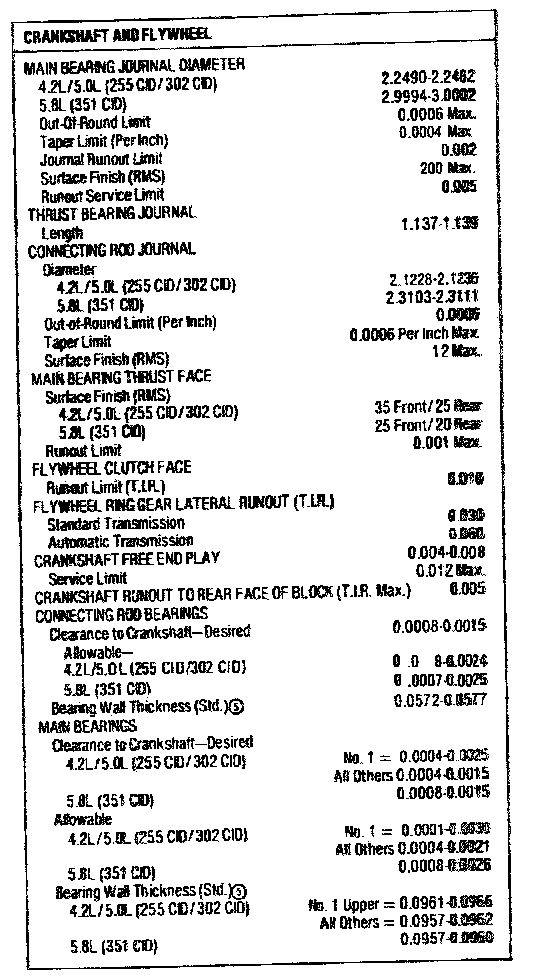

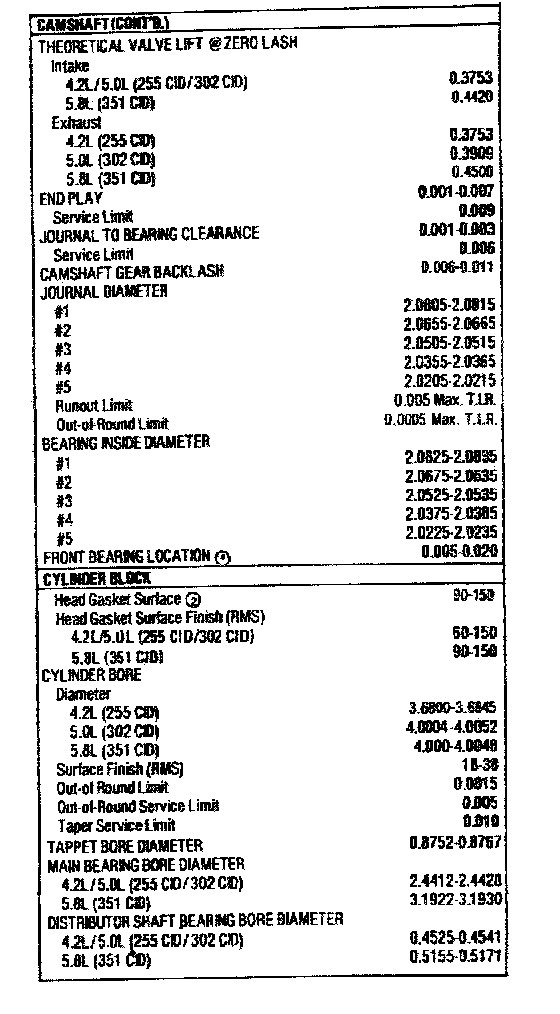

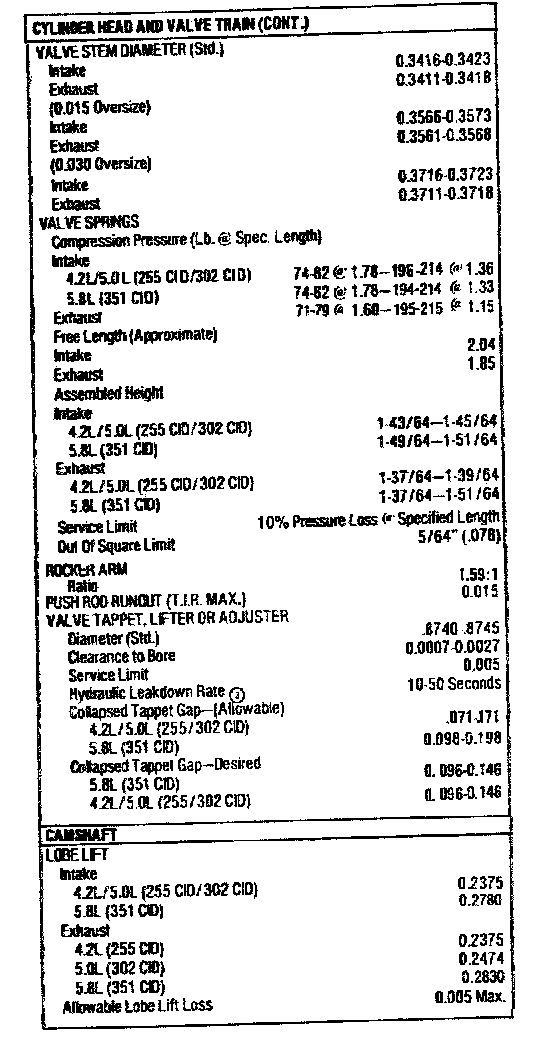

5.0L/5.8L Engine Mechanical Cont.:





5.0L/5.8L Engine Mechanical Cont.:





5.0L/5.8L Engine Mechanical Cont.:





5.0L/5.8L Engine Mechanical Cont.:





5.0L/5.8L Engine Mechanical Cont.:
